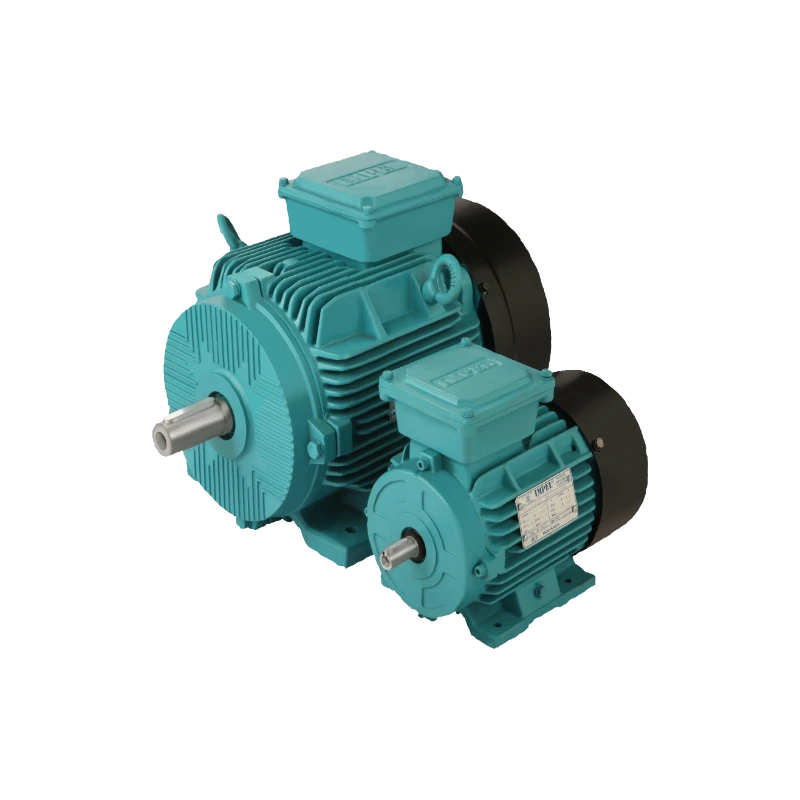

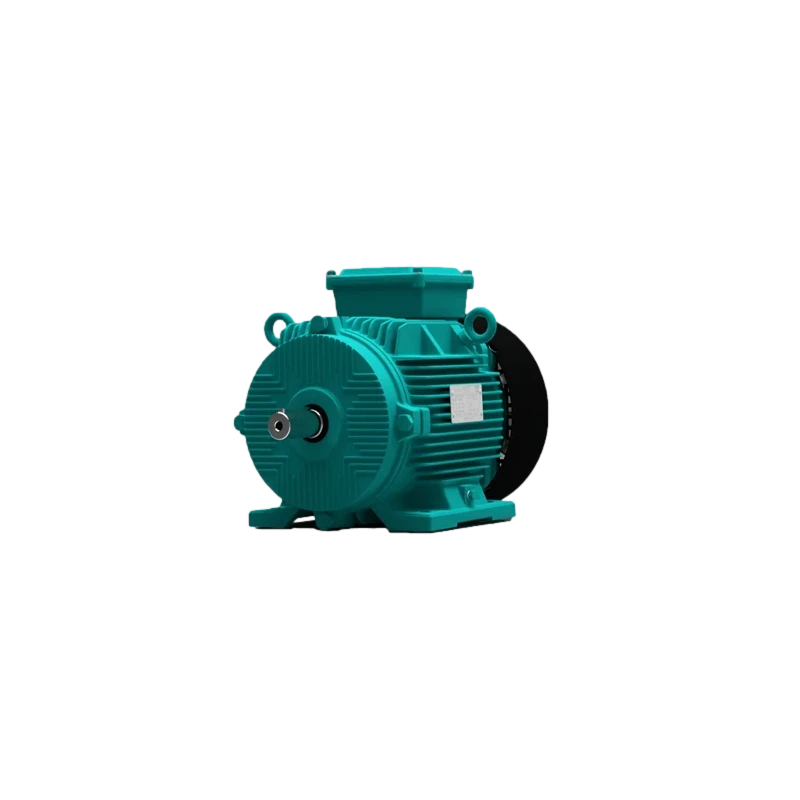

Impel 10HP 4 Pole Flange Mounting IE3 Induction Motor Frame Size 132M
Specifications
| Frequency | 5OHZ+-5% |
|---|---|
| Warranty | 2 years |
| Brand | Impel Motors |
| Phase | 3 Phase |
| Voltage (V) | 415+-10% |
| Body Material | Cast Iron |
| Mounting | Flange mounting (B5) |
| Protection Type | IP55 |
| Altitude | 1000M above sea level |
| Power Rating (kW) | 7.5 kW |
| Power (HP) | 10 HP |
| Motor Type | TEFC Squirrel Cage A C Induction Motor |
| Ambient Temperature (ºC) | 50 ºC |
| Rated Speed (RPM) | 1440 RPM |
| Series | IE3 Premium Efficiency |
| Power Factor | 0.84 |
| No. of Poles | 4 |
| Duty Type | S1 |
| Shaft Dia (mm) | 38 mm |
| Class of insulation | F |
| Frame Size (ISI) | 132M |
| Full Load Ampere At 415V | 13.75 |
| Rated Torque (Kgm) | 5.07 Kgm |
| STG Current % FLC | 700 |
| STG Torque % FLT | 220 |
| POT Torque % | 250 |
| Temperature rise | Limited to class B |
| FL Efficiency (%) IE3 | 0.904 |
Key Features
- High Efficiency and Long Life
- High Torque Level
- High Power Factor
Product Description
Impel 10HP 4 Pole Flange Mounting IE3 Induction Motor Frame Size 132M From Impel used for Industrial Purposes. Envmart is a well-known e-commerce platform for a qualitative range of Impel General Purpose Motors For Industrial or domestic Applications. All Impel Motors Are manufactured using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field of Industrial and Manufacturing Units
- Low Temperature Rise
- Easy maintenance
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The motor has a power rating of 7.5 kW, which is equivalent to 10 HP.
The rated speed of this model is 1440 RPM.
This unit features flange mounting (B5).
It operates at a voltage of 415V with a tolerance of ±10%.
The motor is rated IP55 for protection against dust and water ingress.
The motor operates at a frequency of 50 Hz with a tolerance of ±5%.
The body of the motor is made from cast iron.
This model can operate in ambient temperatures up to 50 ºC.
The insulation class for this model is Class F.
The power factor of this induction motor is 0.84.
The rated torque is 5.07 Kgm.
It is suitable for operation at altitudes up to 1000M above sea level.
