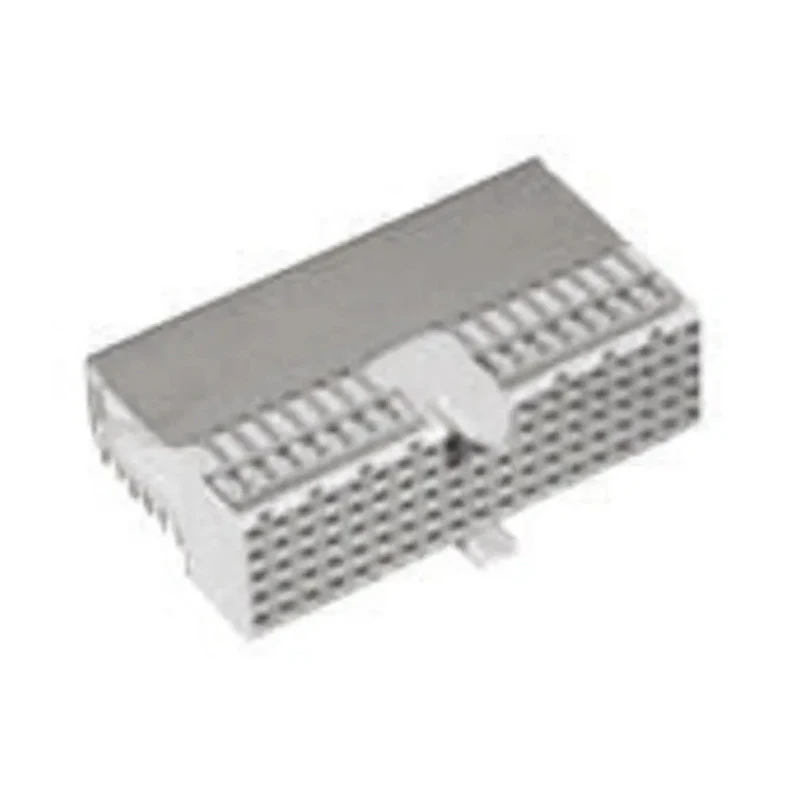

TE Connectivity Z-PACK HM 2 mm Pitch Hard Metric Type A Backplane Connector, Right Angle Female, 22 Column, 5 Row 100147-1
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V ac |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 1.5A |
| Model | 100147-1 |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | Z-PACK HM |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 5 |
| Number of columns | 22 |
| Pitch | 2mm |
| Pay online using | Or choose to pay later via bank transfer |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 110 |
| Contact Gender | Female |
| Connector Gender | Female |
| Backplane Connector Type | Hard Metric Type A |
Key Features
- Designed for a 2 mm pitch Hard Metric Type A interface suitable for backplane applications.
- Features a right angle female connector with 22 columns and 5 rows totaling 110 contacts.
- Supports a maximum current rating of 1.5 A and voltage rating of 500V AC.
- Constructed with polybutylene terephthalate housing for durable performance under varied temperatures.
- Contact materials are phosphor bronze plated with gold over nickel for reliable conductivity and corrosion resistance.
- Mount type is through hole with solder termination ensuring secure PCB connections.
- Operating temperature range from -55°C to 125°C for industrial-grade reliability.
- Series includes Z-PACK HM connectors designed for backplane and rack connector applications.
Product Description
TE Connectivity 100147-1 is a Z-PACK HM series backplane connector featuring a 2 mm pitch Hard Metric Type A interface. This right angle female backplane connector comes with 22 columns and 5 rows accommodating 110 contacts, ideal for high-density PCB backplane connections.
The connector is rated for 1.5 A current and supports voltages up to 500V AC, making it suitable for industrial and electronic applications requiring reliable power and signal transfer. The housing is made from polybutylene terephthalate, an UL 94V-0 polyester rated material, providing robust insulation and flame resistance.
Contacts are fabricated from phosphor bronze and plated with gold over nickel to enhance conductivity and corrosion resistance. The mount type is through hole with solder termination offering secure and stable PCB integration. This connector supports operating temperatures ranging from -55°C to 125°C, assuring performance in harsh environments.
The Z-PACK HM connector system is designed to interconnect free boards such as daughterboards or PCBs to fixed backplane boards, facilitating efficient electronic assembly in industrial, commercial, and manufacturing settings. This product is commonly used in electronic, power, and connector component applications where compact and reliable backplane interconnections are required.
Designed for the Z-PACK HM 2 mm pitch Hard Metric Type A interface. Right angle female connector with 22 columns and 5 rows, totaling 110 contacts. Current rating of 1.5 A and voltage rating of 500V AC. Polybutylene terephthalate housing for enhanced durability.
Phosphor bronze contacts with gold over nickel plating for optimal conductivity. Through hole mounting with solder termination ensuring robust PCB attachment. Wide operating temperature range from -55°C to 125°C. No additional standards or approvals included.
This TE Connectivity Backplane Connector is designed for rigorous industrial and electronic applications including manufacturing, assembly, testing, and rack-based equipment. Its modular design facilitates maintenance and upgrading of complex electronic systems.
Explore more from the TE Connectivity Z-PACK HM series and related connector products at EnvMart for high-quality, reliable electronic components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 1.5 A, making it suitable for various industrial and electronic applications.
It supports a maximum voltage rating of 500V AC, ensuring reliable power transfer in electronic systems.
The operating temperature range is from -55°C to 125°C, allowing it to function effectively in harsh environments.
This connector utilizes through hole mounting with solder termination, ensuring a secure attachment to PCBs.
The housing is made from polybutylene terephthalate, while the contacts are phosphor bronze plated with gold over nickel for enhanced conductivity.
It features a total of 110 contacts, arranged in 22 columns and 5 rows, facilitating high-density connections.
The pitch of this model is 2 mm, which is standard for Hard Metric Type A interfaces.
This connector has a right angle orientation, which is beneficial for space-constrained applications.
It is designed for backplane and rack connector applications, commonly used in electronic, power, and connector component settings.
This connector uses solder termination, ensuring a robust and stable connection to printed circuit boards.
The contacts are female, which is consistent with the connector's design for backplane connections.
The country of origin for this model is India, reflecting its manufacturing location.
