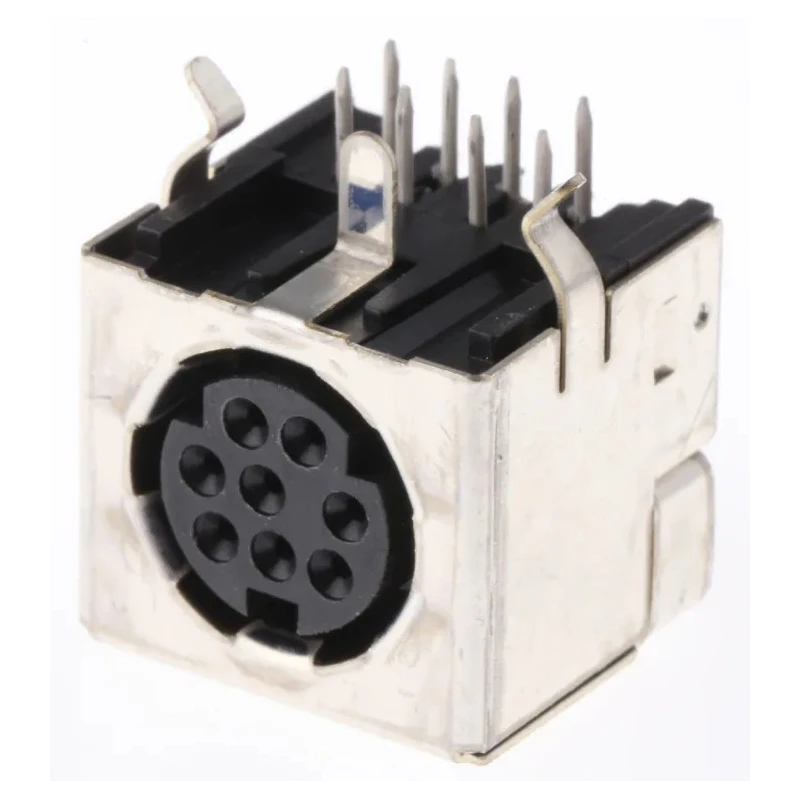

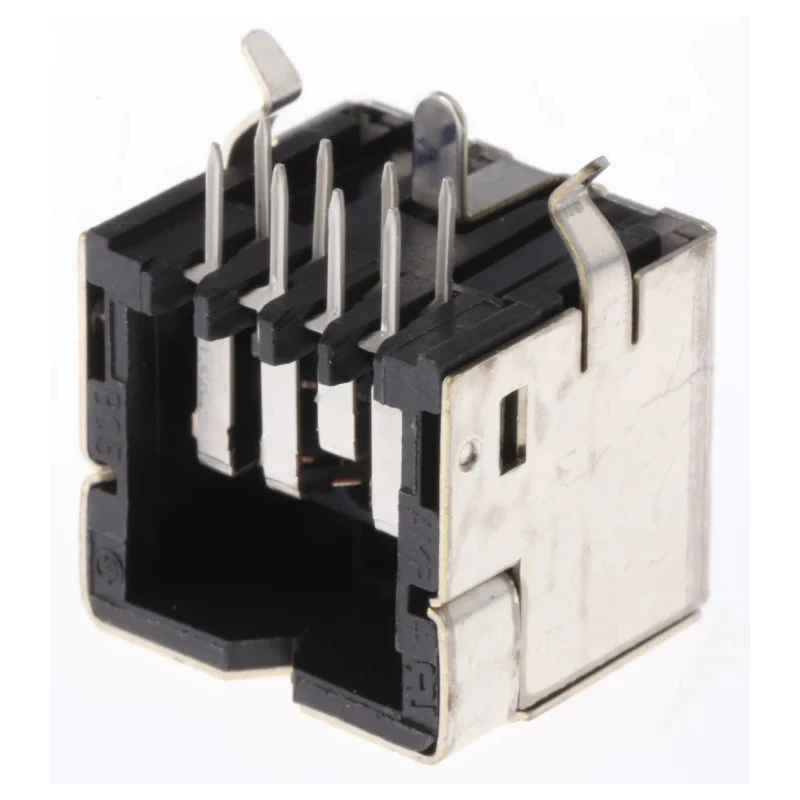

TE Connectivity Mini DIN 8 Pole Right Angle Miniature DIN Socket, 1A, 30V AC, Keyed Through Hole Female 1658998-1
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 30V ac |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Fibreglass Reinforced Thermoplastic |
| Contact Material | Copper Alloy |
| Series | Mini DIN |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Shield Type | Shielded |
| Pay online using | Or choose to pay later via bank transfer |
| Pole Format | 8 |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 8 |
| Contact Gender | Female |
| Connector Gender | Female |
| Mating Type | Keyed |
| Connector Size | Miniature |
Key Features
- Designed for PCB mount through hole installation with right angle orientation.
- Features gold over nickel plated copper alloy female contacts for reliable connectivity.
- Shielded connector with fibreglass reinforced thermoplastic housing for durability and insulation.
- Operates in temperatures ranging from -55°C to 105°C suitable for harsh environments.
- Keyed and polarized design prevents mismating for secure connections.
- Solder termination type facilitates strong electrical and mechanical bonds.
- Ideal for electronic applications requiring compact miniature DIN connectors with 8 contacts.
- Complies with no specific approvals but designed to high-quality industrial standards.
Product Description
TE Connectivity model 1658998-1 is a high-quality Mini DIN 8 Pole Right Angle Miniature DIN Socket designed for industrial and electronic component applications. This connector is rated for a current of 1 ampere and a voltage of 30 volts AC, making it suitable for low power signal and control applications.
The connector features a female contact gender with eight contacts and a keyed mating type that prevents incorrect connections. It is shielded to protect against electromagnetic interference and housed in a fibreglass reinforced thermoplastic body rated 94V-0 for flame resistance and enhanced mechanical strength.
With a right angle orientation and through hole mounting type, this connector is ideal for PCB assembly where a compact, durable, and reliable connection is required. The contacts are copper alloy plated with gold over nickel for enhanced conductivity and corrosion resistance. The operating temperature range of -55°C to 105°C ensures excellent performance in demanding environmental conditions.
The solder termination offers secure and stable solder joints on PCBs. The design includes polarization and keying features that prevent mismating and ensure correct assembly, reducing installation errors in electronic systems.
Miniature DIN 8 pole configuration with right angle orientation. Rated current of 1A and operating voltage of 30V AC for control and signal transmission. Shielded design reduces electromagnetic interference in electronic circuits.
Fibreglass reinforced thermoplastic housing ensures durability and flame resistance. Gold over nickel plated copper alloy contacts for high reliability and corrosion protection. Wide operating temperature range from -55°C to 105°C suitable for harsh environments.
Through hole solder termination for robust PCB mounting. Polarized keyed connector prevents mismating, improving assembly accuracy.
This connector suits various industrial, manufacturing, electronic instrumentation, and communication equipment requiring robust miniature circular DIN connectors. It is a reliable choice for engineers designing compact electronic systems with secure connector solutions.
Explore more DIN Connectors and related components to find other compatible parts for your design and assembly needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 1 ampere.
The maximum operating temperature is 105°C.
It uses a solder termination type for robust PCB mounting.
This connector features eight contacts.
It is rated for a voltage of 30 volts AC.
The housing is made of fibreglass reinforced thermoplastic.
It has a polarized and keyed design that prevents mismating.
This model has a right angle orientation.
The minimum operating temperature is -55°C.
It is suitable for industrial, manufacturing, electronic instrumentation, and communication equipment applications.
It features female contacts made of copper alloy plated with gold over nickel.
This unit is shielded to protect against electromagnetic interference.
