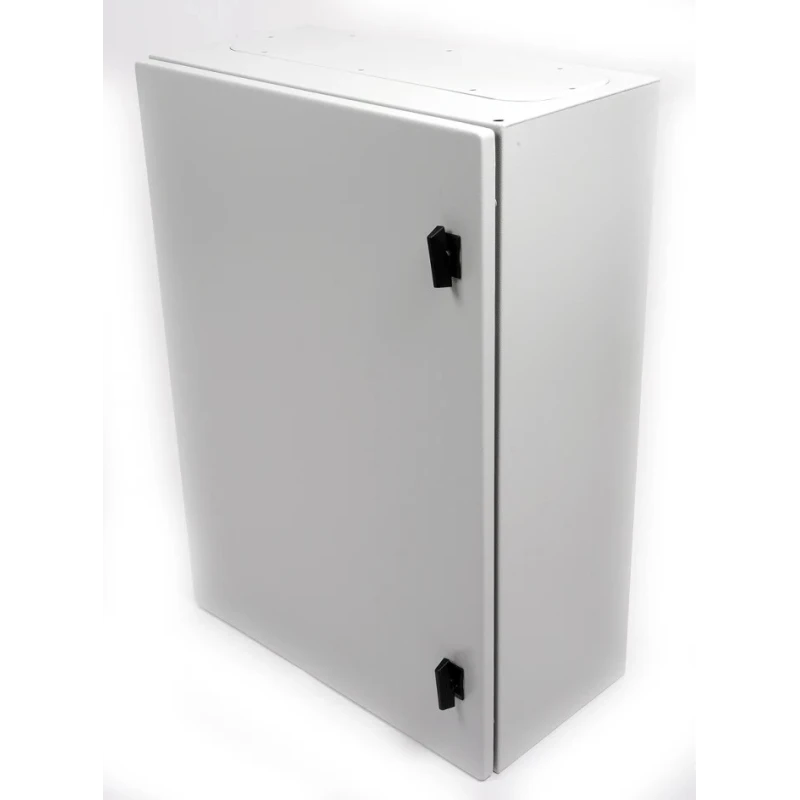

Schneider Electric Spacial CRN Series Steel Wall Box Enclosure IP66 Grey 700mm x 500mm x 250mm NSYCRN75250
Specifications
| Country of Origin | India |
|---|---|
| Display | screen |
| Brand | Schneider Electric |
| Colour | Grey |
| Body Material | Steel |
| Model | NSYCRN75250 |
| IP Rating | IP66 |
| Series | Spacial CRN |
| External Width | 500mm |
| External Depth | 250mm |
| External Height | 700mm |
| Standards/Approvals | cULus, IEC 62208, REACH, RoHS, UL |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 707-9160 Brand: [Schneider Electric](https://in.rsdelivers.com/brands/schneider-electric)Manufacturers Part No.: NSYCRN75250 |
| Door Lock Type | Double Bar |
| Better World Claim | Designed for Disassembly |
| Internal Mount Type | Panel |
| IK Rating | IK10 |
Key Features
- Durable steel body with epoxy-polyester powder coating ensures long-lasting resistance.
- Features a grey color finish with a polyurethane seal to guarantee water tightness.
- Equipped with a 3 mm double-bar lock for secure closure.
- Includes a cable gland plate and supports panel internal mounting.
- Provides IK10 impact resistance rating suitable for harsh environments.
- Designed with removable doors that have 120° opening and reversible function.
- Welded studs are present for earthing and mounting purposes.
- Suitable for indoor and outdoor use due to IP66 ingress protection.
Product Description
Schneider Electric NSYCRN75250 Spacial CRN Series Steel Wall Box Enclosure offers robust protection with an IP66 ingress protection rating, sized at 700mm height, 500mm width, and 250mm depth. Constructed of steel with a grey epoxy-polyester powder finish, it provides exceptional durability and weather resistance for demanding industrial and commercial applications.

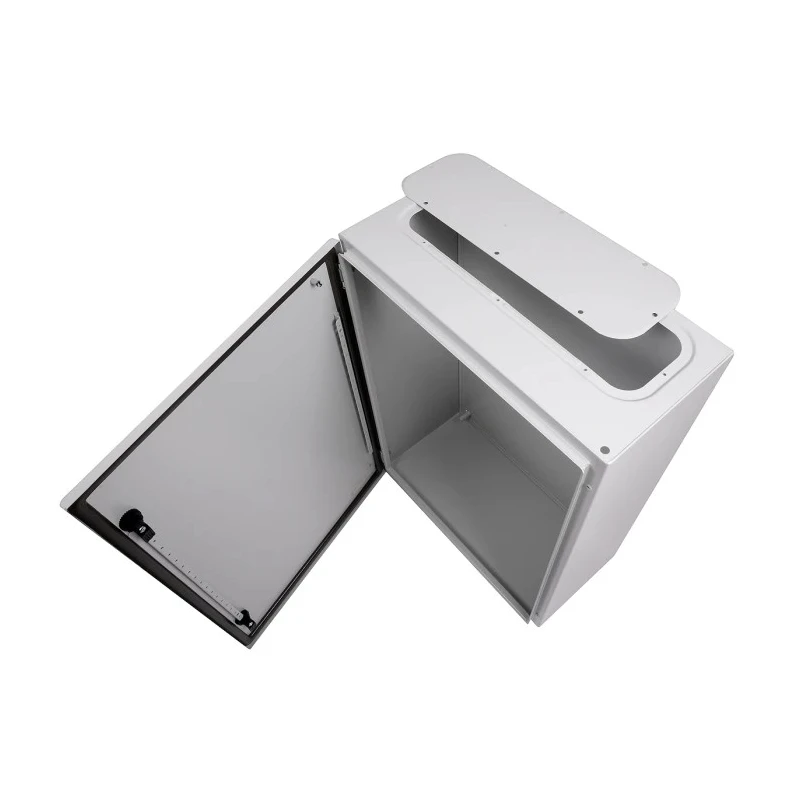

This enclosure includes a polyurethane seal ensuring watertight integrity and a 3 mm double-bar lock for reliable security. The enclosure is delivered as a set including one steel body, one plain door, and one cable gland plate, allowing for secure cable entry and management. The internal panel mounting type and weld stud earthing facilitate versatile installation options.

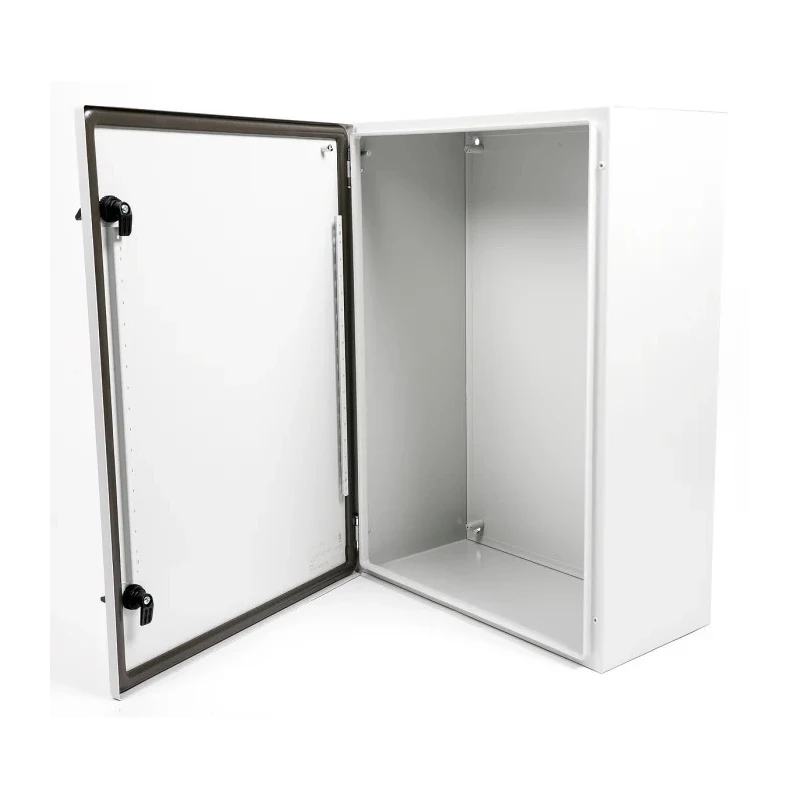

The door opens up to 120 degrees and is reversible, supported by smart hinges that simplify removal and maintenance. The enclosure supports a maximum load of 50 kg/m², with welded studs for mounting and earthing ensuring compliance with safety standards.
Designed for tough environments, it carries an IK10 impact rating for excellent resistance against mechanical shocks. Certified to cULus, IEC 62208, REACH, RoHS, and UL standards, it ensures regulatory compliance and reliability.
This Spacial CRN enclosure is suitable for various applications including industrial automation control panels, electrical distribution systems, electronics housing, and industrial networks. It can be mounted on walls and withstands both indoor and outdoor conditions due to its high ingress protection rating.
Durable steel construction with protective powder coating. Polyurethane seal guarantees water tightness. Double-bar locking system for security. Includes cable gland plate for secure cable entries. Removable, reversible doors for easy access.
Supports panel internal mounting and welded earthing studs. IK10 impact resistance for harsh environments. IP66 rated for dust and water ingress protection. Certified to multiple international safety standards. Versatile use in industrial automation and electrical distribution.
Explore more Schneider Electric enclosures and panel solutions at EnvMart for robust, reliable electrical protection systems.
Explore more products in our Wall Boxes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The enclosure has external dimensions of 700mm in height, 500mm in width, and 250mm in depth.
It has an IP66 ingress protection rating, making it suitable for both dust and water exposure.
The body of the enclosure is made from steel and features a grey epoxy-polyester powder coating for added durability.
It is equipped with a 3 mm double-bar lock for secure closure.
This model is certified to cULus, IEC 62208, REACH, RoHS, and UL standards, ensuring compliance with various safety regulations.
It supports a maximum load of 50 kg/m², allowing for various internal installations.
Yes, it includes a cable gland plate to facilitate secure cable entry and management.
The enclosure is designed for panel internal mounting, providing flexibility for various applications.
The country of origin for this model is India.
It is suitable for various applications including industrial automation control panels, electrical distribution systems, and electronics housing.
