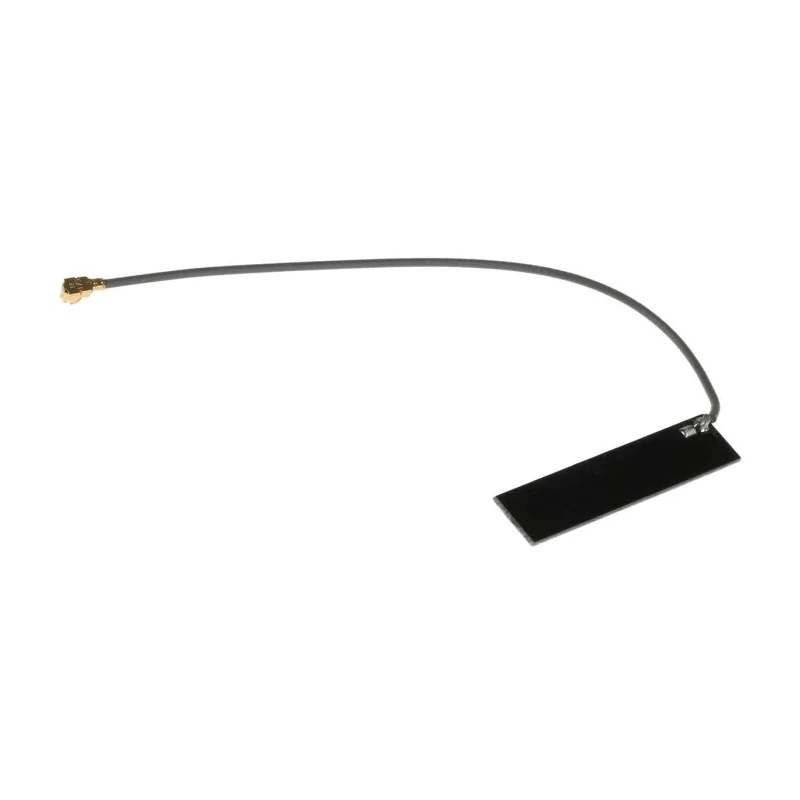

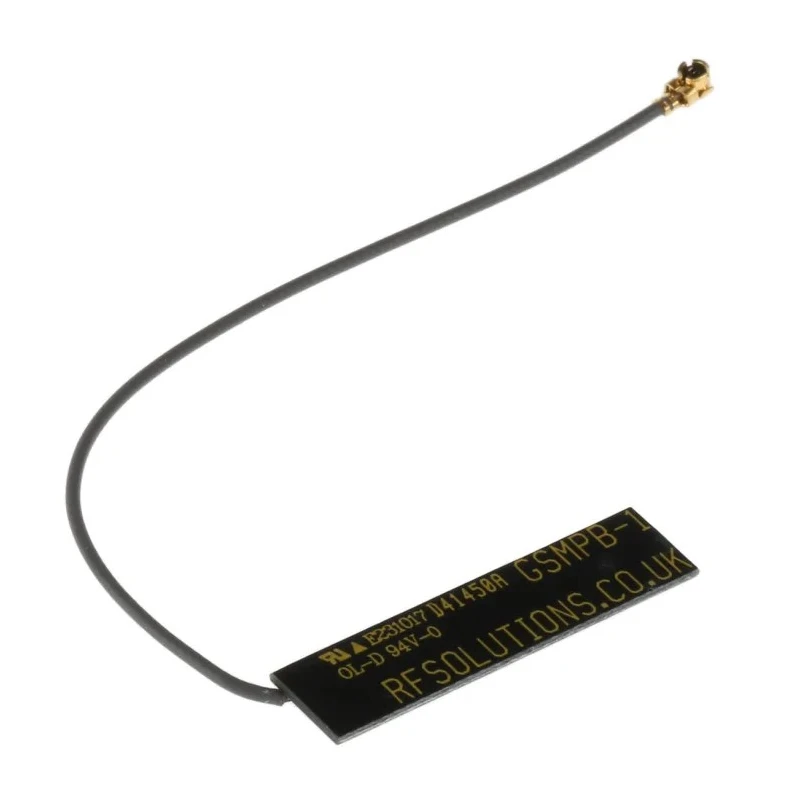

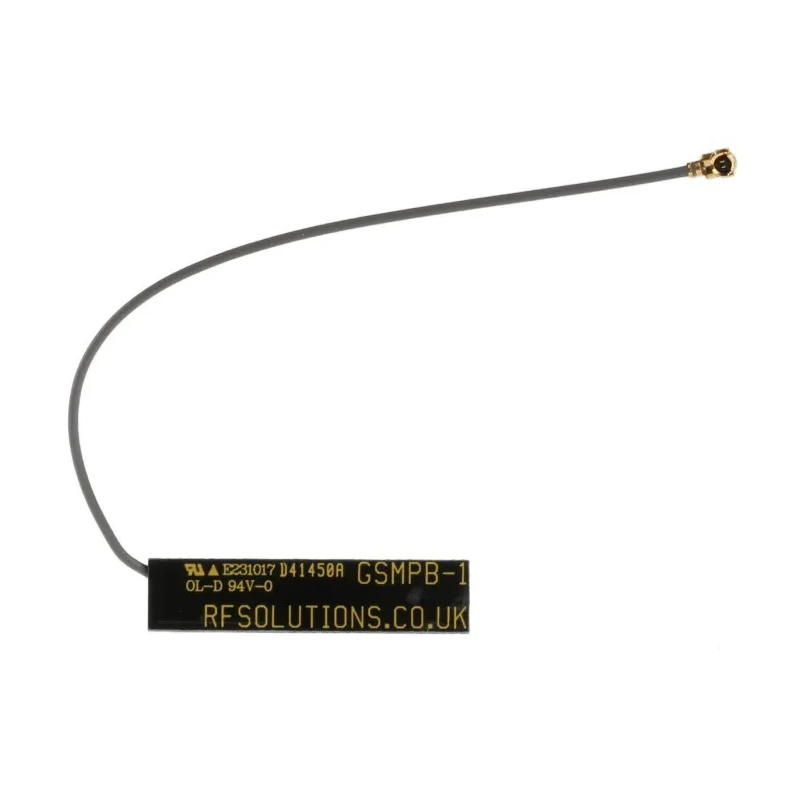

RF Solutions Square Omni-Directional GSM Mini Quad-Band PCB Antenna 850-2100MHz 1dBi Gain with UFL Connector ANT-GSMMQB-UFL
Specifications
| Country of Origin | India |
|---|---|
| Brand | RF Solutions |
| Model | ANT-GSMMQB-UFL |
| Connector Type | UFL |
| Series | GSM |
| Gain | 1dBi |
| Lead Length | 0.1m |
| Standards/Approvals | CE |
| Maximum Frequency | 2100MHz |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 704-3417 Brand: [RF Solutions](https://in.rsdelivers.com/brands/rf-solutions)Manufacturers Part No.: ANT-GSMMQB-UFL |
| Minimum Frequency | 850MHz |
| Antenna Physical Form | Square |
| Directivity | Omni-Directional |
| Antenna Internal Construction | PCB |
| Number of Bands | 4 |
| Active gain | +1dB |
Key Features
- The antenna features a square physical form constructed with PCB for improved performance.
- It offers an active gain of +1dB and an omni-directional directivity pattern.
- The antenna includes a 0.1 meter lead with a UFL connector for easy integration.
- Power rating is 10W with a 50 Ohm impedance and groundplane independence.
- It is CE compliant and compatible with GSM series applications.
Product Description
RF Solutions ANT-GSMMQB-UFL is a square omni-directional GSM mini quad-band PCB antenna designed for use across four GSM bands operating from 850MHz up to 2100MHz. Its compact PCB construction provides high performance and reliable signal gain suitable for electronic and telecommunications applications.
The antenna features an active gain of +1dB with omni-directional directivity, ensuring consistent signal reception from all directions. It includes a 0.1-meter lead terminated with a UFL connector, enabling straightforward connection with compatible devices and systems.
Designed to support quad-band GSM frequencies (850/900/1800/1900MHz), this antenna provides a 50 Ohm impedance and a power rating of 10W, ensuring efficient power handling without distortion. The antenna is groundplane independent, which enhances installation flexibility and performance in diverse environments.
It is suitable for use in industrial, telecommunications, and electronics applications needing reliable GSM signal transmission. The antenna's square shape optimizes space usage and mounting options. PCB internal construction gives durability and improved signal consistency.
The UFL connector allows compact and secure cable attachment. Groundplane independence simplifies integration into various hardware platforms. Quad-band capability ensures compatibility with a wide range of GSM networks.
This product is ideal for GSM & GPRS antenna applications requiring compact, high-performance, omni-directional antennas. Its rugged design and broad frequency range make it suitable for telecommunications infrastructure, IoT devices, and embedded systems.
Explore more antennas and related RF Solutions products within the Electronics & Electricals category at EnvMart for reliable connectivity solutions.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates across four GSM bands, specifically from 850MHz to 2100MHz.
The antenna features an active gain of +1dB, providing reliable signal reception.
It is equipped with a UFL connector, allowing for straightforward integration with compatible devices.
The ANT-GSMMQB-UFL has a square physical form, which optimizes space usage and mounting options.
This unit has a 50 Ohm impedance, ensuring efficient power handling without distortion.
The antenna includes a 0.1-meter lead, which facilitates connection to devices.
It is suitable for industrial, telecommunications, and electronics applications requiring reliable GSM signal transmission.
The maximum power rating for this model is 10W, allowing it to handle significant power without issues.
This model features an omni-directional directivity pattern, ensuring consistent signal reception from all directions.
The country of origin for this antenna is India.
The antenna is constructed using PCB technology, which enhances its performance and reliability.
