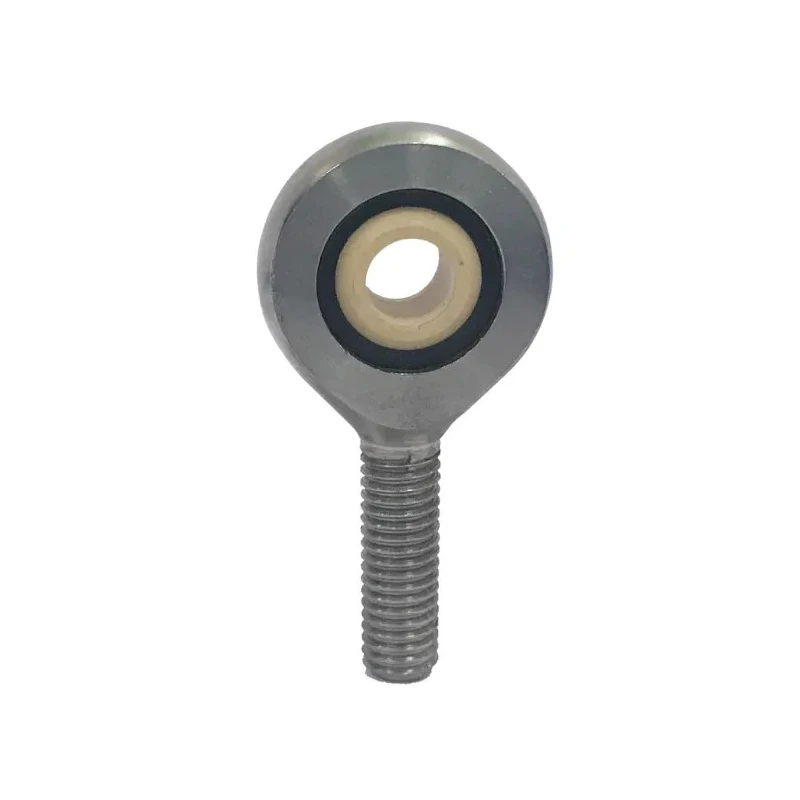

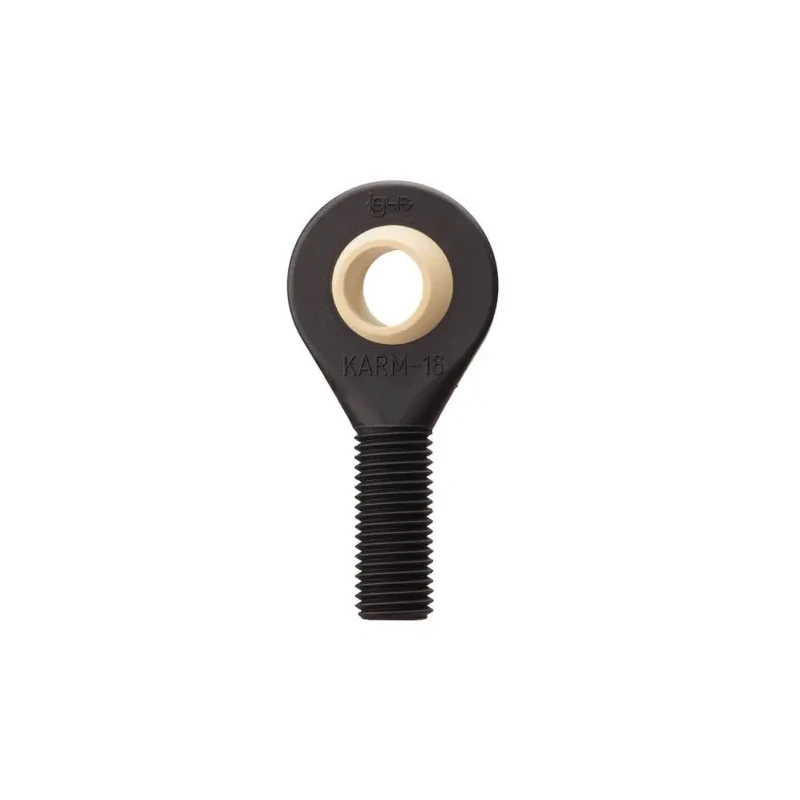

Igus M16 x 2 Male Igumid G Rod End Metric, 16mm Bore KALM-S-16-J-EK

Igus KALM-S-16-J-EK Rod End Bearing is engineered for industrial mechanical and fluid power systems requiring reliable rotary bearings with corrosion resistance. This rod end features a 16mm bore diameter and an M16 x 2 male thread connection made with Igumid G, providing excellent impact resistance and environmental durability.

The housing of this rod end is made from a specially reinforced polymer that withstands harsh environments, including moisture, weak acids, and alkalines. Its operational temperature range from -40 °C to +90 °C makes it suitable for long-term applications under varying conditions.

The dynamic load rating stands at 9600N, and the static load rating is 19200N, ensuring robust mechanical strength. The spherical ball is manufactured using iglidur® W300 material, renowned for its low friction coefficient and minimal stick-slip tendencies, which is critical for low load and slow movement applications.

With an overall width of 88mm and conforming to metric thread standards, this rod end is optimized for industrial assembly requirements, delivering both precision and durability. Its corrosion resistance and resistance to dirt and dust enhance its operational longevity in industrial, manufacturing, laboratory, and mechanical applications.

Constructed with Igumid G, a long-fibre-reinforced polymer for impact resistance. Resistant to weak acids, alkalines, dirt, and dust in harsh environments. Suitable for temperatures from -40 °C up to +90 °C in long-term use.

Dynamic load rating of 9600N and static load rating of 19200N for strength. Spherical ball made from iglidur® W300 material for low friction. Metric thread standard and M16 x 2 male connection for compatibility. Overall width of 88mm provides stable connector dimensions.

Ideal for industrial, mechanical, fluid power, and manufacturing applications.

This high-quality Rod End Bearing by Igus ensures mechanical reliability and longevity in demanding operational conditions. Explore more rotary bearing solutions and industrial tools in EnvMart's comprehensive catalog for optimized mechanical power transmission components.
