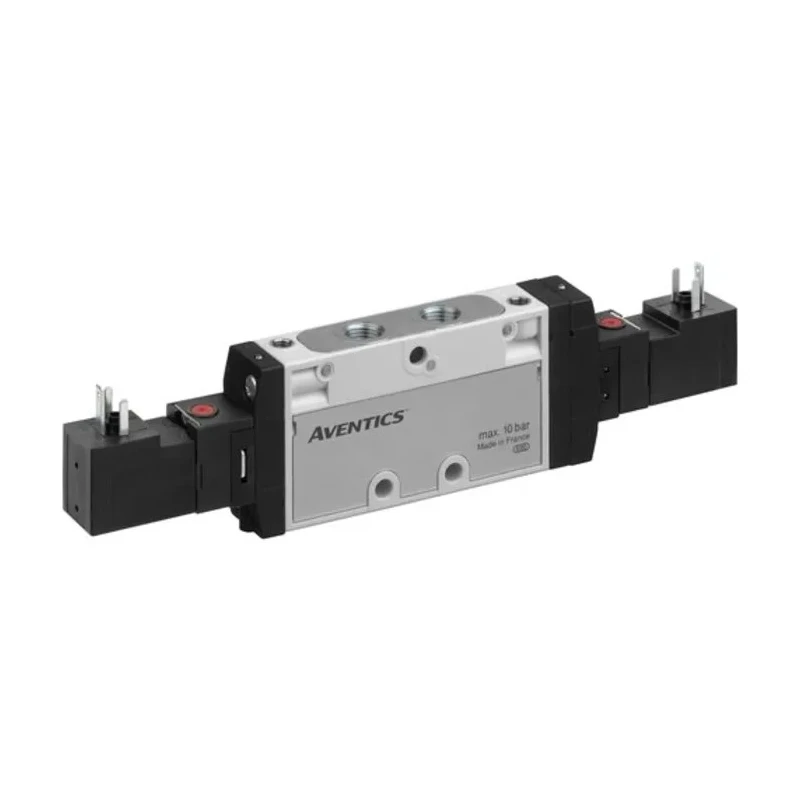

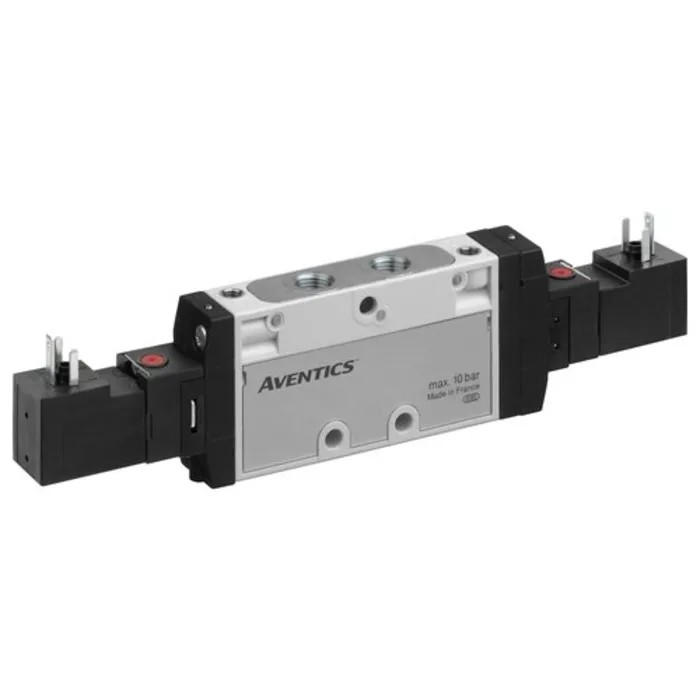

EMERSON ? AVENTICS EMERSON AVENTICS Pneumatic Solenoid Valve 24V DC, Manifold Strip Mount, 1/8 in G Port, 10 bar 0820061011
Specifications
| Country of Origin | France |
|---|---|
| Voltage | 24V dc |
| Brand | EMERSON ? AVENTICS |
| Body Material | Polyamide, Fibreglass |
| Maximum Operating Pressure | 10 bar |
| Mount Type | Manifold Strip |
| Series | TC08 |
| Number Of Ports | 5 |
| Maximum Operating Temperature | 50°C |
| Thread Size | 1/8 in |
| Number of Positions | 3 |
| Port Size | 1/8 in G |
| Minimum Operating Temperature | -10°C |
| Actuation Type | Pilot |
| Maximum Flow Rate | 700L/min |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 703-6633Brand: EMERSON ? AVENTICSManufacturers Part No.: 0820061011 |
| Minimum Pilot Pressure | 3bar |
| Valve Function | Zero Overlap, Spool, Directional Control |
Key Features
- The valve features a durable polyamide and fiberglass reinforced body for enhanced strength.
- It supports a maximum flow rate of 700 L/min with zero overlap spool directional control function.
- The operating temperature range spans from -10°C to 50°C, suitable for demanding industrial environments.
- Commissioned with 3 positions and 5 ports, this valve allows precise control in pneumatic circuits.
- Designed for continuous 100% duty cycle operation ensuring reliability in automation applications.
- Supports a minimum pilot pressure of 3 bar and a maximum pilot pressure of 10 bar.
- Manual override with detent and external pilot options accommodate vacuum applications.
- Mounting on manifold strips enables compact and organized pneumatic system design.
Product Description
EMERSON ? AVENTICS 0820061011 Pneumatic Solenoid Valve TC08 Series offers robust pilot actuation at 24V DC, designed specifically for manifold strip mounting with a 1/8 inch G port size. The valve operates up to a maximum pressure of 10 bar and supports 3 positions and 5 ports, ensuring versatile directional control in pneumatic systems.
Constructed with a polyamide and fiberglass reinforced body, this valve provides excellent mechanical strength and chemical resistance suitable for industrial and manufacturing environments. Its zero overlap spool design guarantees precise switching performance, while the maximum flow rate of 700 L/min supports high air delivery applications efficiently.
The valve sustains continuous 100% duty cycle operation, making it reliable for long-term industrial automation tasks. Its operating temperature range of -10°C to 50°C allows use in varied ambient conditions. Additionally, the valve features manual override capabilities with detent functionality and external pilot options to support vacuum applications.
Ideal for integration in pneumatic manifolds, it allows compact, modular assembly of multiple valves, simplifying control circuit layouts. This TC08 series valve is suited for fluid power systems in automation, manufacturing, HVAC, and various industrial uses where precise control of compressed air is critical.
The valve body is reinforced with polyamide and fiberglass for durability. Zero overlap spool function enhances control accuracy. Supports 5 ports and 3 positions for diverse circuit functions. Manual override with detent ensures easy manual control override.
Designed for 100% duty cycle to meet continuous operation demands. Maximum operating temperature is 50°C, suitable for industrial settings. Minimum pilot pressure is 3 bar with a maximum pilot pressure of 10 bar. 24V DC voltage supply for pilot actuation ensures electrical compatibility.
Port size 1/8 inch G supports standard pneumatic connections. Maximum flow rate of 700 L/min facilitates high volume air control.
EMERSON ? AVENTICS products are trusted in mechanical, fluid power, and pneumatic automation industries worldwide. Explore the range of advanced pneumatic valves and components available on EnvMart for streamlined system design and enhanced operational efficiency.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this valve is 10 bar.
It supports a maximum flow rate of 700 L/min.
This model operates at a voltage of 24V DC for pilot actuation.
The operating temperature range spans from -10°C to 50°C.
This valve features 5 ports for versatile connections.
It is designed for manifold strip mounting.
The body of the valve is made from polyamide and fiberglass, providing enhanced strength.
This model has 3 positions for directional control functionality.
The minimum pilot pressure required is 3 bar.
Yes, it includes a manual override with detent functionality for easy control.
It features a zero overlap spool design for precise directional control.
The country of origin for this valve is France.
