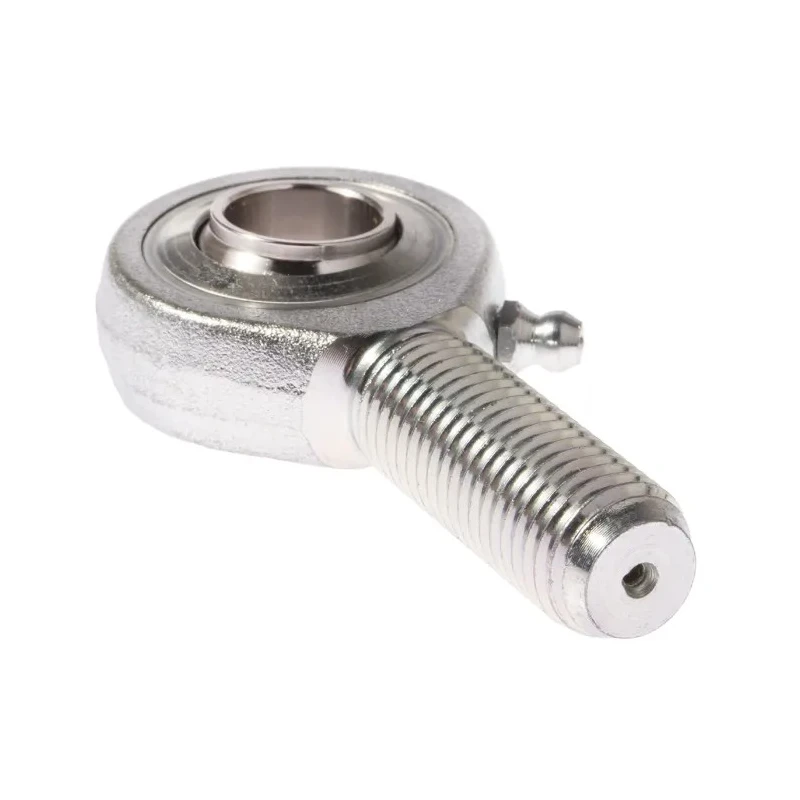

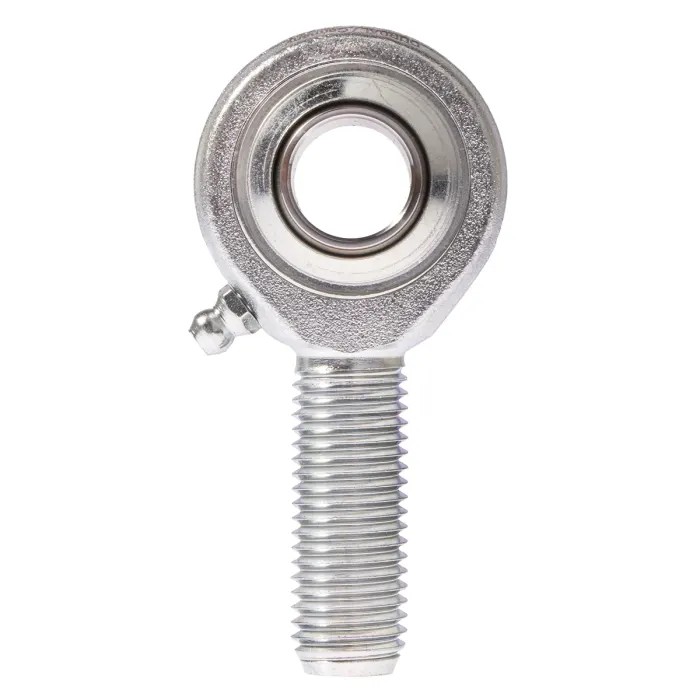

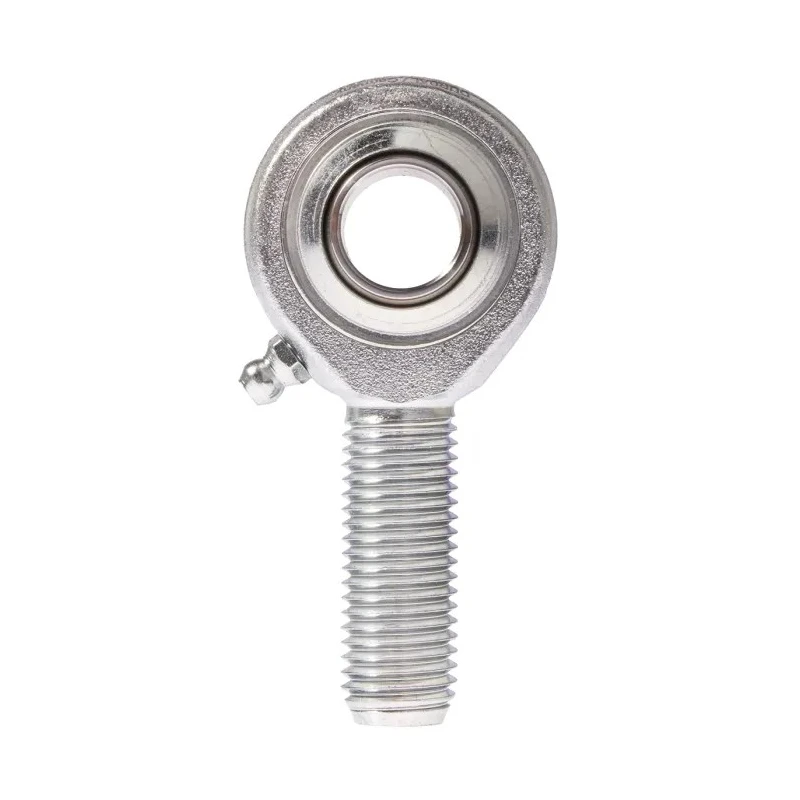

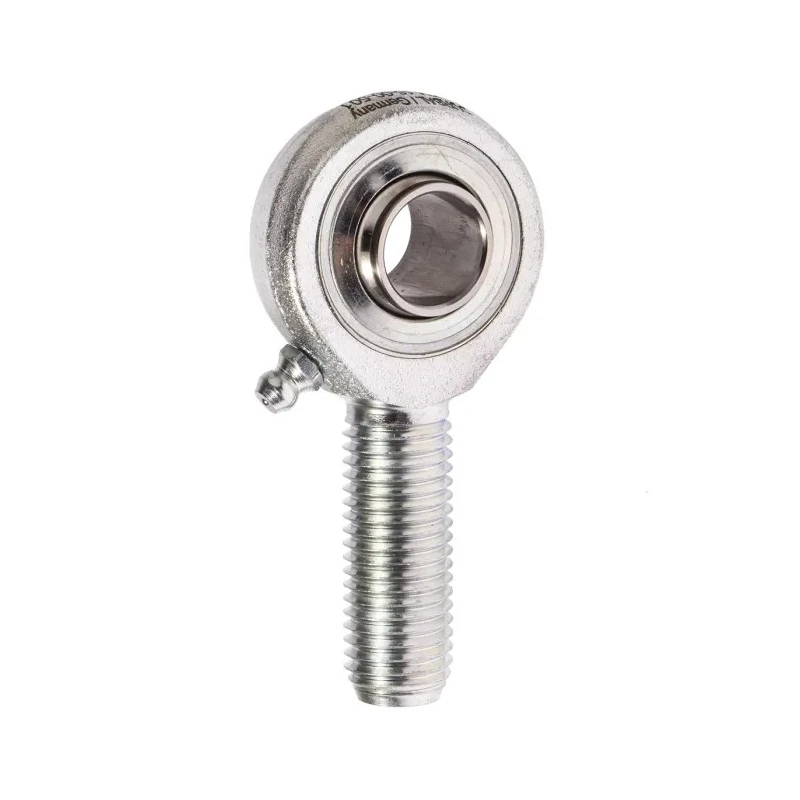

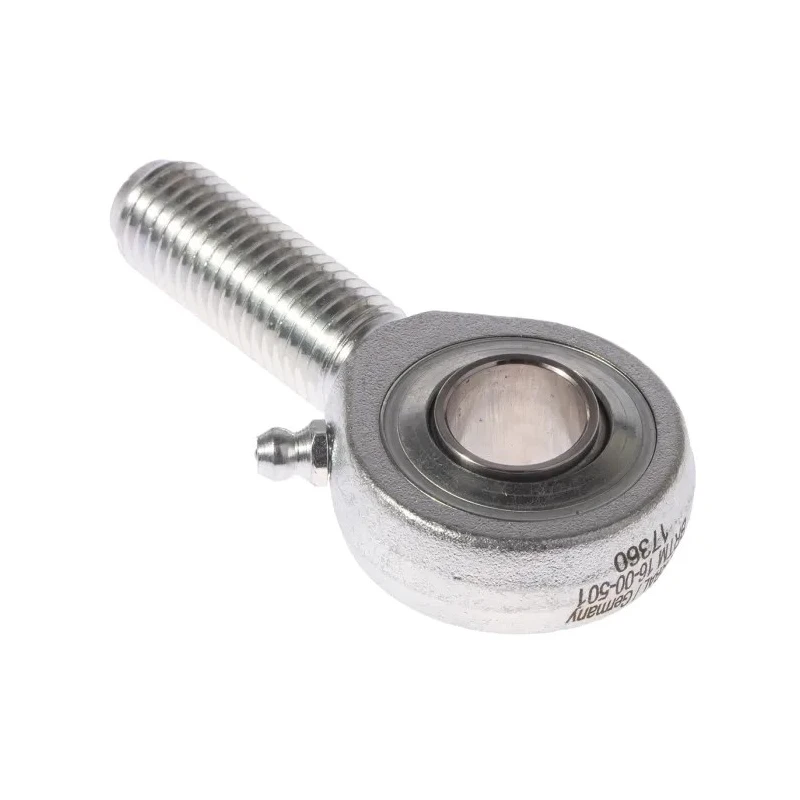

Durbal M14 x 2 Male Forged Steel Rod End, 14mm Bore BRM 14-00-502

Durbal BRM 14-00-502 is a premium forged steel Rod End Bearing designed for demanding industrial and mechanical applications. Featuring a 14mm bore and M14 x 2 male thread connection, it is well suited for rotary bearing and housing unit use cases in manufacturing, construction, and mechanical systems.

The rod end housing is constructed from forged steel that is tempered and case hardened, providing enhanced wear resistance and robustness. The bearing race is meticulously ground and lapped to ensure exceptional smoothness and precision during operation. Surface galvanization offers additional protection against corrosion, extending operational life.

The inner ring is made from hardened ball bearing steel, which is superfine ground for maximum durability and precision. Lubrication can be performed using Polyrex EP2 or soap complex grease, aiding in maintaining low maintenance intervals and enhancing performance under load.

This rod end features a bearing clearance of 15 to 40 μm radial, allowing for self-aligning capabilities to accommodate misalignment in mechanical assemblies. It is rated for a dynamic load of 5.6 kN and a static load of 2 kN, making it robust for medium-load industrial tasks.

Operating temperature specifications range from -20°C up to a maximum of 120°C, enabling application in environments with variable thermal conditions. The connection is male-threaded with a size designation of M14 x 2, making it compatible with corresponding mechanical interfaces.

Forged steel construction with tempering and case hardening for durability. Ground and lapped bearing race ensures smooth bearing operation. Superfine ground hardened ball bearing steel inner ring. Compatible lubrication options include Polyrex EP2 and soap complex.

Bearing clearance between 15 and 40 microns provides self-aligning functionality. Dynamic and static load ratings of 5.6 kN and 2 kN respectively. Operational temperature range from -20°C to 120°C. M14 x 2 male thread connection size for wide industrial use.

Ideal for industrial, construction, mechanical, and fluid power systems requiring reliable rotary bearing components. Durbal rod ends support reduced maintenance in high-performance machinery.
