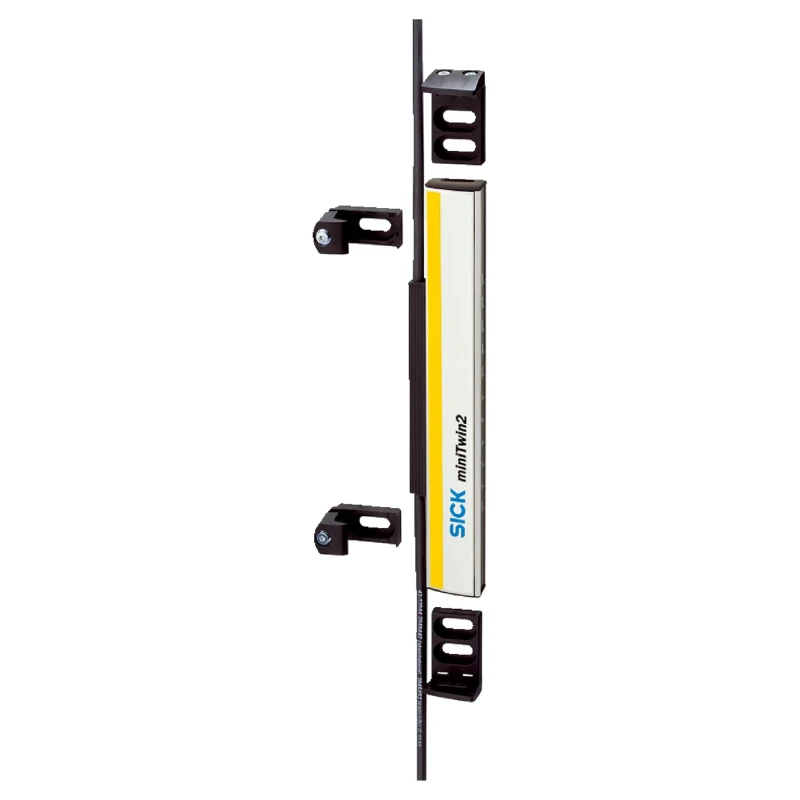

SICK C2MT Series Light Curtain Receiver, Sender, 24 mm Resolution, 300 mm Protective Height, 24V DC Supply Voltage C2MT

SICK C2MT Series Light Curtain Receiver and Sender, model C2MT, offers 24 mm beam resolution with a 300 mm protective height and operates at a nominal 24V DC supply voltage. It is an advanced safety sensor designed to detect intrusions into hazardous machinery areas and provides immediate safety output for industrial safeguarding.

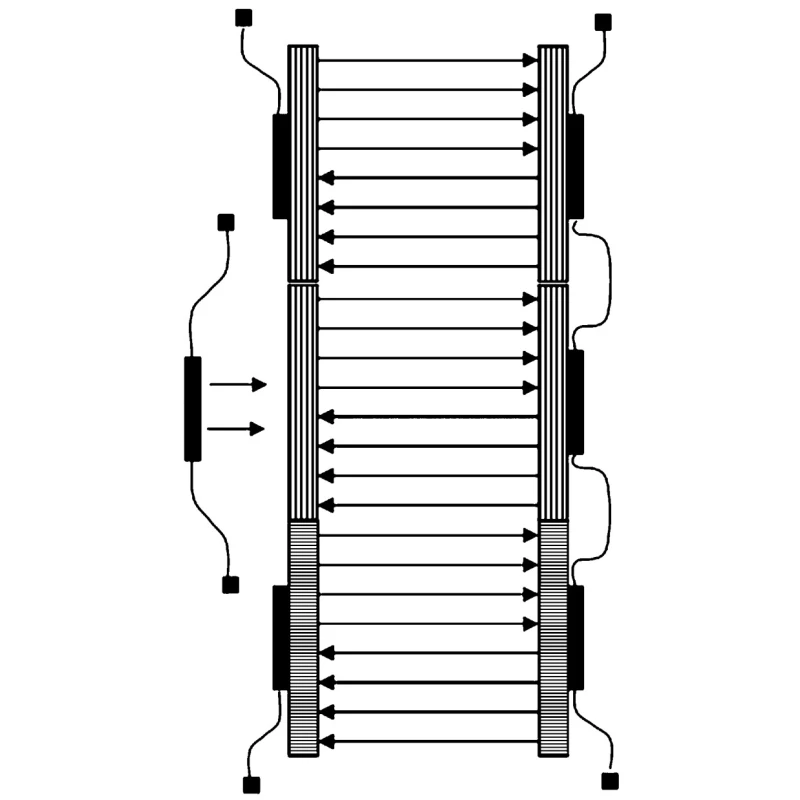

This light curtain is particularly suited as a receiver in miniTwin cascaded systems, enabling optical synchronization without separate wiring, which simplifies installation and system extension. Its 24 mm beam resolution allows precise object detection, while the 0 m minimum scanning distance permits detection close to the sensor.

With an 8 m maximum protective width and scanning distance, it effectively safeguards larger production areas. The system's fast maximum response time of 13 ms ensures timely machine shutdown to prevent accidents.

The device uses PNP semiconductor output switching devices (OSSDs) with built-in short-circuit protection and cross-circuit monitoring, which enhances reliability in safety relay-controlled systems. The M12 5-pin connector simplifies wiring to the automation system.

Rated IP65, the unit is robust against dust and water ingress, functioning reliably in environmental temperatures ranging from -20°C to +55°C and humidity from 15% to 95% non-condensing. The C2MT complies with multiple international safety standards including ACMA, CE, cUL, EC-Type-Examination, GB, IEC, Moroccan, OSHA, RoHS, and UKCA.

Typical applications include perimeter safeguarding of machinery on production lines, cascaded multi-device safety installations, access protection on automated cells, and integration into machine safety circuits.

Provides precise object detection with 24 mm beam resolution. Operates with a 300 mm protective height for comprehensive safety coverage. Covers up to 8 meters in protective width and scanning distance. Enables installation in cascaded multi-device safety systems with optical synchronization.

Features fast response time of 13 milliseconds for rapid safety action. Includes PNP semiconductor outputs with short-circuit and cross-circuit protection. Built to IP65 standards for dust and water resistance. Operates reliably from -20°C to +55°C and 15%-95% non-condensing humidity.

Complies with international safety and quality standards. Manufactured in Germany to ensure high quality and durability. Explore the SICK light curtains category for more industrial safety solutions on EnvMart.
