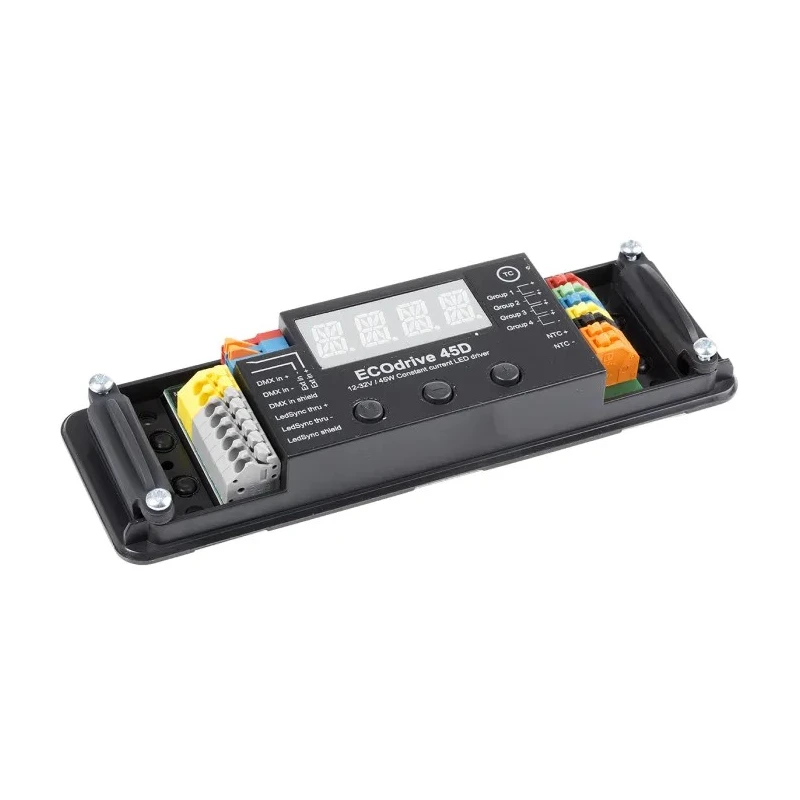

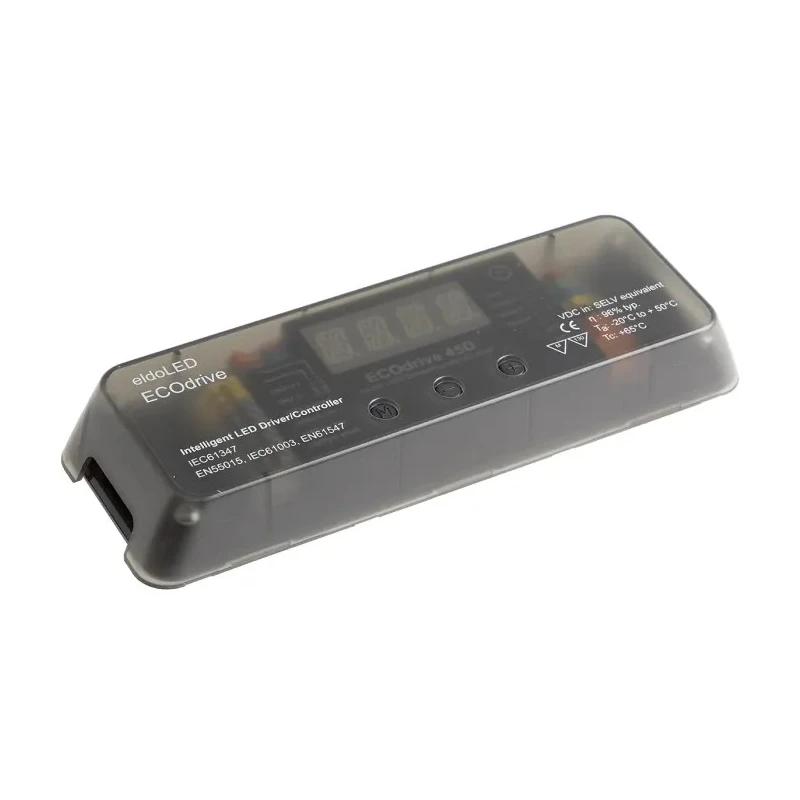

eldoLED 4 Output LED Driver, 31V, 45 W, 1400mA Linear LED Driver ECO045D2
Specifications
| Country of Origin | India |
|---|---|
| Brand | eldoLED |
| Model | ECO045D2 |
| Mount Type | Screw |
| Series | Ecodrive |
| Configuration | Enclosed |
| Sub Type | LED Driver |
| Operating Modes | Constant Current |
| Number of outputs | 4 |
| Terminal type | Push-in |
| Maximum Output Power | 45W |
| Input Voltage | 12V |
| Output Voltage | 31V |
| Standards/Approvals | CE, EN, RoHS, UL |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 697-3011 Brand: [eldoLED](https://in.rsdelivers.com/brands/eldoled)Manufacturers Part No.: ECO045D2 |
| Dimming Operation | Linear |
| Primary Type | DC-DC |
| Driver Current | 1400mA |
| LED Voltage | 12, 32V |
Key Features
- The driver supports four output channels for high-brightness indoor LED lighting applications.
- Operating input voltage is 12V DC, with a voltage range from 12 to 32V.
- Features a compact, enclosed design with screw mount type and push-in terminal connectors.
- Compliance with CE, EN, RoHS, and UL standards ensures safety and reliability.
- High efficiency up to 95% and low EMI make it suitable for professional lighting control.
- DMX and LEDSync compatibility allow advanced color control and bidirectional communication.
- Includes a user interface with a 3-button display for easy configuration.
- Supports ambient temperature range from -20°C to 50°C, ensuring robust operation in various environments.
Product Description
eldoLED ECO045D2 4 Output LED Driver is a high-performance, enclosed constant current LED driver designed for high-brightness indoor LED lighting applications. Operating at 31V output voltage and 45 W maximum power with 1400mA driver current, it delivers stable and efficient LED control through linear dimming operation.
This LED driver supports four separate output channels, making it ideal for complex lighting arrangements requiring precise current regulation across multiple LED groups. Its input voltage of 12V DC, expandable up to 32V, offers flexibility for various LED configurations.
The compact, enclosed form factor measures approximately 153x50x23 mm, facilitating easy integration into lighting fixtures. Mounting is secured by screws, with push-in terminal connectors enhancing installation speed and reliability.
Designed with industrial standards in mind, the ECO045D2 is compliant with CE, EN, RoHS, and UL certifications, ensuring safety and environmental compliance in professional settings. It features low electromagnetic interference and high power efficiency reaching up to 95%, which optimizes performance while minimizing energy loss.
Advanced communication protocols such as DMX and LEDSync allow for sophisticated 15-bit dimming and color control, including bidirectional feedback for status and temperature monitoring. The driver incorporates a user-friendly interface with a 3-button display for straightforward configuration.
The driver powers LED groups in a constant current mode, guaranteeing long LED life and consistent brightness. It operates within an ambient temperature range from -20°C to 50°C, suitable for varied indoor environments. ECOdrive series supports integration in networked lighting systems or operation as standalone devices with uploaded show sequences.
This product is specifically designed for use in industrial, commercial, and architectural LED lighting systems, ensuring precise LED management and enhanced lighting effects. Its robust build and extensive feature set make it a preferred choice for demanding LED applications.
Explore more LED drivers and compatible lighting components to optimize your lighting installations in the Electronics & Electricals category at EnvMart.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this LED driver is 45W.
The output voltage for this model is 31V, with an input voltage range from 12V to 32V.
This LED driver supports four output channels.
It utilizes linear dimming operation for LED control.
The dimensions of this unit are approximately 153x50x23 mm.
The driver current for this model is 1400mA.
This model uses a screw mount type for installation.
It is compliant with CE, EN, RoHS, and UL standards.
The operating temperature range for this LED driver is from -20°C to 50°C.
Yes, it supports integration in networked lighting systems or can operate as a standalone device.
The driver has a high efficiency rating of up to 95%.
