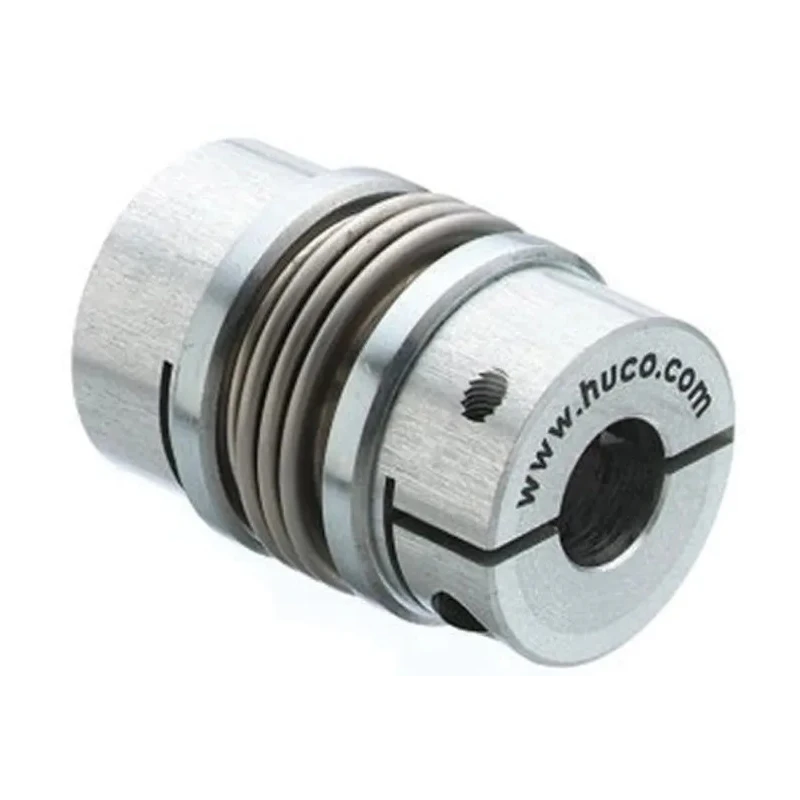

Huco Aluminium Hub Stainless Steel Bellows Flexible Coupler 31 mm Length 8 mm Bore 537.20.2020

Huco 537.20.2020 flexible coupler features an aluminium hub combined with stainless steel bellows, measuring 31 mm in length with 8 mm bore sizes on both ends. This clamp style coupling offers high torsional stiffness essential for achieving positional accuracy in mechanical power transmission applications.

Designed specifically for servo drive applications, it exhibits low inertia, making it ideal for high precision dynamic position control where minimal misalignment is critical.

The flexible coupler tolerates a maximum operating temperature of 120°C and a minimum of -40°C, enabling reliable performance under varying thermal conditions. Its mechanical specifications include a maximum speed rating of 5000 rpm, torque rating of 2.33 Nm, angular misalignment capacity of 2°, parallel misalignment up to 0.06 mm, and axial misalignment allowance of 0.35 mm.

Constructed with high quality aluminium for the hub and stainless steel bellows, this product ensures durability and resistance to wear. The M3 screw size clamp style mechanism guarantees secure attachment and ease of installation.

Manufactured in the United Kingdom, this Huco coupler meets rigorous quality and performance standards, suitable for demanding industrial, manufacturing, servo systems, and precision engineering environments.

Clamp style coupling with high torsional stiffness for positional accuracy. Length measures 31 mm with 8 mm bore sizes on both ends. Maximum operating temperature of 120°C and minimum of -40°C. Suitable for servo drive applications requiring minimal misalignment and low inertia.

Maximum speed rating of 5000 rpm and torque rating of 2.33 Nm. Capable of handling angular misalignment up to 2°, parallel misalignment up to 0.06 mm, and axial misalignment of 0.35 mm. Constructed with aluminium hub and stainless steel bellows for durability.

Screw size M3 clamp style ensures secure mounting. Manufactured in the United Kingdom ensuring quality and precision.

This flexible coupler is an essential component for mechanical power transmission systems requiring accurate torque transmission, vibration dampening, and alignment compensation. It finds application in industrial machinery, automated manufacturing lines, robotics, and precision motion control systems throughout various industrial sectors.
