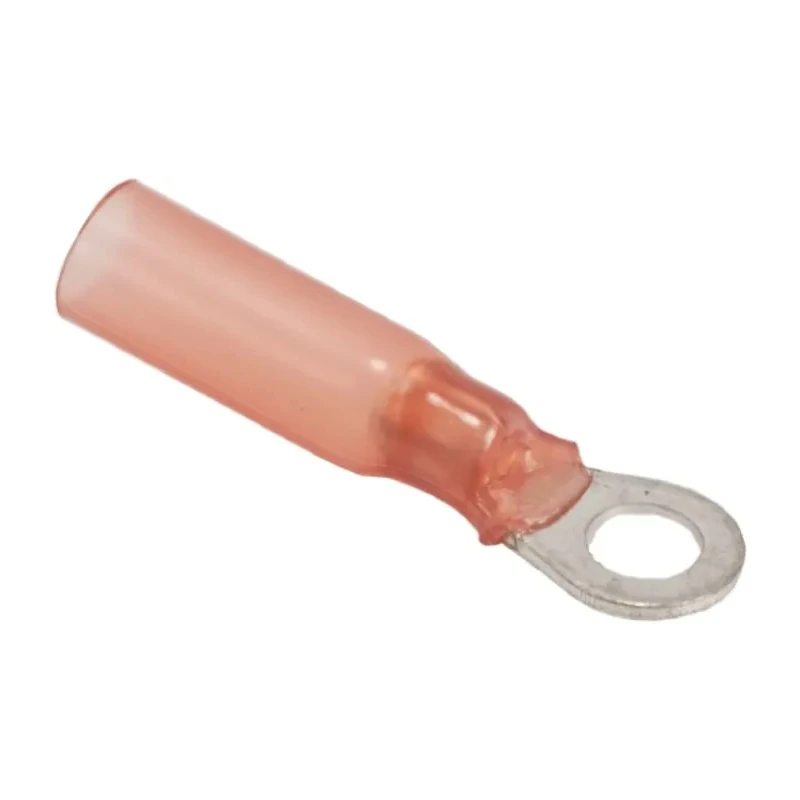

TE Connectivity DuraSeal Insulated Ring Terminal 6 mm Stud Size 22 AWG 18 AWG Wire Size Red 224793-000
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | TE Connectivity |
| Colour | Red |
| THICKNESS | 0.79mm |
| Insulation | Insulated |
| Overall Length | 35.99mm |
| Contact Material | Copper |
| Series | DuraSeal |
| Maximum Operating Temperature | 125°C |
| Insulation Material | Nylon |
| Minimum Operating Temperature | -55°C |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 1mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 18AWG |
| Outer Ring Diameter | 10mm |
| Inner Ring Diameter | 6.5mm |
| Stud Size | 6 mm |
Key Features
- Features heat-shrinkable nylon insulation with hot-melt adhesive for abrasion and water resistance.
- Constructed with copper contact material plated with tin for excellent conductivity.
- Designed for wire sizes from 0.5 mm² to 1 mm² with a stud inner diameter of 6.5 mm.
- Operates reliably from -55°C up to 125°C for varied environmental conditions.
- Red color-coded for easy identification within wire harnesses and assemblies.
- Overall length of 35.99 mm and insulation thickness of 0.79 mm to ensure durability.
- Suitable for automotive and marine applications where environmental sealing is critical.
- Manufactured in Mexico under the DuraSeal series by TE Connectivity.
Product Description
TE Connectivity 224793-000 DuraSeal insulated ring terminal is engineered to provide a secure and sealed electrical connection with enhanced protection against mechanical abuse, vibration, wire pull-out, abrasion, water, salt, and contaminants.
The ring terminal features a copper contact plated with tin for robust conductivity and corrosion resistance, covered with heat-shrinkable nylon tubing lined with hot-melt adhesive that shrinks and seals tightly when heated.
This product is suitable for wire sizes from 22 AWG (0.5 mm²) to 18 AWG (1 mm²) and is designed to fit 6 mm stud sizes, facilitating reliable electrical connections in critical environments.
The DuraSeal ring terminal operates efficiently between -55°C and 125°C, making it ideal for harsh industrial and automotive environments. The red color coding and precise dimensions of 35.99 mm overall length with 0.79 mm insulation thickness reflect high manufacturing standards and ease of installation.
Commonly used in automotive, marine, industrial electrical assemblies, and equipment wiring, this terminal supports enhanced environmental sealing requirements. Kits covering a range of wire sizes and colored terminals are available separately to complement this product line.
Features heat-shrinkable nylon insulation with hot-melt adhesive for abrasion and water resistance. Constructed with copper contact material plated with tin for excellent conductivity. Designed for wire sizes from 0.5 mm² to 1 mm² with a stud inner diameter of 6.5 mm.
Operates reliably from -55°C up to 125°C for varied environmental conditions. Red color-coded for easy identification within wire harnesses and assemblies. Overall length of 35.99 mm and insulation thickness of 0.79 mm to ensure durability.
Suitable for automotive and marine applications where environmental sealing is critical. Manufactured in Mexico under the DuraSeal series by TE Connectivity. Explore other certified ring terminals and electrical connectors on EnvMart for your industrial and automotive needs.
Explore more products in our Electronics Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates reliably within a temperature range of -55°C to 125°C, making it suitable for various environmental conditions.
It is designed for wire sizes from 22 AWG (0.5 mm²) to 18 AWG (1 mm²).
The inner diameter of the stud for this terminal is 6.5 mm, accommodating a 6 mm stud size.
The terminal features a copper contact material that is plated with tin for excellent conductivity and corrosion resistance, and it is insulated with nylon.
The overall length of the terminal is 35.99 mm, and the insulation thickness is 0.79 mm.
It has heat-shrinkable nylon insulation lined with hot-melt adhesive, providing abrasion and water resistance.
This terminal is suitable for automotive and marine applications where environmental sealing is critical, as well as for industrial electrical assemblies.
The terminal is color-coded red for easy identification within wire harnesses and assemblies.
This terminal is manufactured in Mexico under the DuraSeal series by TE Connectivity.
The combination of heat-shrinkable nylon insulation and hot-melt adhesive provides enhanced protection against mechanical abuse, vibration, and environmental contaminants.
The outer ring diameter of this insulated ring terminal is 10 mm.
Yes, kits covering a range of wire sizes and colored terminals are available separately to complement this product line.
