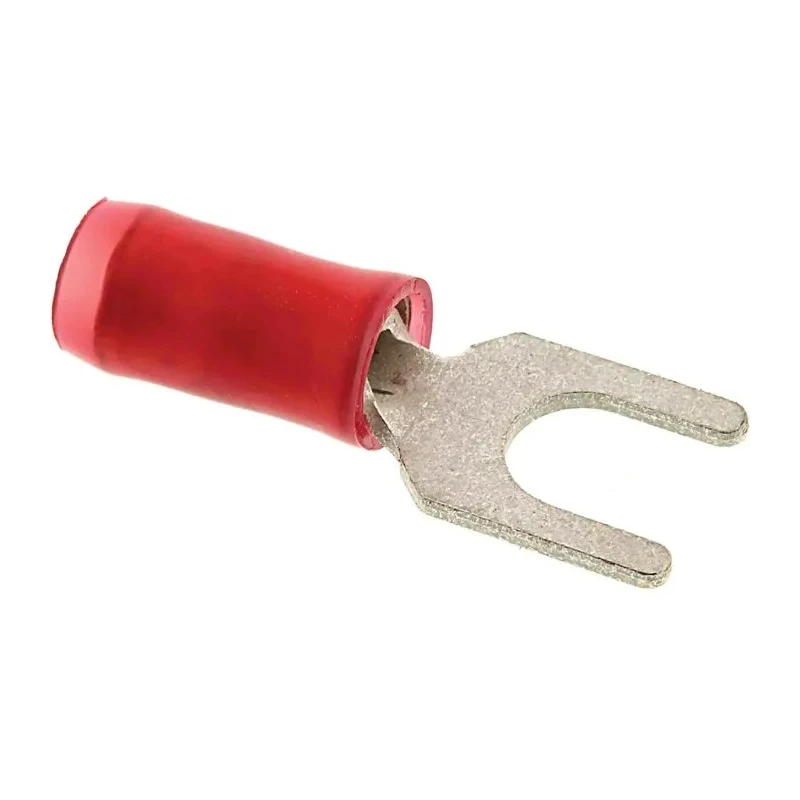

TE Connectivity Insulated Fork Terminal 22 AWG to 16 AWG M4 Stud Size Nylon Red 130517

TE Connectivity 130517 insulated fork terminal is made from a precision-formed high-conductivity copper body with a tin-plated copper contact, designed for durability and efficient electrical conductivity. It features a nylon insulated sleeve colored red to assist with wire size identification and to provide insulation protection.

This fork terminal supports wire sizes ranging from 22 AWG to 16 AWG and accommodates an M4 stud size, making it suitable for numerous wiring applications. The design includes serrations inside the wire barrel to enhance tensile strength and ensure a reliable crimp connection.

The funnelled wire entry design prevents wire strand damage and facilitates quick wire insertion, which is ideal for high-speed production environments. With an overall length of 20.8 mm and a width of 7.1 mm, the terminal is compact yet robust.

High conductivity copper body ensures excellent electrical performance. Tin-plated copper contact provides corrosion resistance and long service life. Nylon insulation sleeve with color coding for quick wire size identification.

Serrations in the wire barrel maximize contact and tensile strength. Funnelled wire entry allows fast and reliable wire insertion. Compatible with 22 AWG to 16 AWG wire sizes and M4 stud size. Suitable for applications in instruments, control systems, lighting, power supplies, panel boxes, transportation, lifting equipment, motors, aerospace, and household appliances.

TE Connectivity’s PIDG Fork Terminals deliver uniform and reliable crimps suitable for various industrial and electronic uses. They comply with rigorous standards and are built to withstand demanding operating conditions.
