TE Connectivity Automotive Relay 12V DC Coil 40A Switching Current SPDT V23134A0052C643 2-1393302-2

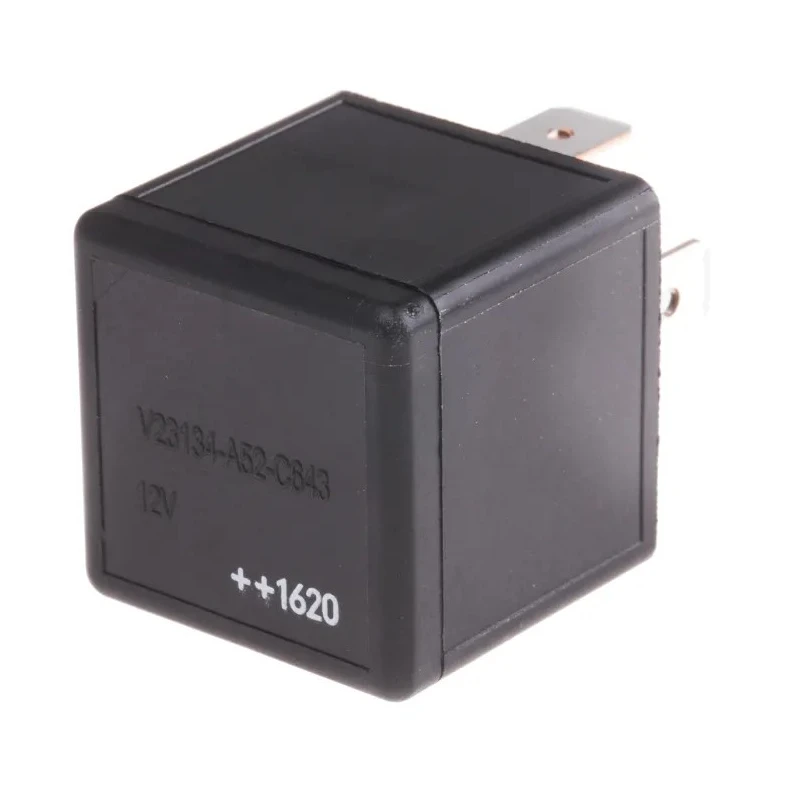

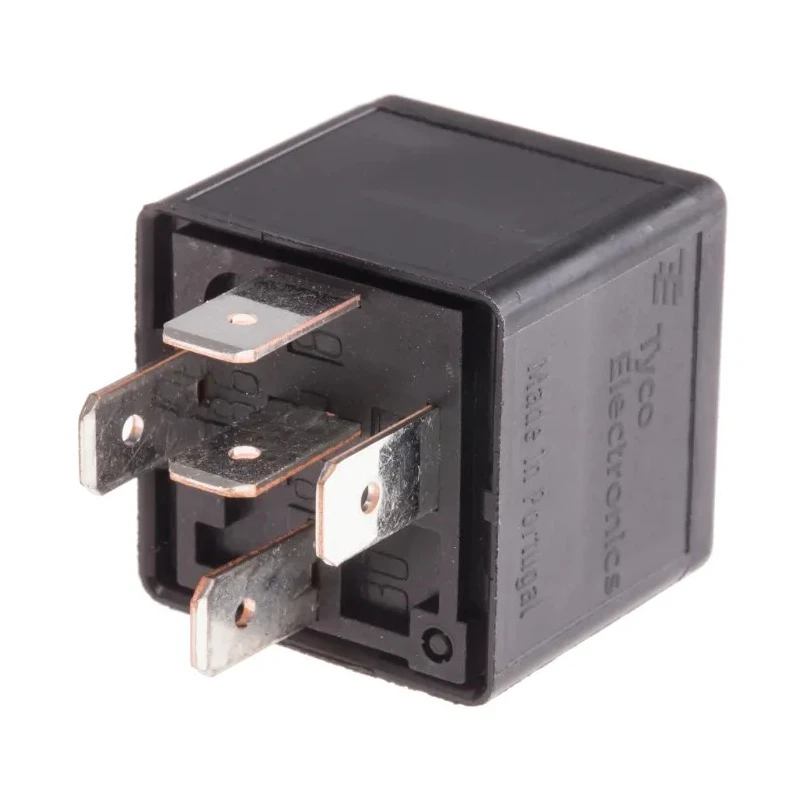

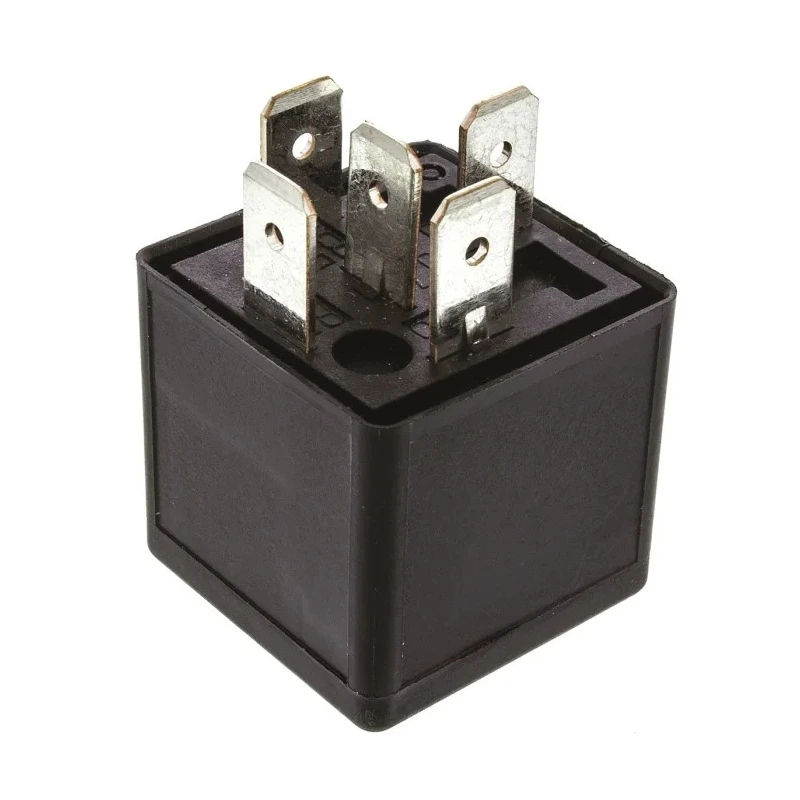

TE Connectivity V23134A0052C643 2-1393302-2 is an automotive relay designed for reliable switching in automotive electrical systems. Featuring a 12V DC coil voltage and a 40A maximum switching current, this single pole double throw (SPDT) relay provides versatile switching options for automotive applications.

This relay belongs to the F4 series of mini ISO automotive relays, engineered with an IP54 dust protection rating to ensure durability in challenging environments. The quick connect terminals facilitate quick and easy installation or replacement in automotive circuits.

Constructed with silver contacts, it ensures excellent conductivity and long service life. The coil power rating is 1.6W with coil resistance of 91Ω, providing efficient coil operation with minimal power consumption.

Operating temperature ranges from -40°C to 125°C, allowing use in extreme climates. The compact dimensions of 26.2mm (length), 25.2mm (height), and 26.2mm (depth) enable integration into space-constrained automotive assemblies.

Typical applications include ignition lock control, headlamp lamp load switching, exhaust emission control systems, anti-lock braking systems (ABS), fuel pump operation, electric power steering, wiper control, car alarm systems, and blower fan control.

This relay operates at 12V DC coil voltage ensuring compatibility with automotive electrical systems. It offers a high switching current rating of 40A suitable for demanding automotive loads. The SPDT contact configuration allows single pole double throw switching functionality.

Constructed with silver contact material, enhancing conductivity and durability. Designed to operate within a temperature range from -40°C to 125°C for diverse environments. Compact dimensions: 26.2mm length, 25.2mm height, and 26.2mm depth for easy integration.

Quick connect terminal type for simplified installation and replacement. Isolation voltage between coil and contacts rated at 500V for safety assurance. F4 series mini ISO relay design offers dust protection to IP54, suitable for harsh automotive conditions.

Manufactured in Portugal abiding by high-quality standards.

These relays are suitable for industrial, automotive, and manufacturing environments where reliable switching is critical. Their compact design and moderate power specifications make them versatile components in electrical control circuits.

Explore the TE Connectivity range on EnvMart for compatible Automotive Relays, connectors, and electrical components to streamline your assembly or repair projects.
