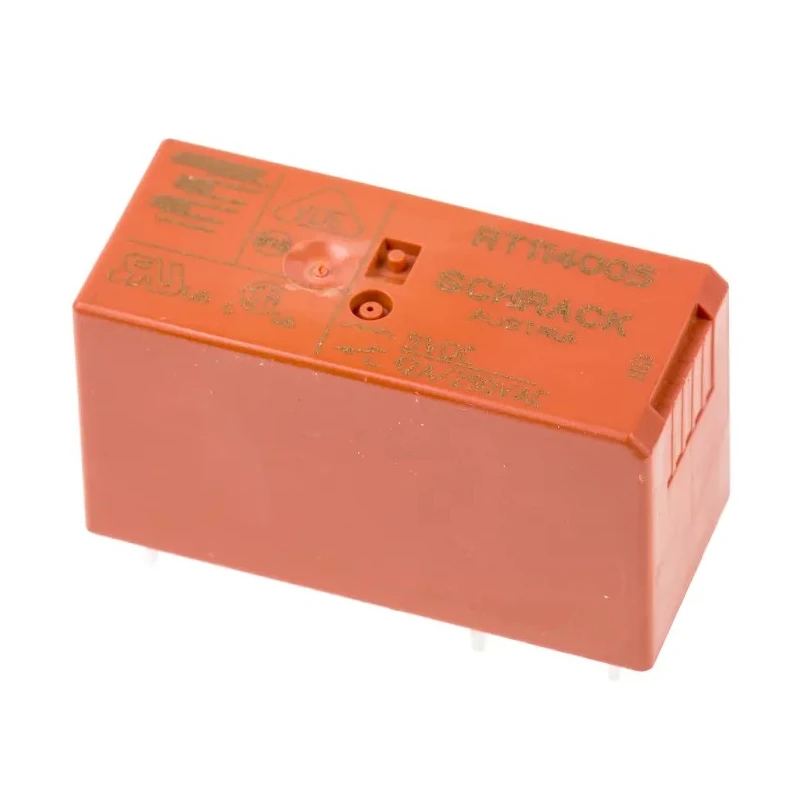

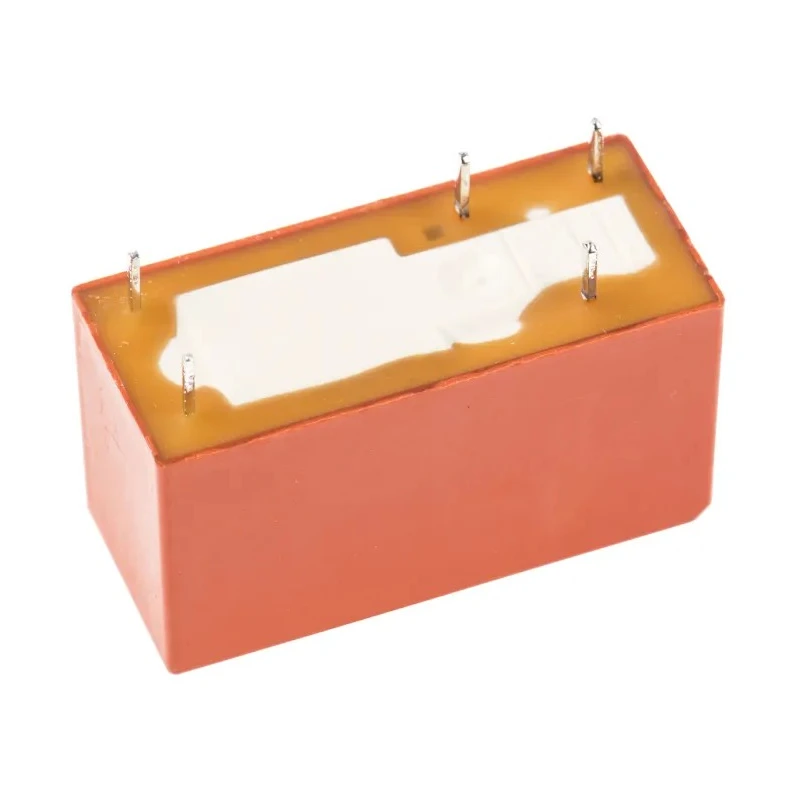

TE Connectivity PCB Power Relay 5V DC Coil 12A Switching Current SPDT RT114005

TE Connectivity RT114005 PCB Power Relay is a high-quality SPDT relay designed for PCB mounting with a 5V DC coil voltage and capable of switching currents up to 12A. This relay belongs to the RT1 series, featuring a through-hole design with 3.5mm pinning and solder terminal type, ensuring secure connections and flux-proof build quality. It measures 29mm in length, 15.7mm in height, and 12.7mm in width, making it suitable for compact circuit designs.

The relay operates efficiently with low coil power consumption of 250mW and a coil resistance of 62 ohms. It performs reliably within a temperature range of -40°C to 85°C, supporting applications that require wide environmental tolerance. The contact material is silver nickel alloy, providing excellent conductivity and long-lasting durability. The relay withstands switching AC voltages of up to 400V and supports a switching power of 3kVA, suitable for diverse electrical loads.

This product is RoHS compliant and meets IEC 60335-1 and VDE standards, ensuring safety and environmental friendliness. Typical uses include industrial automation systems, domestic automation, security lighting, and heating control systems that demand dependable power relay performance on printed circuit boards.

The RT114005 model is rooted in the proven RT series family of PCB power relays, widely utilized across interface, automation, and commercial electrical applications. Its flux-proof design enhances reliability during soldering and operation.

Designed for through-hole PCB mounting with solder terminals for secure installation. Wide ambient operating temperatures from -40°C to 85°C for versatile environments. Silver nickel alloy contacts ensure reliable conductivity and longevity.

Low coil power consumption of 250mW supports energy-efficient operation. Supports switching voltages up to 400V AC and switching power of 3kVA. Complies with IEC 60335-1, RoHS, and VDE standards for safety and compliance.

Compact dimensions: 29mm (L) x 12.7mm (W) x 15.7mm (H) fit constrained PCB spaces. Applicable to industrial automation, security lighting, heating control, and interface applications.

This TE Connectivity RT114005 PCB Power Relay offers a robust solution for controlling high power loads on PCB assemblies in industrial and commercial electrical systems. Explore more products in our Power Relays category to find the ideal relay for your automation and electrical control needs.
