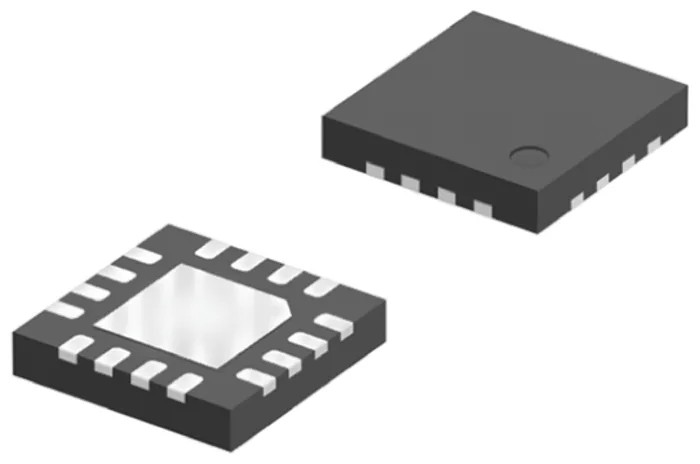

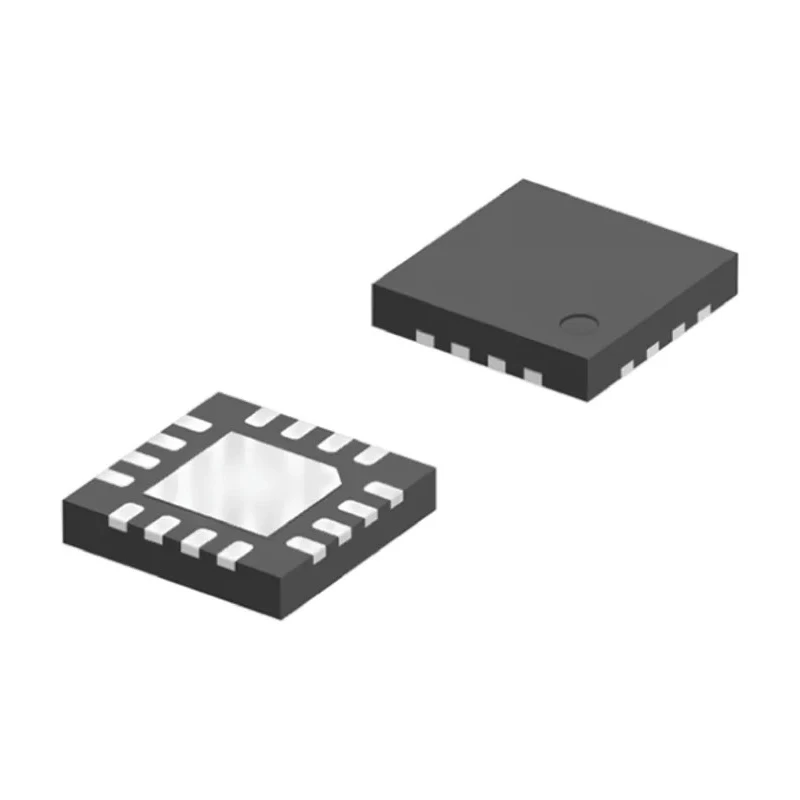

onsemi Analogue Switch 1 Single 4PDT Multiplexer 16-Pin MLP FSA2567MPX
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 750μm |
| Length | 3mm |
| Model | FSA2567MPX |
| Width | 3mm |
| Mount Type | Surface |
| Series | FSA2567 |
| Configuration | Single 4PDT |
| Maximum Operating Temperature | 85°C |
| Package Type | MLP |
| Minimum Operating Temperature | -40°C |
| Pin Count | 16 |
| Number of Elements per Chip | 1 |
| Maximum Supply Voltage | 4.3V |
| Minimum Supply Voltage | 1.65V |
| Multiplexer/Demultiplexer | Multiplexer |
| Maximum On State Resistance | 12Ω |
| onsemi FSA2567MPX Analogue Switch, 1 Single 4PDT, Multiplexer, 16-Pin MLPBrand | onsemi |
Key Features
- Features a single 4PDT configuration for versatile switching.
- Operates within a supply voltage range of 1.65V to 4.3V.
- Supports operating temperatures from -40°C to 85°C.
- Maximum on state resistance is 12 ohms for signal integrity.
- Compact 3mm by 3mm dimensions with a 750μm height for surface mounting.
- Standard MLP surface-mount package type ensures easy integration.
- Ideal for USB, audio, and video signal routing applications.
Product Description
onsemi FSA2567MPX analogue switch is a highly reliable 1 single 4PDT multiplexer configured IC, housed in a surface-mount 16-pin MLP package measuring 3mm x 3mm with a height of 750μm. Designed for efficient switching, this device operates over a supply voltage range between 1.65V and 4.3V, and withstands operating temperatures ranging from -40°C to 85°C, making it suitable for a variety of industrial and commercial electronic applications.
This analogue switch features a maximum on state resistance of 12 ohms, ensuring low signal loss and maintaining signal integrity during switching operations. The single 4PDT (four-pole double-throw) configuration allows complex signal routing, making it ideal for multiplexing in USB interfaces, audio, video, and other communication signals.
Its compact 16-pin MLP surface-mount package supports high density PCB assembly, aiding designers in saving board space and reducing overall component size.
This device is beneficial in industrial control systems, telecommunications, data acquisition, and instrumentation where precise analogue signal switching is required. It enables efficient routing and multiplexing of analogue signals with minimal distortion and low power consumption.
Key features include a robust voltage operating range, reliable temperature tolerance, low on resistance, and a versatile 4PDT switch configuration. The compact and surface-mount design simplifies integration into various electronic assemblies.
Single 4PDT switch configuration for flexible signal multiplexing. Supply voltage range from 1.65V to 4.3V. Operating temperature range from -40°C to 85°C. Maximum on state resistance of 12 ohms for signal clarity. Compact 3mm x 3mm x 750μm MLP package for surface mount.
Suitable for USB, audio, and video signal routing applications.
Explore the Electronics & Electricals category at EnvMart for a wide range of multiplexer and demultiplexer ICs, including Analogue Switches like the onsemi FSA2567MPX. Equip your designs with proven semiconductor solutions for advanced signal management.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The FSA2567MPX operates within a supply voltage range of 1.65V to 4.3V.
It features a maximum on state resistance of 12 ohms, which helps maintain signal integrity during switching.
This model has compact dimensions of 3mm x 3mm with a height of 750μm, suitable for surface mounting.
It can operate within a temperature range of -40°C to 85°C, making it suitable for various applications.
The FSA2567MPX features a single 4PDT (four-pole double-throw) configuration for versatile signal routing.
This analogue switch is housed in a standard MLP (Micro Leadframe Package) surface-mount package.
It has a total of 16 pins, facilitating its integration into electronic circuits.
This model is ideal for applications involving USB, audio, and video signal routing.
The FSA2567MPX contains 1 element per chip, allowing for focused signal switching.
Yes, its compact design supports high-density PCB assembly, aiding in space-saving designs.
It is part of the FSA2567 series, which includes various analogue switches.
The country of origin for this product is India.
