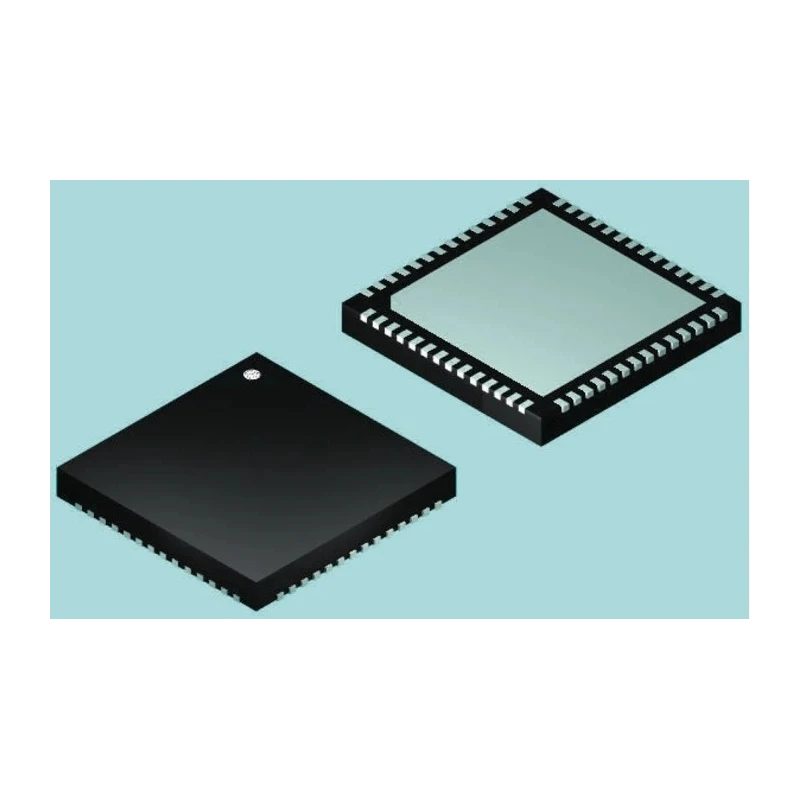

Microchip 16 bit PIC24FJ Microcontroller, 32 MHz, 64kB FLASH, 44-Pin QFN
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 950μm |
| Length | 8mm |
| Model | PIC24FJ |
| Width | 8mm |
| Mount Type | Surface |
| Series | PIC24FJ |
| Maximum Operating Temperature | 85°C |
| Package Type | QFN |
| Minimum Operating Temperature | -40°C |
| Ram size | 8kB |
| Standards/Approvals | RoHS |
| Pin Count | 44 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 64kB |
| Maximum Clock Frequency | 32MHz |
| Number of Programmable I/Os | 35 |
| Analogue Comparators | 3 |
| Maximum Expanded Memory Size | 64MB |
| Number of Timers | 5 |
| Instruction Set Architecture | RISC |
| ADCs | 13 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- Features a RISC 16-bit PIC core architecture for efficient processing.
- Equipped with 35 programmable I/O pins for flexible interfacing.
- Includes 8kB RAM and 13 analog-to-digital converters with 10-bit resolution.
- Operates within a voltage range of 2V to 3.6V for versatile power requirements.
- Designed to function reliably between -40°C to 85°C operating temperatures.
- Contains three analogue comparators and five timers for precise control.
- Compact 8mm x 8mm size with a thickness of 950μm suitable for surface mounting.
- Meets RoHS compliance standards for environmental safety.
Product Description
Microchip PIC24FJ64GA004-I/ML is a high-performance 16 bit microcontroller designed with a RISC architecture core delivering up to 32 MHz clock frequency and 64kB flash program memory. It is housed in a compact 44-Pin QFN surface mount package measuring 8 mm by 8 mm with a height of 950 micrometers, ideal for space-constrained embedded systems.
This device features 35 programmable I/O pins along with 8kB of RAM and a 13-channel 10-bit ADC subsystem, making it suitable for complex signal processing and control tasks. The microcontroller supports a power supply range from 2V to 3.6V, supporting battery-powered and low-voltage applications.
Designed for rugged industrial environments, it operates reliably across a temperature range from -40°C to 85°C. Integrated peripherals include three analog comparators and five timers, facilitating extensive real-time monitoring and timing capabilities.
While not meeting automotive standards, it complies with RoHS directives, ensuring reduced hazardous substances. Typical applications include industrial control systems, consumer electronics, instrumentation, and automation.
RISC 16-bit PIC core ensures efficient instruction execution. 64kB FLASH program memory for robust embedded applications. Eight kilobytes RAM enhances multi-tasking capability. 13x 10-bit ADC channels enable precise analog input measurement.
Wide power supply voltage range from 2V to 3.6V supports flexible powering options. Five timers and three analog comparators support complex timing and signal comparison. Compact 44-pin QFN package for easy surface mounting and minimal PCB space.
Operating temperature between -40°C and 85°C ensures industrial grade reliability. RoHS compliant, environmentally friendly microcontroller solution.
Choose Microchip PIC24FJ64GA004-I/ML for reliable microcontroller performance in diverse electronic and industrial embedded system applications. Explore more Microcontrollers and components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 32 MHz.
It features a program memory size of 64 kB.
This model has 35 programmable I/O pins for flexible interfacing.
It operates reliably between -40°C and 85°C.
The microcontroller is housed in a QFN package with a height of 950 μm.
It uses FLASH memory for program storage.
This model includes 13 analog-to-digital converters with 10-bit resolution.
The supply voltage range is from 2V to 3.6V.
It includes three analog comparators and five timers for enhanced control capabilities.
Yes, it meets RoHS compliance standards for environmental safety.
The QFN package measures 8 mm by 8 mm.
It utilizes a RISC instruction set architecture for efficient processing.
