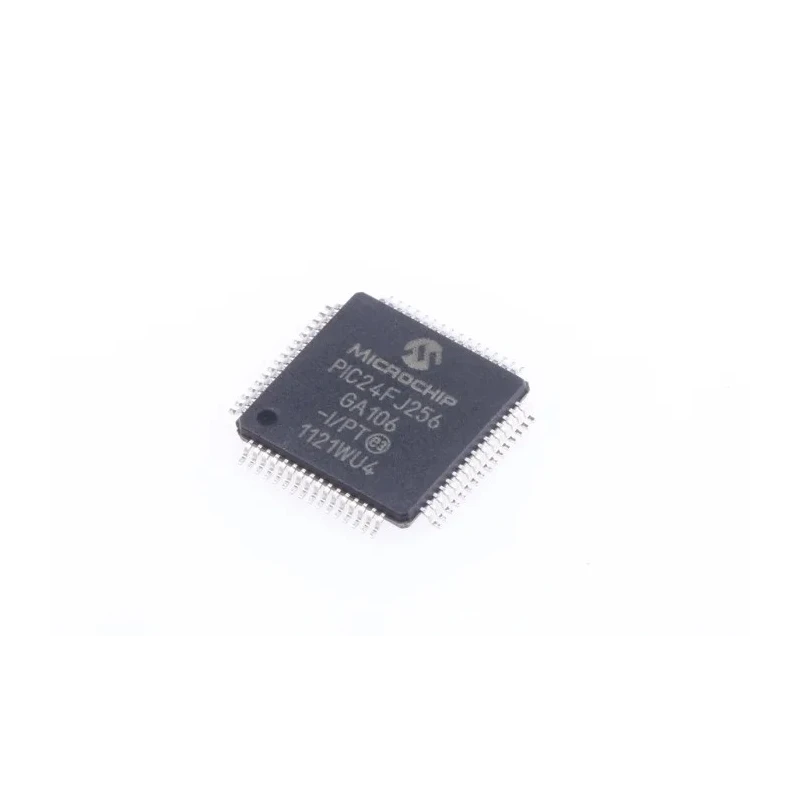

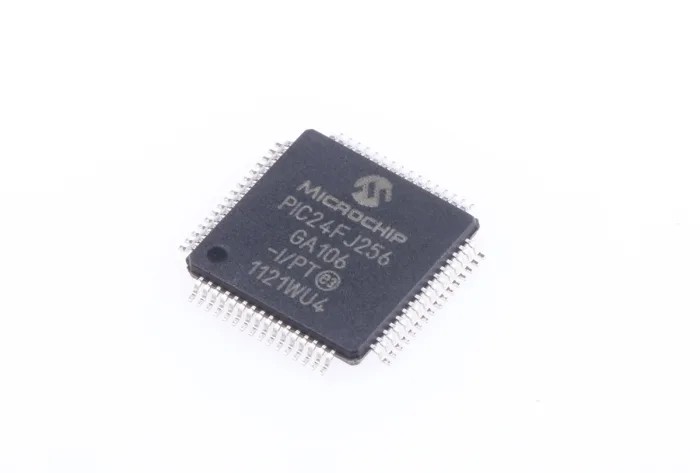

Microchip 16-Bit PIC24FJ Microcontroller, 32 MHz, 256kB FLASH, 64-Pin TQFP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.05mm |
| Length | 10mm |
| Model | PIC24FJ |
| Width | 10mm |
| Mount Type | Surface |
| Series | PIC24FJ |
| Maximum Operating Temperature | 85°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 16kB |
| Standards/Approvals | RoHS |
| Pin Count | 64 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 256kB |
| Maximum Clock Frequency | 32MHz |
| Number of Programmable I/Os | 46 |
| Analogue Comparators | 3 |
| Maximum Expanded Memory Size | 12MB |
| Number of Timers | 5 |
| Instruction Set Architecture | RISC |
| ADCs | 16 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- Operates with a maximum supply voltage of 3.6V and minimum of 2V.
- Contains 16kB RAM and supports 46 programmable I/Os.
- Equipped with 3 analogue comparators and 16 10-bit ADC channels.
- Designed with RISC instruction set architecture for efficient processing.
- Operates reliably between -40°C to 85°C temperature range.
- Includes 5 timers for versatile application timing needs.
- Manufactured in a compact 10mm x 10mm x 1.05mm TQFP surface mount package.
- Program memory is of FLASH type, allowing for reprogramming flexibility.
Product Description
Microchip PIC24FJ256GA106-I/PT is a 16-bit microcontroller designed for high-performance embedded applications. Featuring a maximum clock frequency of 32 MHz, it offers 256kB of FLASH program memory and 16kB RAM to support complex operations. The device incorporates 46 programmable input/output ports suitable for versatile interfacing.
This microcontroller utilizes the efficient RISC architecture, helping deliver optimal processing power while maintaining low power consumption. Integrated 3 analogue comparators and 16 channels of 10-bit analog-to-digital converters expand its application scope in sensor interfacing and signal processing.
Housed in a 64-pin TQFP surface mount package measuring 10mm by 10mm with a height of 1.05mm, it fits compact embedded designs. Its operating voltage ranges from 2V minimum to 3.6V maximum, making it compatible with a range of power sources. The device maintains stable operation in harsh environmental conditions from -40°C to 85°C.
With 5 timers onboard, it supports concurrent timing operations essential for real-time control systems. The program memory type is FLASH, allowing easy reprogramming during development and production.
Being RoHS compliant ensures that this microcontroller adheres to environmental standards, suitable for commercial, industrial, automotive, and embedded system applications. Operates within a 2V to 3.6V supply voltage range for flexible power management.
64-pin TQFP package enables surface mounting in compact circuit layouts. Maximum clock speed of 32 MHz provides responsive processing capabilities. 16kB RAM supports running multiple tasks and buffering. Incorporates multiple ADC channels for precise analog signal measurement.
Suitable for industrial, automotive, consumer electronics, and embedded systems development. Explore Microchip Microcontrollers and similar products in the Electronics & Electricals category at EnvMart for your embedded design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 32 MHz.
It operates within a supply voltage range of 2V to 3.6V.
This microcontroller features 256kB of FLASH program memory.
It can operate reliably within a temperature range of -40°C to 85°C.
It supports 46 programmable input/output ports.
This microcontroller is housed in a 64-pin TQFP surface mount package.
It includes 16kB of RAM for supporting operations.
It incorporates 16 channels of 10-bit analog-to-digital converters (ADCs).
There are 5 timers onboard for versatile application timing needs.
It utilizes a RISC instruction set architecture for efficient processing.
Yes, it is RoHS compliant, adhering to environmental standards.
The height of the TQFP package is 1.05mm.
