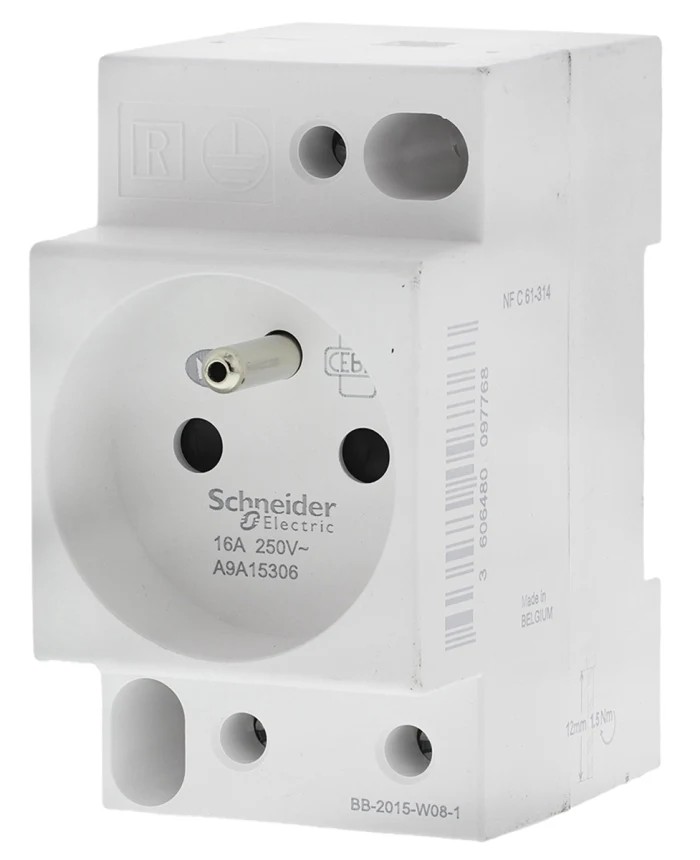

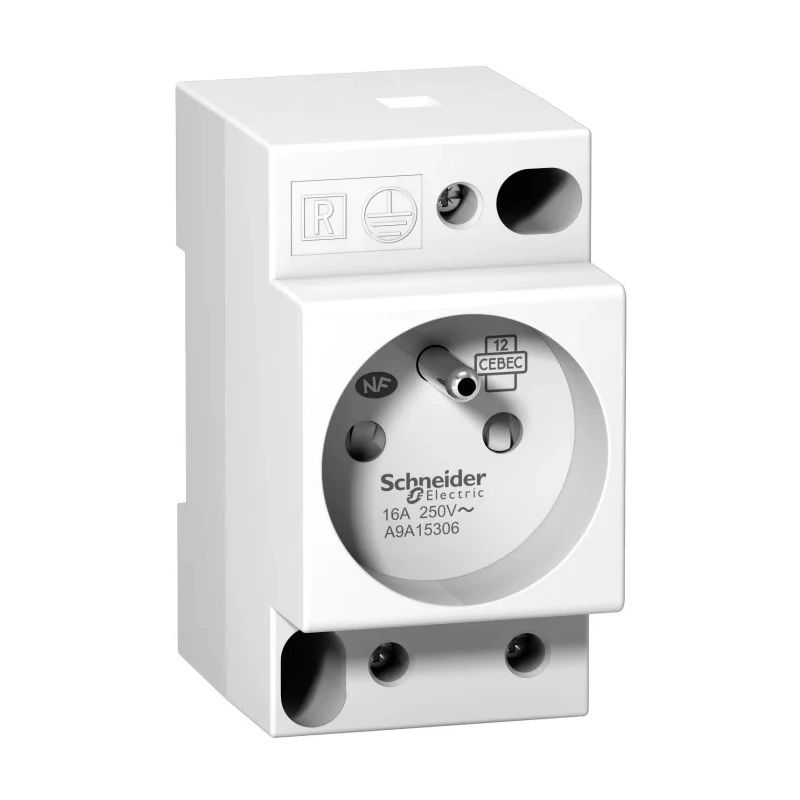

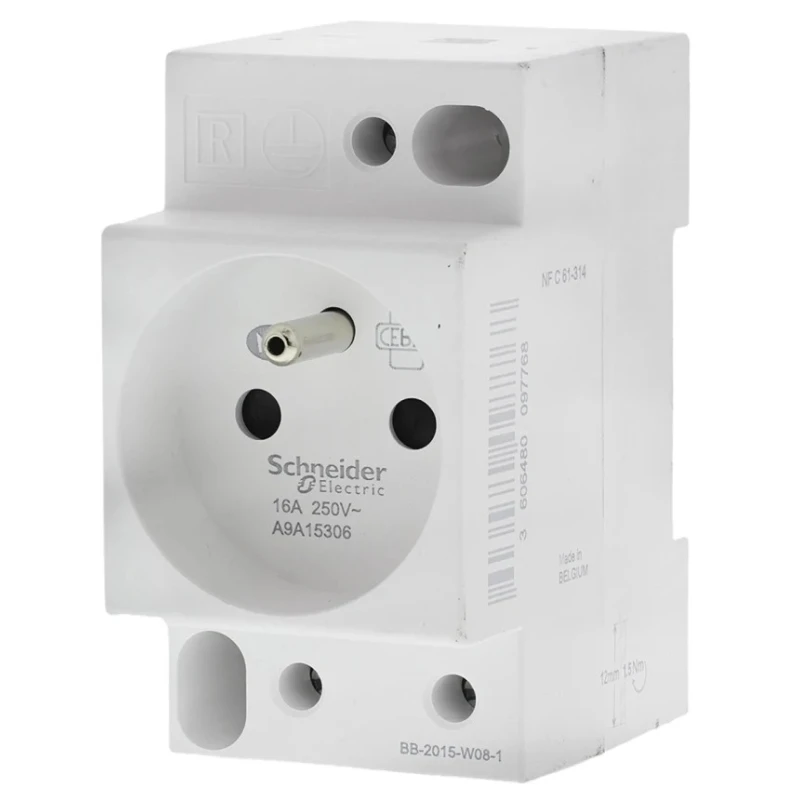

Schneider Electric 16A France Modular Socket White, DIN Rail Mount, Tunnel Termination A9A15306
Specifications
| Country of Origin | Belgium |
|---|---|
| Brand | Schneider Electric |
| Colour | White |
| Orientation | Straight |
| Current | 16A |
| Model | A9A15306 |
| Mount Type | DIN Rail |
| Series | iC60 |
| Termination Type | Tunnel |
| Standards/Approvals | RoHS |
| Pole Format | 2+E |
| Connector Gender | Female |
| Mains Socket Type | Type E |
| Number of USB Ports | 0 |
| Country | France |
| French Mains Connector, 16A, DIN Rail Mount, 250 V acBrand | Merlin Gerin |
Key Features
- Rated for 16A current and 250V AC voltage for safe operation.
- Compact dimensions of 84mm height, 45mm width, and 60mm depth.
- Supports flexible cables up to 6mm² and rigid cables up to 10mm².
- Designed for fixed mounting on a symmetrical DIN rail for secure installation.
- Features a Type E mains socket with female connector and tunnel termination.
- Complies with RoHS standards and IEC approvals for quality assurance.
- IP20 protection rating safeguards against dust ingress.
- Operates reliably within temperature range of -25°C to 70°C and up to 95% relative humidity at 55°C.
Product Description
Schneider Electric A9A15306 16A France Modular Socket with white finish is designed for secure and efficient electrical connections in industrial and automation settings. The DIN rail mounting type allows stable and compact integration within electrical panels and systems. Rated for 16A current and 250V AC, this female socket supports Type E configuration with 2+E pole format, making it suitable for French mains applications.
Its tunnel termination type supports both flexible and rigid cables up to 6mm² and 10mm² respectively, ensuring compatibility with diverse wiring setups. The product withstands demanding environmental conditions ranging from -25°C to 70°C and maintains reliable operation with relative humidity up to 95% at 55°C.
The socket dimensions of 84mm height, 45mm width, and 60mm depth enable space-saving installations on symmetrical DIN rails, making it ideal for compact electrical panel designs. With IP20 ingress protection and RoHS compliance, this modular socket meets stringent quality and safety standards for industrial use.
Applications include connectivity for electrical equipment in industrial control panels and integration with automation control systems requiring Type E socket configurations. The product is part of the iC60 series and originates from Belgium ensuring high manufacturing standards.
Rated 16A current and 250V AC voltage for industrial safety. DIN rail mounting type provides a compact and secure installation. Supports flexible cables up to 6mm² and rigid cables up to 10mm². Type E mains socket with female connector and tunnel termination.
Compact dimensions: 84mm x 45mm x 60mm for space optimization. IP20 protection rating against dust ingress. Operational temperature from -25°C to 70°C and humidity tolerance up to 95% at 55°C. RoHS compliant with IEC standard approvals.
Explore more Schneider Electric components and connectors on EnvMart for your industrial and electrical system requirements.
Explore more products in our DIN Rail Connector category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for 16A current and 250V AC voltage, ensuring safe operation in industrial applications.
It is designed for DIN rail mounting, allowing for secure and compact installation within electrical panels.
The dimensions are 84mm in height, 45mm in width, and 60mm in depth, making it suitable for space-constrained installations.
It supports flexible cables up to 6mm² and rigid cables up to 10mm², accommodating various wiring setups.
This socket has an IP20 protection rating, which safeguards against dust ingress.
It operates reliably within a temperature range of -25°C to 70°C, suitable for various environmental conditions.
This model can withstand up to 95% relative humidity at 55°C, ensuring reliable performance in humid environments.
It features a Type E mains socket with a female connector, suitable for French mains applications.
Yes, it complies with RoHS standards and has IEC approvals, ensuring adherence to quality and safety regulations.
This model is part of the iC60 series, which is designed for efficient electrical connections in industrial settings.
The socket originates from Belgium, ensuring it meets high manufacturing standards.
It is intended for use in industrial control panels and integration with automation control systems requiring Type E configurations.
