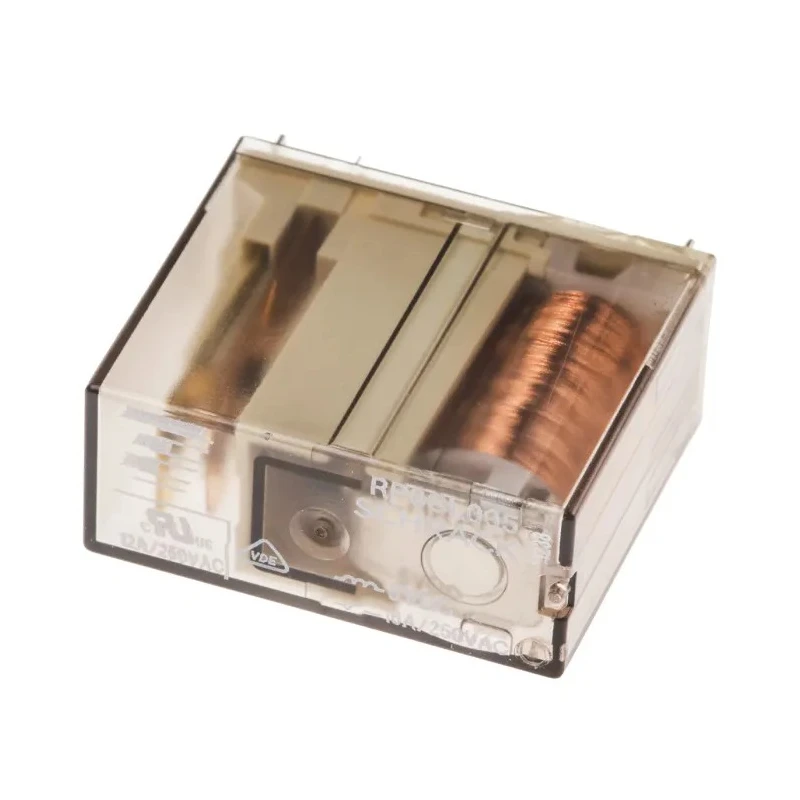

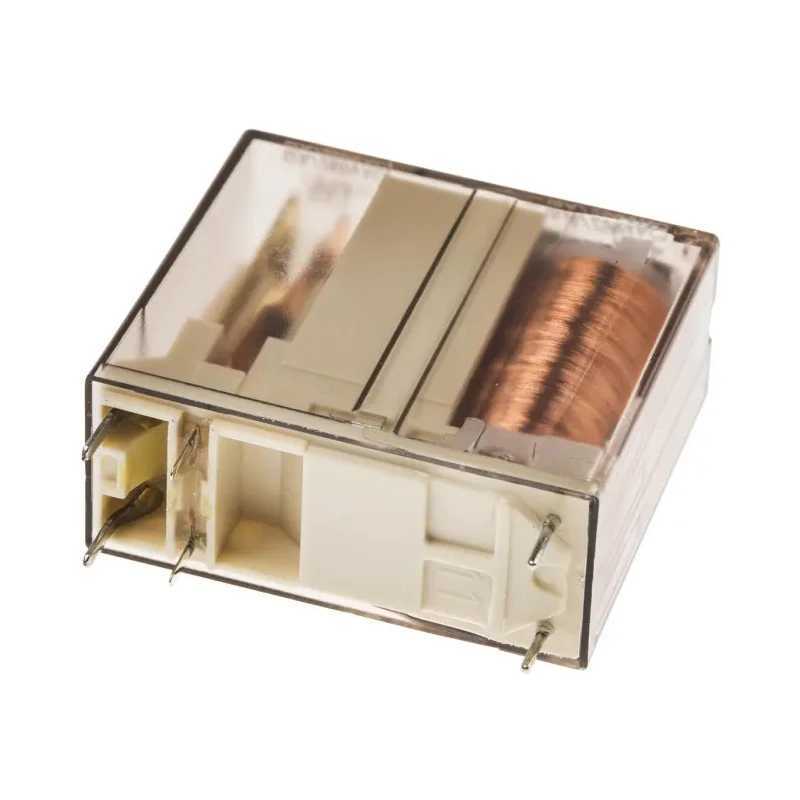

TE Connectivity RP3SL Series PCB Power Relay, 5V dc Coil, SPST Contact, 16A Switching Current 1393230-7

TE Connectivity 1393230-7 is a PCB Power Relay belonging to the RP3SL Series, engineered for reliable switching in industrial, automation, and electrical control applications. It operates on a 5V DC coil voltage and supports a high switching current of 16A with SPST contact configuration, providing efficient power handling on printed circuit boards.

The relay features a compact form factor with dimensions of 29mm length, 12.6mm width, and 25.5mm height, making it suitable for dense PCB layouts. It includes solder-type terminals designed for PCB mounting, facilitating secure and straightforward installation.

The coil resistance stands at 54 ohms, drawing 500mW coil power, ensuring low energy consumption. It is designed to operate reliably across a temperature range from -40°C to +70°C, fitting demanding environmental conditions in industrial settings.

High-quality silver alloy contacts are used to enhance durability and ensure minimal contact resistance, supporting switching voltages up to 300V DC and 400V AC for versatile power relay requirements. The relay meets multiple international standards including IEC, REACH, RoHS, UL, and VDE, confirming its safety and environmental compliance.

This relay finds extensive use in lighting control systems, timing circuits, motor control applications, and home automation devices, offering dependable electrical switching with 4000Vac isolation between coil and contacts for added safety and noise immunity.

Operates with a coil voltage of 5V DC for efficient control. Single Pole Single Throw (SPST) contact configuration ensures reliable switching. Capable of switching currents up to 16 amperes for robust electrical performance.

Designed for PCB mounting with solder terminal type for easy integration. Compact dimensions with length 29mm, width 12.6mm, and height 25.5mm. Coil resistance of 54 ohms with coil power consumption of 500mW. Operating temperature range from -40°C to +70°C suitable for harsh conditions.

Silver alloy contact material ensures durability and low contact resistance. Complies with IEC, REACH, RoHS, UL, and VDE standards for quality assurance. Applications include lighting control, timers, motor control, and home automation systems.

For those engaged in electronics design and industrial automation, TE Connectivity's 1393230-7 relay offers a proven solution for power switching needs. Explore EnvMart's extensive catalog for related relays and components to optimize your electrical projects.
