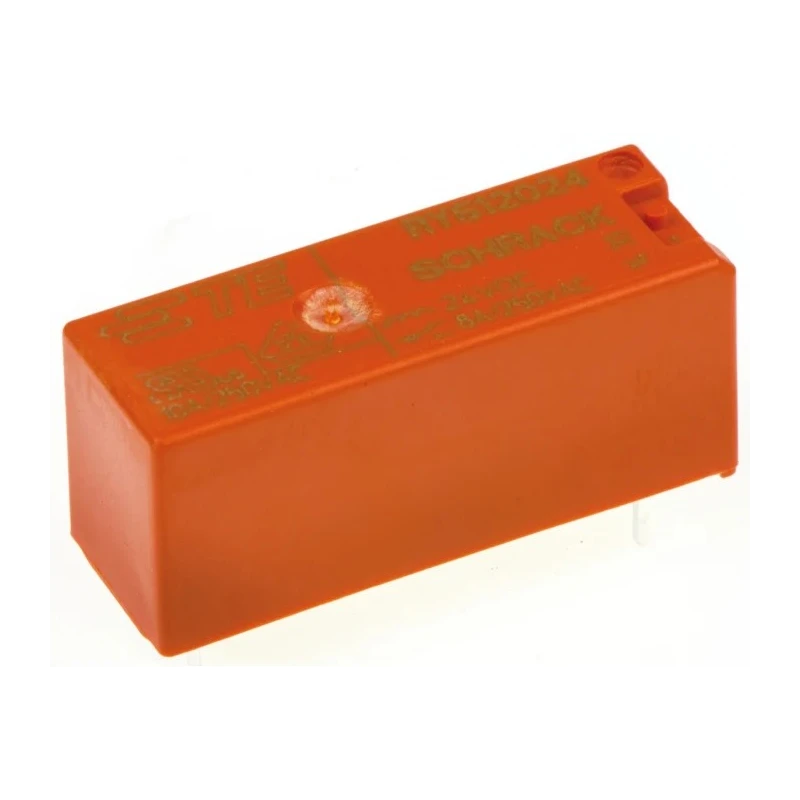

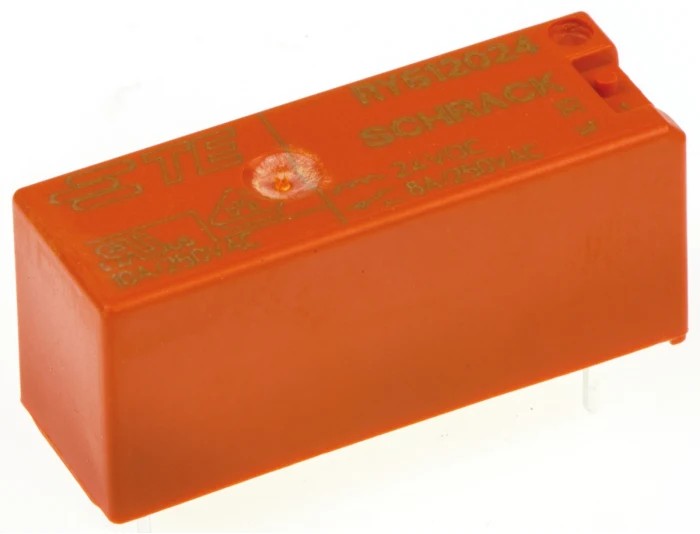

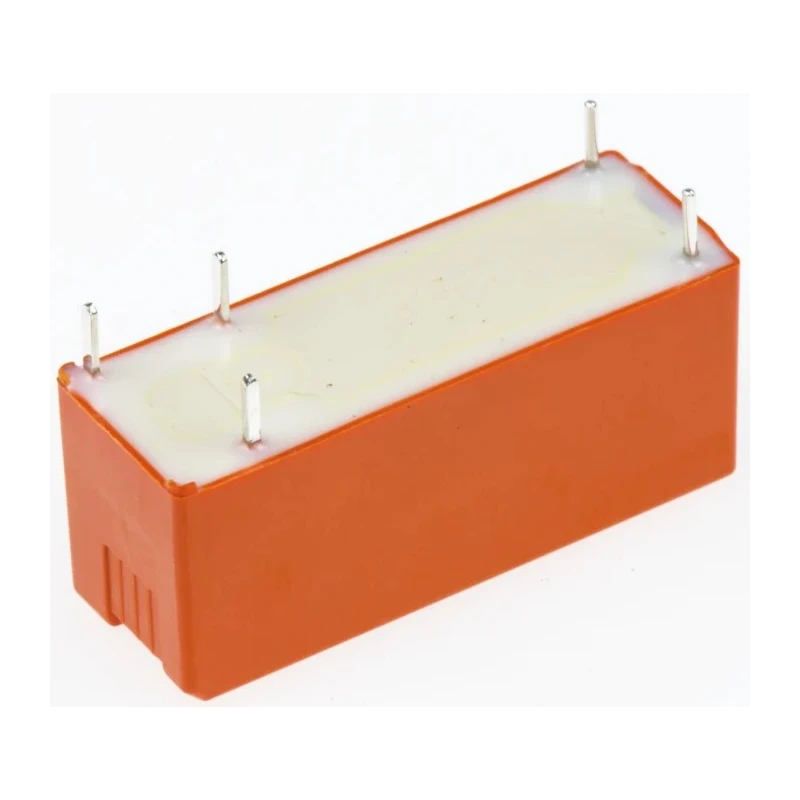

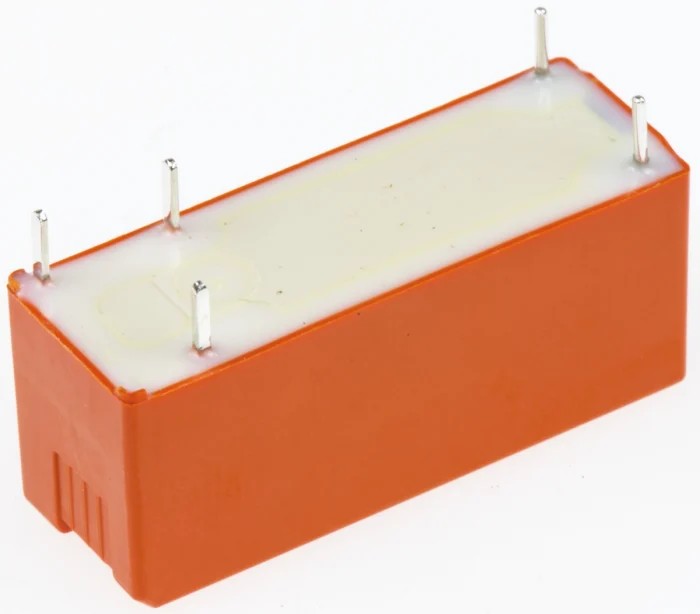

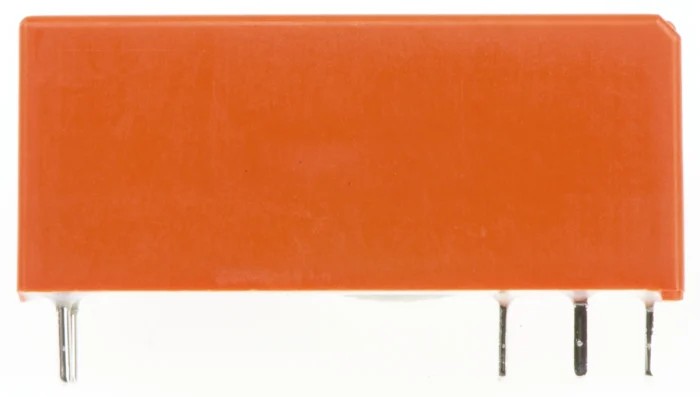

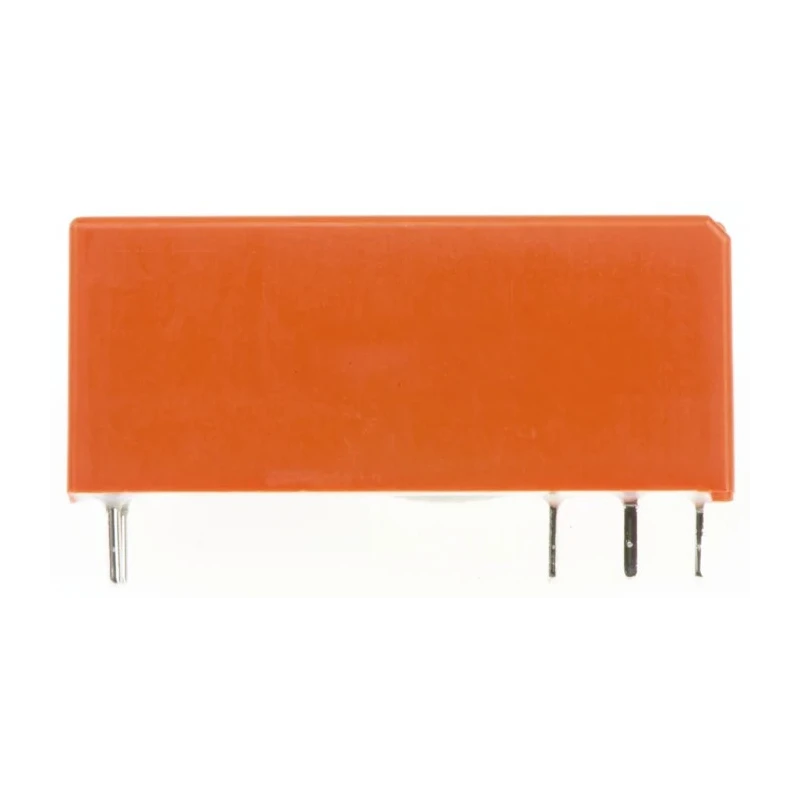

TE Connectivity PCB Power Relay SPDT, 24V DC Coil Voltage, 8A Switching Current, Gold Plated Contacts RY612024
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | TE Connectivity |
| Height | 12.3mm |
| Length | 28.5mm |
| Model | RY612024 |
| Width | 10.1mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | RY II |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | Solder |
| Standards/Approvals | IEC 60335-1, RoHS, VDE |
| Coil Resistance | 2.4kΩ |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 250mW |
Key Features
- Features a compact design with dimensions 28.5mm x 12.3mm x 10.1mm.
- Gold plated contact material for enhanced conductivity and corrosion resistance.
- Coil resistance of 2.4 kΩ with low coil power consumption of 250 mW.
- Operating temperature range from -40°C up to 70°C suitable for diverse environments.
- Suitable for PCB mount applications with solder terminal type for secure installation.
- Switching capacity up to 2 kVA and AC switching voltage of 400V AC.
- Certified to IEC 60335-1 standards and RoHS compliant, approved by VDE and UL.
- Non-latching relay type ideal for general purpose power switching in electrical circuits.
Product Description
TE Connectivity RY612024 is a PCB mount power relay designed for reliable switching applications requiring 24V DC coil voltage and 8A current rating. This SPDT relay features gold plated contacts that provide excellent conductivity and longevity in industrial environments. The relay is constructed with a compact form factor measuring 28.5mm in length, 12.3mm in height, and 10.1mm in width, making it suitable for use in constrained PCB layouts.
It operates within a wide temperature range from -40°C to 70°C, ensuring dependable performance in harsh conditions. The coil resistance is 2.4 kΩ, allowing for low power consumption of only 250 mW. The relay supports switching of AC voltages up to 400V with a maximum switching power of 2 kVA, making it versatile for industrial electrical control tasks.
Mounting is via PCB with solder terminals for secure and stable installation. The TE Connectivity RY series relay complies with international safety and quality standards including IEC 60335-1, RoHS, and is certified by VDE and UL, providing assurance of its quality and safety in various industrial and automation applications.
This non-latching relay offers a reliable switching solution for use in control systems, automation equipment, and electrical devices requiring precise switching operation. Its robust build and certification approvals make it a suitable choice for industrial, electrical automation, manufacturing, and HVAC systems.
Compact size with dimensions 28.5mm x 12.3mm x 10.1mm for space-saving PCB mounting. Gold plated SPDT contacts ensure reliable signal switching and durability. Low coil power consumption of 250 mW with coil resistance of 2.4 kΩ.
Wide operating temperature range from -40°C to 70°C supports harsh environments. Certified to IEC 60335-1 safety standard and RoHS compliant for environmental safety. Switching current rating of 8A and AC switching voltage of 400V for versatile applications.
Non-latching type for general-purpose power relay usage in automation and control. Explore more high-quality relays and power relay modules in the Electronics & Electricals category at EnvMart to meet all your industrial automation requirements.
Explore more products in our Power Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this power relay is 24V DC.
This model has a maximum switching current rating of 8A.
The dimensions of this relay are 28.5mm in length, 12.3mm in height, and 10.1mm in width.
The contact configuration of this relay is SPDT (Single Pole Double Throw).
The coil resistance of this relay is 2.4 kΩ.
This relay operates within a temperature range of -40°C to 70°C.
This relay uses PCB mounting with solder terminals for secure installation.
The maximum AC switching voltage for this model is 400V AC.
The coil power consumption of this relay is 250 mW.
This relay is certified to IEC 60335-1 standards and is RoHS compliant, with approvals from VDE and UL.
The switching capacity of this relay is up to 2 kVA.
This relay is suitable for general-purpose power switching in control systems, automation equipment, and electrical devices.
