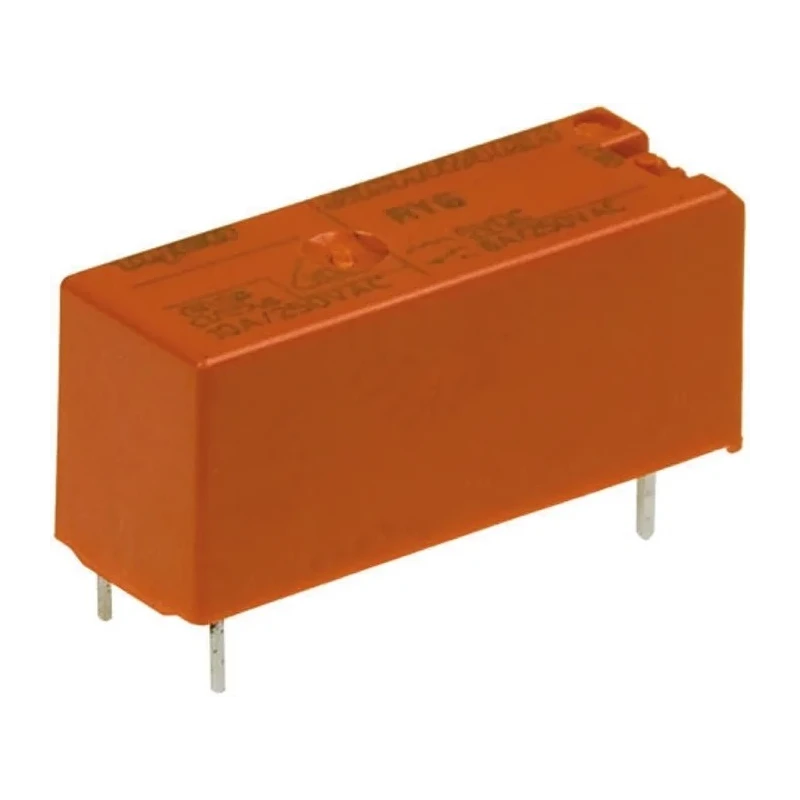

TE Connectivity PCB Power Relay with 12V DC Coil, 8A Switching Current, SPDT Contact Configuration RY612012
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | TE Connectivity |
| Operating Temperature | -40 to + 70°C |
| Dimensions | H 12.3mm, W 28.5mm, D 10mm |
| Height | 12.3mm |
| Length | 28.5mm |
| Model | RY612012 |
| Width | 10.1mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | RY II |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | Solder |
| Standards/Approvals | IEC 60335-1, RoHS, VDE |
| Coil Resistance | 627Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 250mW |
| Creepage and clearance | 8mm |
Key Features
- Operates with a 12V DC coil voltage for efficient control.
- Supports an 8A switching current suitable for moderate power circuits.
- Employs SPDT contact configuration for versatile switching options.
- Designed for PCB mounting with solder terminals for secure installation.
- Gold plated contact material ensures durability and reliable conductivity.
- Compliance with IEC 60335-1, RoHS, and VDE standards.
- Operating temperature range from -40°C to 70°C suits diverse industrial environments.
- Low coil power consumption of 250mW.
Product Description
TE Connectivity RY612012 is a high-quality PCB Power Relay designed for industrial and electrical automation purposes. It operates at a coil voltage of 12V DC and supports a switching current of up to 8A with a SPDT contact configuration, making it suitable for diverse applications requiring reliable switching functions.
This relay is part of the RY II series and features a compact design with dimensions of 28.5mm length, 10.1mm width, and 12.3mm height, ideal for space-limited PCB assemblies. The gold plated contacts provide excellent conductivity and durability, ensuring consistent operation over time.
It has a coil resistance of 627Ω and low coil power consumption of 250mW, contributing to energy-efficient control circuits. The relay supports switching AC voltage up to 400V AC, with a rated switching power of 2kVAC, suitable for moderate power applications.
The device complies with international safety and quality standards including IEC 60335-1, RoHS, and VDE. Its operating temperature range from -40°C to 70°C makes it adaptable to various industrial, manufacturing, and automation environments.
This relay is well suited for use in industrial automation systems, electrical and electronic control devices, manufacturing equipment, and HVAC systems where robust and compact PCB relays are required.
Operates with a 12V DC coil voltage for efficient control. Supports an 8A switching current suitable for moderate power circuits. Employs SPDT contact configuration for versatile switching options. Designed for PCB mounting with solder terminals for secure installation.
Compact dimensions: Height 12.3mm, Width 10.1mm, Length 28.5mm. Gold plated contact material ensures durability and reliable conductivity. Compliance with IEC 60335-1, RoHS, and VDE standards. Operating temperature range from -40°C to 70°C suits diverse industrial environments.
Low coil power consumption of 250mW. Country of origin: Czech Republic.
This TE Connectivity RY612012 PCB Power Relay provides reliable switching performance and compact size, ideal for enhancing production efficiency in various electrical and automation applications. Explore EnvMart for more Power Relays and electrical components by TE Connectivity and other top brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 12V DC.
It supports a maximum switching current of 8A.
This model employs a Single Pole Double Throw (SPDT) contact configuration.
The relay has dimensions of 28.5mm in length, 10.1mm in width, and 12.3mm in height.
The operating temperature range is from -40°C to 70°C.
The coil resistance is 627Ω.
The coil has a low power consumption of 250mW.
It complies with IEC 60335-1, RoHS, and VDE standards.
This relay is designed for PCB mounting with solder terminals.
It can switch AC voltage up to 400V AC.
The contacts are made of gold plated material, ensuring reliable conductivity.
This relay is suitable for industrial automation systems, electrical and electronic control devices, manufacturing equipment, and HVAC systems.
