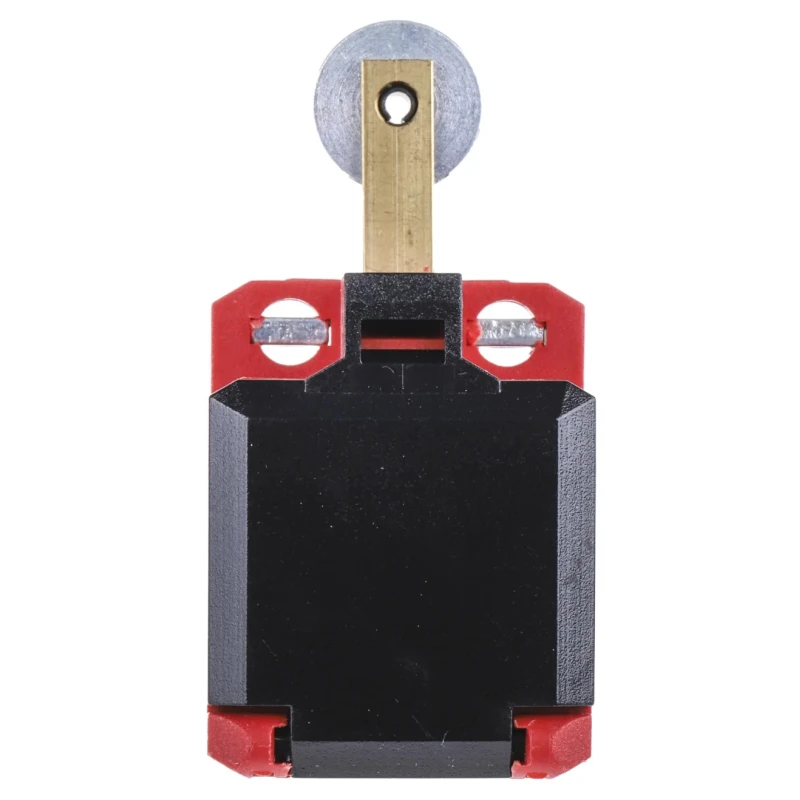

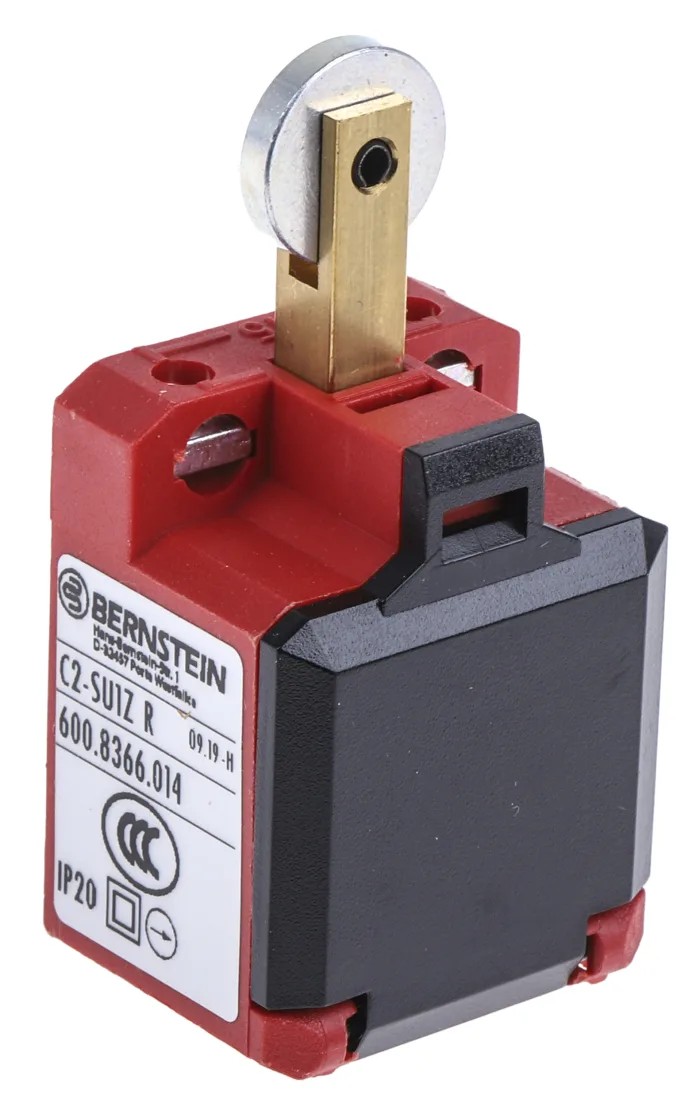

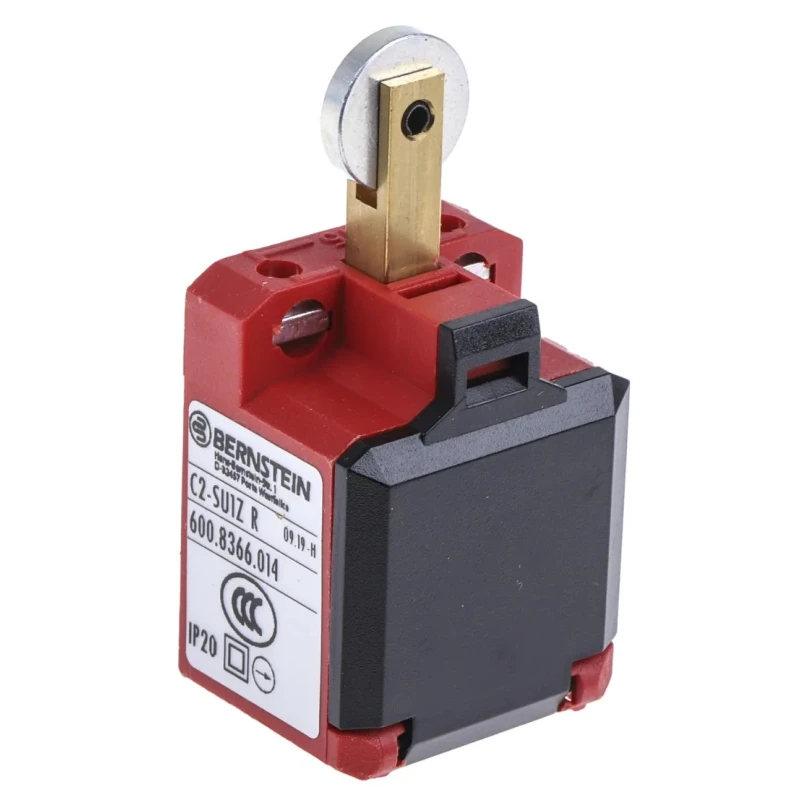

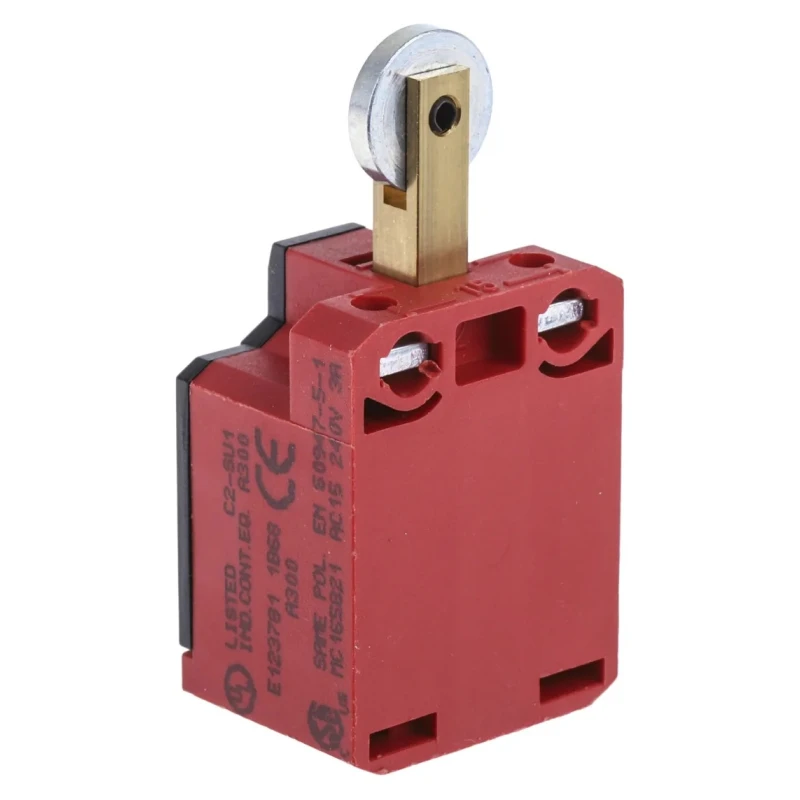

Bernstein AG C2 Series Roller Interlock Switch, 1 NO/1 NC, IP20, Glass Reinforced Plastic Housing, 250V AC, 10A IP20

Bernstein AG IP20 Roller Interlock Switch 1 NO/1 NC is a compact and reliable safety switch designed for use in industrial, automation, and electrical applications. This switch features a glass reinforced plastic housing that provides robust protection while maintaining a light form factor. Its IP20 rating makes it well-suited for installation in indoor environments where protection against solid objects larger than 12 mm is required.

The C2 Series switch includes a roller actuator for smooth operating action and slow action contacts configured with one normally open (NO) and one normally closed (NC) contact. This allows for versatile control and monitoring within safety circuits. The switch is recommended for front mounting and uses a rectangular cable gland of 8.5 x 3.5 mm for conduit entry, facilitating secure electrical connections.

With a switching capacity of 10A at 250V AC, the switch supports a broad range of low to moderate power industrial equipment controls. It operates reliably within a temperature range of 30°C minimum to 80°C maximum. The mechanical life of 3,000,000 cycles highlights its durability and suitability for demanding mechanical environments.

The product complies with important international standards, including CSA, RoHS, and UL approvals, assuring customers of safety and manufacturing quality. Originating from Hungary, this model ensures high manufacturing standards.

Glass reinforced plastic housing ensures durability and resistance. Rated for 250V AC voltage and 10A switching current capacity. IP20 protection rating suitable for indoor and controlled environments. Features slow action contacts with 1 normally open and 1 normally closed configuration.

Compact dimensions: 44mm length, 26mm width, and 21mm depth. Equipped with a roller actuator type for reliable operation. Suitable for front mounting with rectangular cable gland conduit entry. Mechanical life rated for 3,000,000 cycles ensures long-term reliability.

Certified with CSA, RoHS, UL standards for safety compliance.

This interlock switch is ideal for industrial automation, electrical control panels, machinery safety applications, and equipment monitoring. Explore more safety switches and related automation components in the Electronics & Electricals category at EnvMart.
