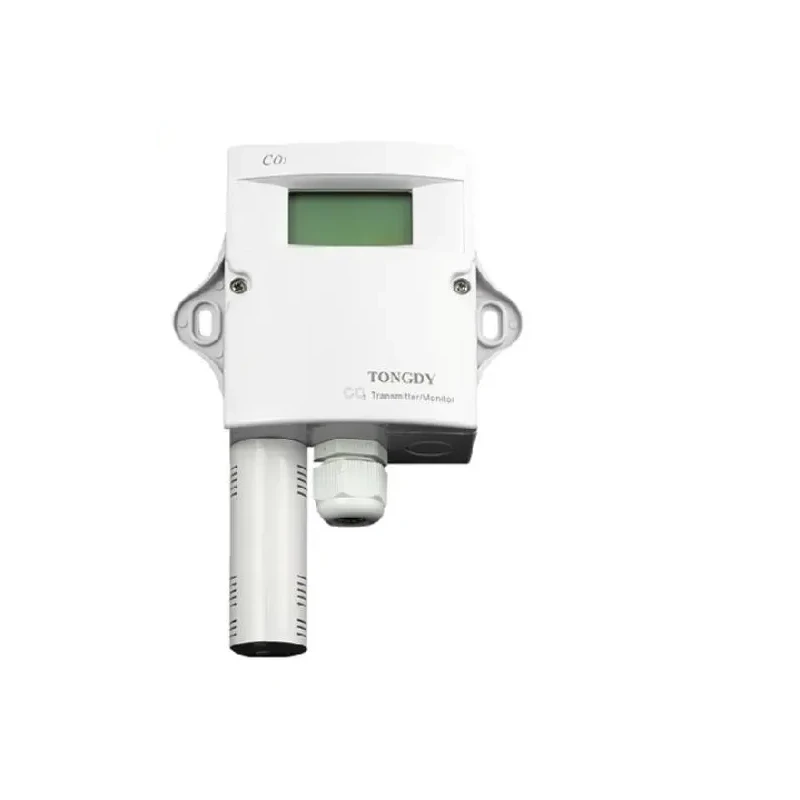

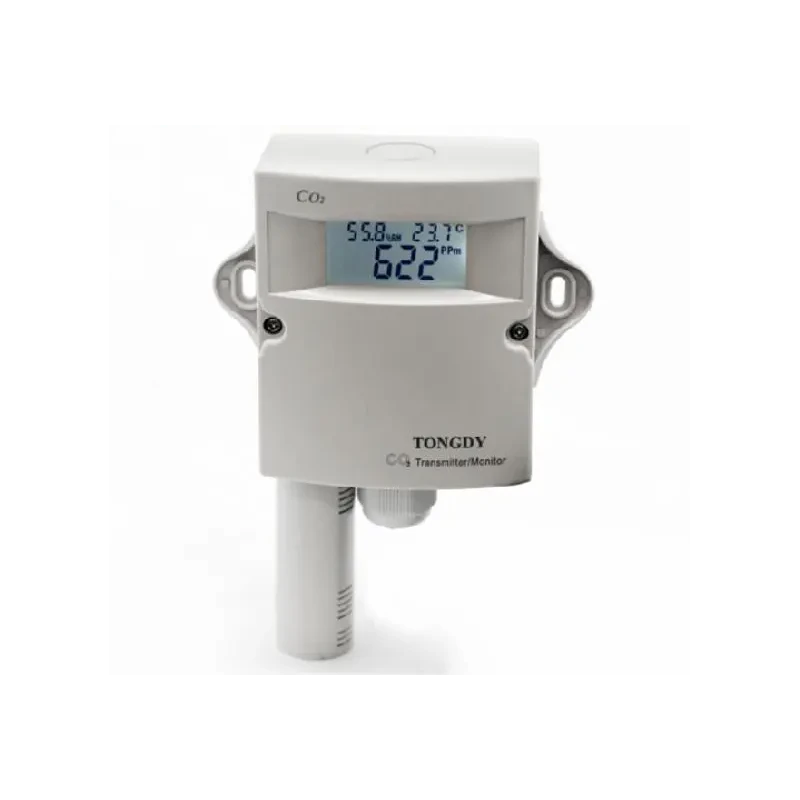

Carbon Dioxide Detector | Transmitter With LCD TGP318L

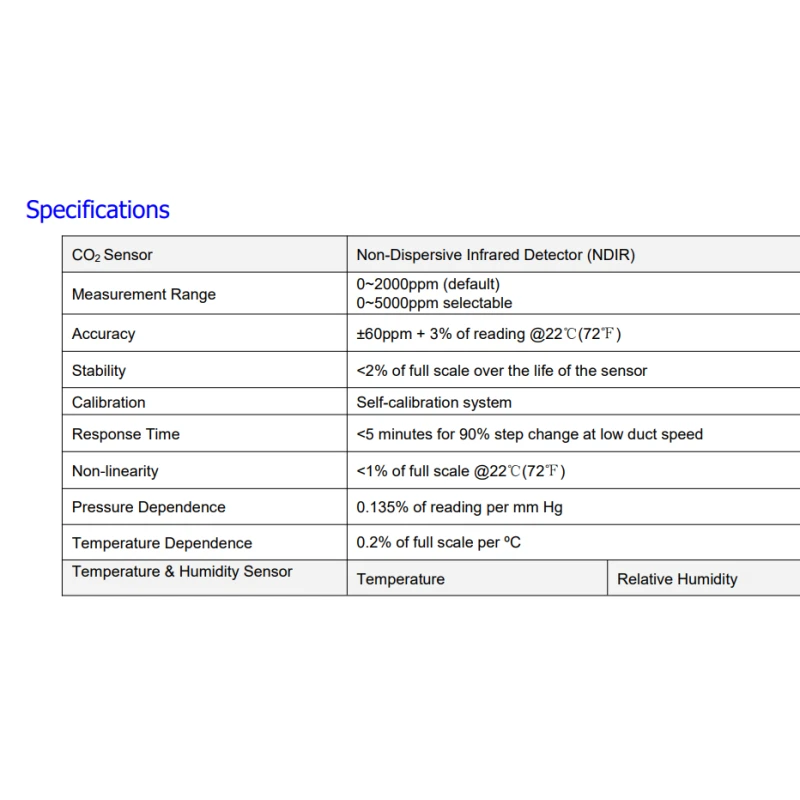

Specifications
| Measurement Range | 0~2000ppm (default) 0~5000ppm selectable |
|---|---|
| Description | 3X linear analog outputs for CO2 measurement temperature &humidity. Modbus RS485 interface LCD display CO2 and temperature & humidity |
| Applications | HVAC Systems In Bas To Detect The Co2 Level And The Data Transmittance Ventilation Control System |
| Response time | Less Than 5 minutes for 90% step change at low duct speed |
| Calibration | Self-calibration system |
| Model | TGP318L |
| Stability | Less Than 2% of full scale over the life of the senso |
| CO2 Sensor | Non-Dispersive Infrared Detector (NDIR |
| Pressure Dependence | 0.135% of reading per mm Hg |
Key Features
- Combined temperature and humidity sensor provide the highest accuracy in full range
- Modbus RS485 communication interface makes usage and test more convenient
Product Description
Carbon Dioxide Detector/Transmitter With LCD TGP318L, Real-time monitoring of CO2 concentration in indoor air. NDIR infrared CO2 sensor, self-calibration function, greater than 10-year service life. Temperature and humidity detection optional, temperature and humidity integrated digital sensors to provide full range, high-precision detection. With wall mounted, sensor outside in the probe, the measurement accuracy is higher. 3X linear analog outputs for CO2 measurement, temperature &humidity. Modbus RS485 interfaceLCD display CO2 and temperature & humidity
- Smart structure with the simple installation and wiring
- CE-Approval
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The measurement range of this model is 0 to 2000 ppm by default, with an option to select a range of 0 to 5000 ppm.
The self-calibration system automatically adjusts the sensor to maintain accuracy over time, ensuring reliable performance throughout its service life.
The response time is less than 5 minutes for a 90% step change at low duct speed.
This model features 3 linear analog outputs for CO2 measurement, as well as temperature and humidity readings.
Yes, the TGP318L includes a Modbus communication interface for convenient usage and testing.
It is suitable for HVAC systems in buildings to detect CO2 levels and facilitate data transmission for ventilation control systems.
The stability of the sensor is less than 2% of the full scale over its operational life.
This unit is designed for wall mounting, with the sensor located outside in the probe for enhanced measurement accuracy.
The pressure dependence is 0.135% of the reading per mm Hg, which may affect measurements under varying pressure conditions.
