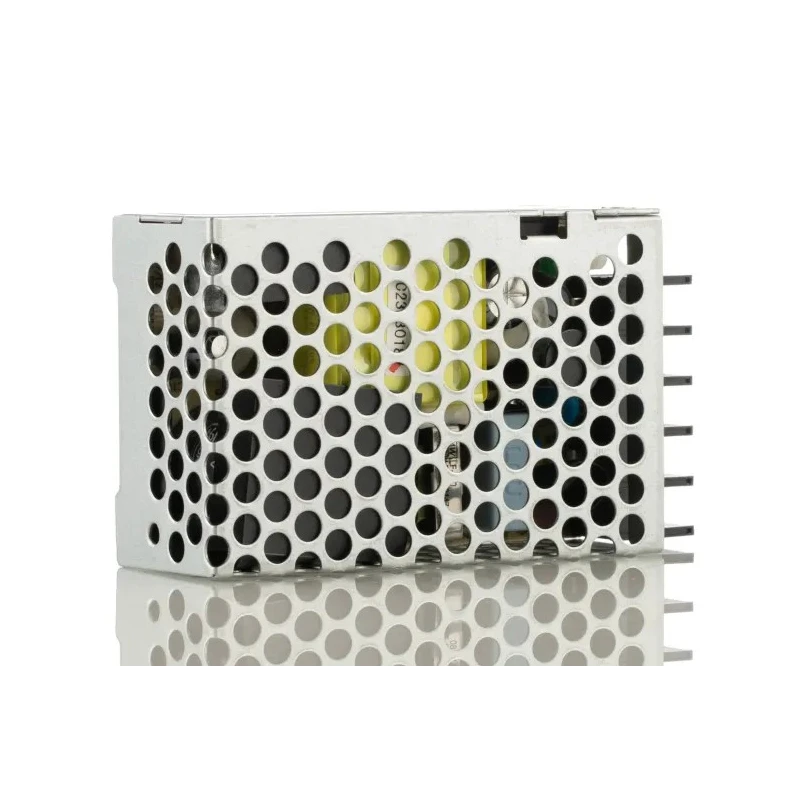

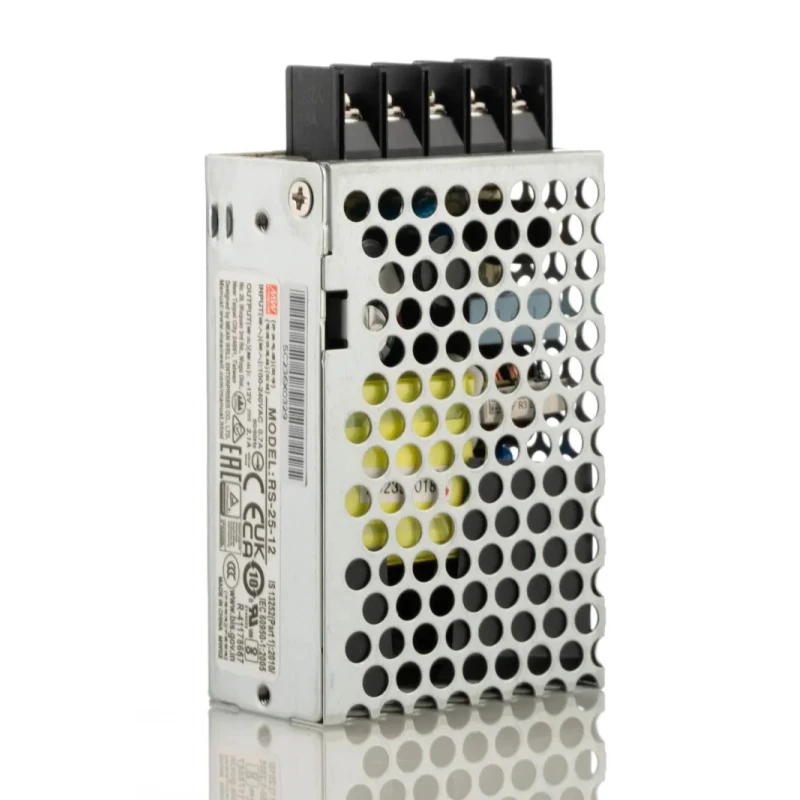

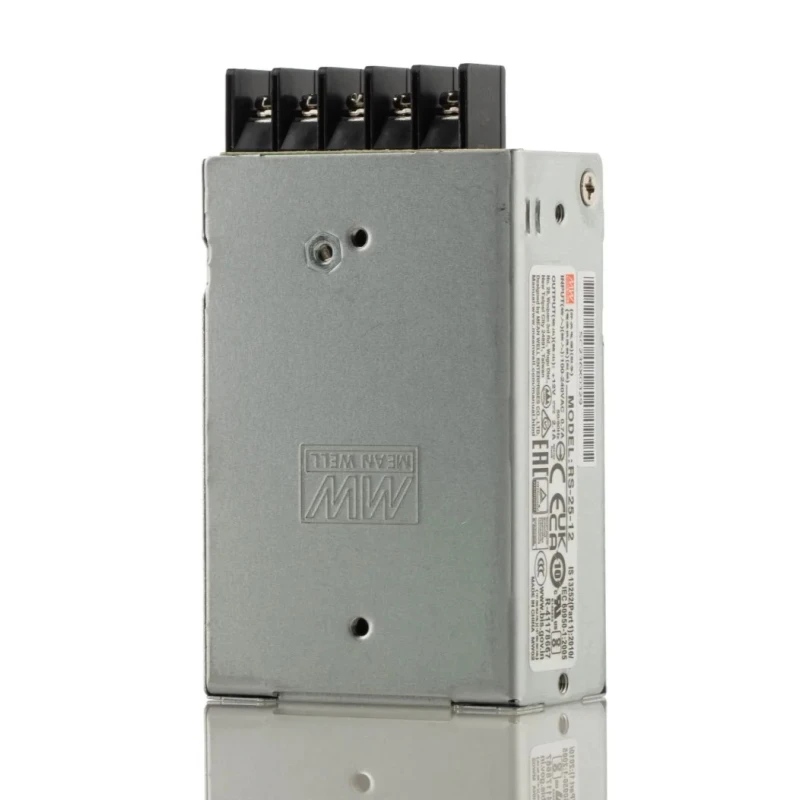

MEAN WELL RS-25-12 Switching Power Supply 12V DC 25W 2.1A Universal Input 88-264VAC 78x51x28mm RS-25-12
Specifications
| Country of Origin | India |
|---|---|
| Brand | MEAN WELL |
| Power | 25W |
| Efficiency | 81.5% |
| Length | 78mm |
| Model | RS-25-12 |
| Depth | 28mm |
| Gross Weight | 200g |
| Width | 51mm |
| Mount Type | Chassis |
| Series | RS25 |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -20°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 370, 264V dc |
| Maximum Output Voltage | 12V dc |
| SMPS Output Current | 2.1A |
| Minimum Input Voltage | 88V ac |
Key Features
- Universal input voltage range from 88VAC to 264VAC and DC input up to 373VDC.
- Compact chassis mount design measuring 78mm length, 51mm width, and 28mm depth.
- High efficiency rated at 81.5% ensuring energy saving operation.
- Wide operating temperature range from -20°C to +70°C suitable for varied environments.
- Features overload and overvoltage protection for enhanced reliability.
- Equipped with screw terminals and adjustable output voltage from 10.8V to 13.2V.
- Complies with multiple international standards including UL, TUV, CSA, and EN certifications.
- Lightweight design with 200 grams gross weight facilitating easy installation.
Product Description
MEAN WELL RS-25-12 is a high-quality switching power supply designed for applications requiring stable 12V DC output at 25W power and 2.1A current. It features a universal input accepting 88VAC to 264VAC or 125VDC to 373VDC, suitable for worldwide use including industrial and commercial environments.
The device is compact with dimensions 78mm x 51mm x 28mm (LxWxD) and a chassis mount for secure and flexible installation options. Operating reliably across temperature ranges from -20°C to +70°C, it integrates long life electrolytic capacitors rated at 105°C for durability.
This power supply includes screw terminals and allows output voltage adjustment between 10.8V and 13.2V for fine-tuning performance to specific loads. Additional safety features include overload and overvoltage protections, withstanding a 5G vibration test, and full load burn-in testing to ensure operational stability.
Certified to international standards such as UL 62368-1, TUV EN 62368-1, CSA C22.2 No. 62368-1, and EMC standards including EN 55022 Class B, this model supports demanding industrial, laboratory, HVAC, and manufacturing environments.
Universal AC/DC input for global compatibility. High efficiency of 81.5% reduces energy consumption and heat generation. Compact and lightweight chassis mount design for ease of installation. Wide operating temperature suitable for various industrial conditions.
Robust protection circuitry enhances equipment safety and longevity. Adjustable output voltage provides flexibility for diverse applications. Compliance with multiple international safety and EMC standards. Durable electrolytic capacitors rated for high temperature operation.
This MEAN WELL RS-25-12 power supply is ideal for powering electronics, industrial automation, laboratory equipment, and other devices requiring reliable DC power. Explore more MEAN WELL products and solutions on EnvMart for your power supply needs.
Explore more products in our Switching Power Supplies category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The RS-25-12 power supply has a universal input voltage range from 88VAC to 264VAC and can accept DC input up to 373VDC.
This model provides a stable output voltage of 12V DC with a maximum output current of 2.1A.
The dimensions of the RS-25-12 are 78mm in length, 51mm in width, and 28mm in depth.
The RS-25-12 has an efficiency rating of 81.5%, which helps in reducing energy consumption.
This power supply operates reliably within a temperature range from -20°C to +70°C.
It includes overload and overvoltage protection, enhancing reliability and safety during operation.
This model is designed for chassis mounting, providing secure and flexible installation options.
The power supply complies with multiple international standards including UL, TUV, CSA, and EN certifications.
The gross weight of this power supply is 200 grams, making it lightweight for easy installation.
Yes, the output voltage can be adjusted between 10.8V and 13.2V for fine-tuning to specific loads.
This power supply is ideal for powering electronics, industrial automation, laboratory equipment, and other devices requiring reliable DC power.
It accepts both AC and DC inputs, making it versatile for global compatibility.
