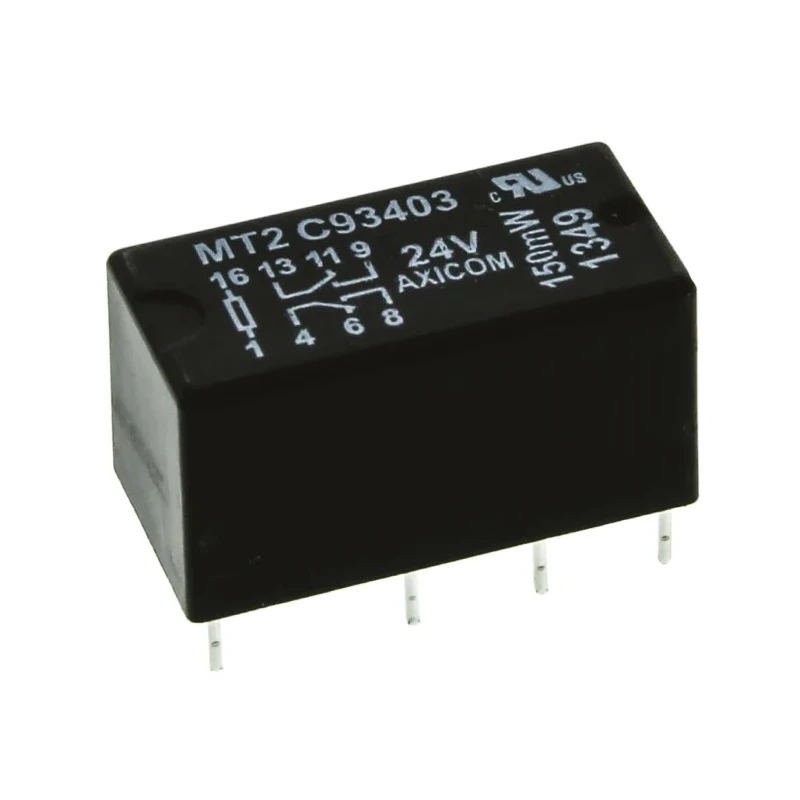

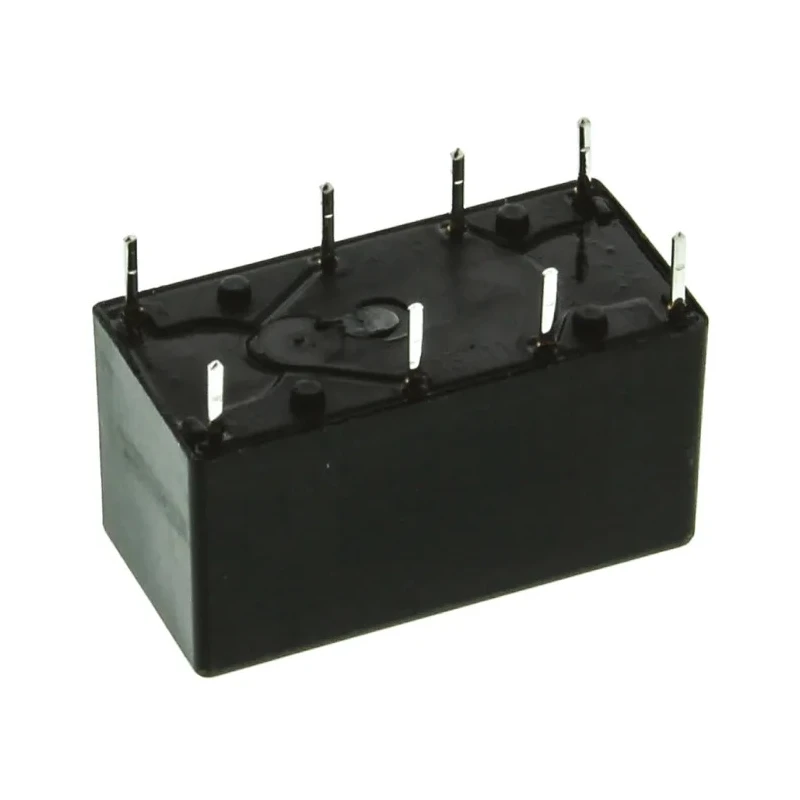

TE Connectivity PCB Signal Relay 24V DC Coil 2A DPDT MT2-C93403
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 11mm |
| Length | 20.2mm |
| Model | MT2-C93403 |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | MT2 |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -20°C |
| Switching Current | 2A |
| Terminal type | Surface Mount |
| Standards/Approvals | RoHS |
| Coil Resistance | 3870Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 150mW |
Key Features
- This signal relay features a 24V DC coil and a double-pole double-throw (DPDT) contact setup.
- Surface mount with gold-plated contacts ensures reliable electrical performance.
- Compact dimensions of 20.2mm length, 11mm height, and 10mm width fit densely populated PCBs.
- Operates efficiently from -20°C to 80°C within industrial temperature ranges.
- Coil resistance is 3870 ohms with low coil power consumption of 150mW.
- Designed for switching up to 2A current at 250V AC or 220V DC voltage levels.
- Compliant with RoHS standards ensuring environmental safety.
- Suitable for telecom and industrial PCB applications requiring miniature, reliable signal relays.
Product Description
TE Connectivity MT2-C93403 is a miniature PCB Signal Relay designed for precise signal switching in electrical and industrial automation applications. It features a 24V DC coil voltage and double-pole double-throw (DPDT) contact configuration, making it suitable for diverse control and signaling circuits.
The relay is surface mount type with gold-plated contacts to guarantee high conductivity and minimal signal loss. Compact dimensions (20.2mm length, 11mm height, 10mm width) allow integration in space-constrained PCB layouts. Coil resistance is 3870 ohms and coil power consumption is low at 150mW, ensuring energy-efficient operation.
Operating temperatures range from -20°C up to 80°C, supporting reliable function under various industrial environmental conditions. It can switch currents up to 2A and voltages up to 250V AC or 220V DC, providing versatility in signal relay usage.
TE Connectivity's MT2 series relays comply with RoHS regulations, reflecting commitment to environmentally-friendly product standards. This Signal Relay is ideal for use in telecommunications equipment, industrial control panels, and other precision electronic mechanisms demanding miniature, rugged relays.
This relay features a 24V DC coil and a double-pole double-throw (DPDT) contact configuration. Surface mount with gold-plated contacts ensures reliable electrical performance. Compact dimensions of 20.2mm length, 11mm height, and 10mm width fit densely populated PCBs.
Operates efficiently within an industrial temperature range of -20°C to 80°C. Coil resistance of 3870 ohms and low coil power consumption of 150mW. Switches up to 2A current at 250V AC or 220V DC voltage levels. Compliance with RoHS standards ensures safety and environmental friendliness.
Suitable for telecom and industrial PCB signal switching applications.
Explore the comprehensive range of reliable relays and signal conditioning solutions in the Electronics & Electricals category at EnvMart for quality-assured industrial components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this signal relay is 24V DC.
This model can switch up to 2A current.
The dimensions are 20.2mm in length, 11mm in height, and 10mm in width.
It features a double-pole double-throw (DPDT) contact configuration.
It operates efficiently within a temperature range of -20°C to 80°C.
The coil resistance is 3870 ohms.
The coil power consumption is low at 150mW.
This relay is designed for surface mount installation.
It can switch voltages up to 250V AC or 220V DC.
Yes, it complies with RoHS standards, ensuring environmental safety.
The contacts are made of gold-plated material, ensuring high conductivity.
It is suitable for telecommunications equipment and industrial control panels requiring miniature, reliable signal relays.
