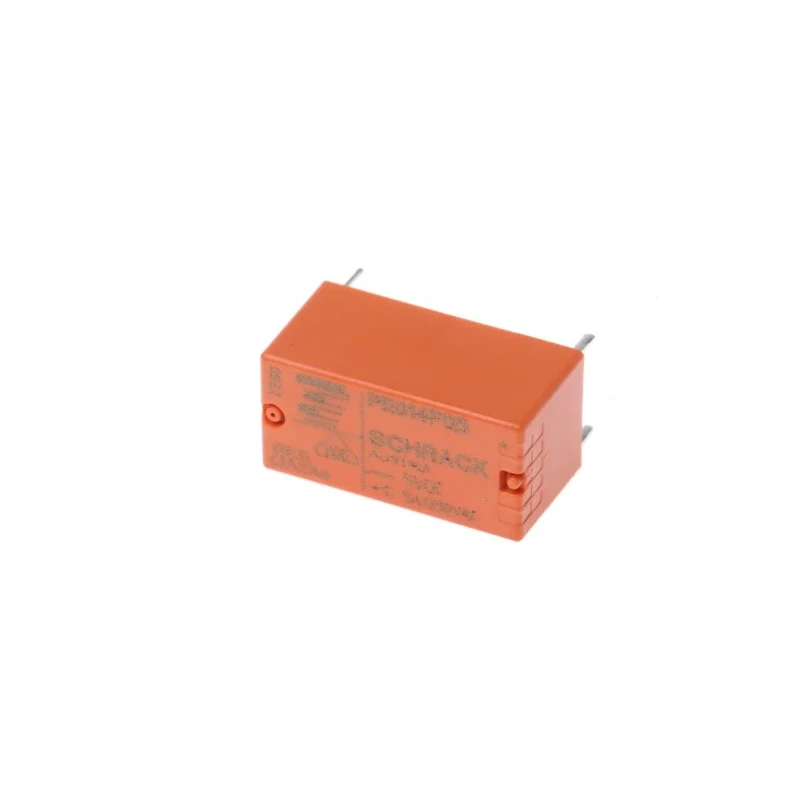

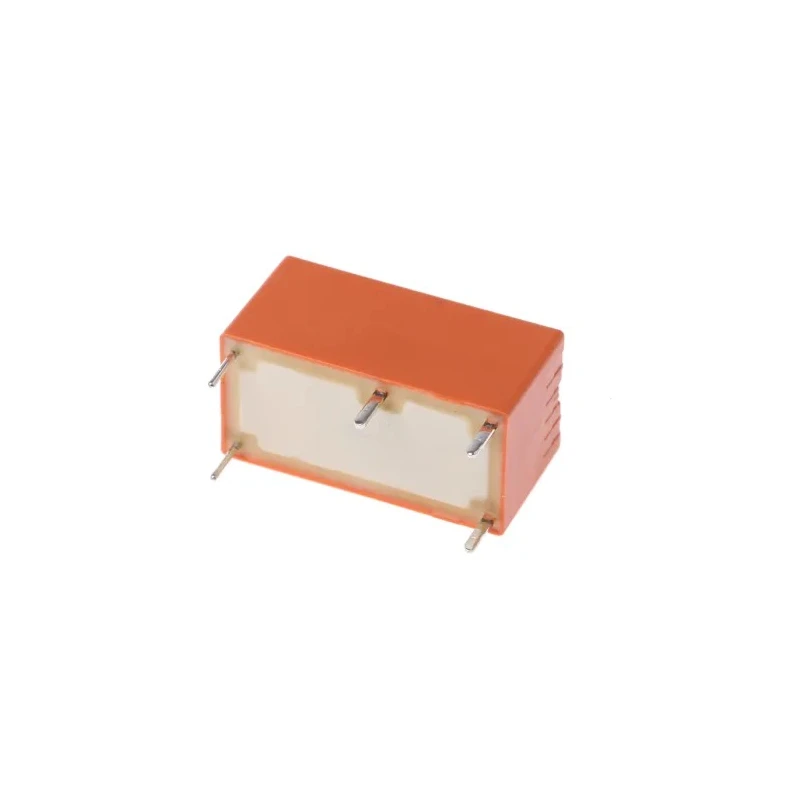

TE Connectivity PCB Power Relay 5V dc Coil 5A Switching Current SPDT SCHRACK PE014F05
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 10mm |
| Length | 20mm |
| Model | PE014F05 |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | SCHRACK |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 5A |
| Terminal type | Solder |
| Standards/Approvals | IEC, RoHS, UL, VDE |
| Coil Resistance | 125Ω |
| Coil Voltage | 5V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 200mW |
| Isolation Coil To Contact | 4000Vac |
| High Coil sensitivity | 200mW |
Key Features
- Rated coil voltage is 5V dc ensuring low voltage operation.
- SPDT contact configuration enables single-pole double-throw switching.
- Supports a maximum switching current of 5A, suitable for moderate load applications.
- Compact dimensions with 20mm length, 10mm width, and 10mm height.
- Coil power consumption is low at 200mW offering energy efficiency.
- Operating temperature range spans from -40°C to 85°C for wide environmental adaptability.
- Contact material is silver alloy facilitating reliable electrical connectivity.
- Isolation between coil and contact is 4000Vac ensuring high safety standard.
Product Description
TE Connectivity PE014F05 is a PCB Power Relay designed for electrical and industrial applications requiring reliable switching operations. It operates on a 5V dc coil voltage with a sensitive coil power of just 200mW, making it energy efficient for continuous usage. The relay features a Single Pole Double Throw (SPDT) contact configuration capable of switching currents up to 5A, making it ideal for moderate power control scenarios.
Compact in size with dimensions of 20mm length, 10mm width, and 10mm height, this relay is optimized for PCB mounting with solder terminals ensuring secure and robust connections. Its contact material is silver alloy, providing excellent conductivity and durability.
It is engineered to perform reliably over a wide operating temperature range from -40 to +85 degrees Celsius, suitable for varied industrial environments. The isolation between coil and contacts is rated at 4000Vac, enhancing safety and protecting sensitive components in the circuit.
This relay complies with multiple industry standards including IEC, RoHS, UL, and VDE, ensuring quality, safety, and environmental compliance. Typical applications include industrial control systems, automation, HVAC equipment, manufacturing machinery, and signal conditioning circuits.
Rated coil voltage of 5V dc for consistent operation. Switching current capability of 5A supports moderate power loads. SPDT contact configuration enables flexible switching arrangements. Low coil power of 200mW ensures energy efficiency.
Wide operating temperature range from -40°C to 85°C suit diverse environments. Coil to contact isolation voltage of 4000Vac enhances operational safety. Compact 20x10x10mm size fits limited spaces and PCB layouts. Silver alloy contacts provide high conductivity and durability.
PCB mount type with solder terminals for secure assembly. Meets IEC, RoHS, UL, and VDE standards ensuring industry compliance.
Choose this TE Connectivity PE014F05 power relay for electrical control applications requiring a compact, efficient, and certified relay solution. Explore other Power Relays and related components in our Electronics & Electricals category at EnvMart for your industrial and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates at a rated coil voltage of 5V dc, ensuring low voltage operation.
It supports a maximum switching current of 5A, suitable for moderate load applications.
This relay features a Single Pole Double Throw (SPDT) contact configuration, enabling flexible switching arrangements.
The relay has compact dimensions of 20mm in length, 10mm in width, and 10mm in height, making it suitable for PCB mounting.
The coil power consumption is low at 200mW, offering energy efficiency for continuous usage.
The isolation between the coil and contact is rated at 4000Vac, enhancing safety and protecting sensitive components.
The contact material is silver alloy, which facilitates reliable electrical connectivity and conductivity.
This model is designed for PCB mounting and features solder terminals for secure assembly.
It complies with multiple industry standards including IEC, RoHS, UL, and VDE, ensuring quality and environmental compliance.
Typical applications include industrial control systems, automation, HVAC equipment, and manufacturing machinery.
The coil resistance is 125Ω, which is relevant for its operation and energy efficiency.
