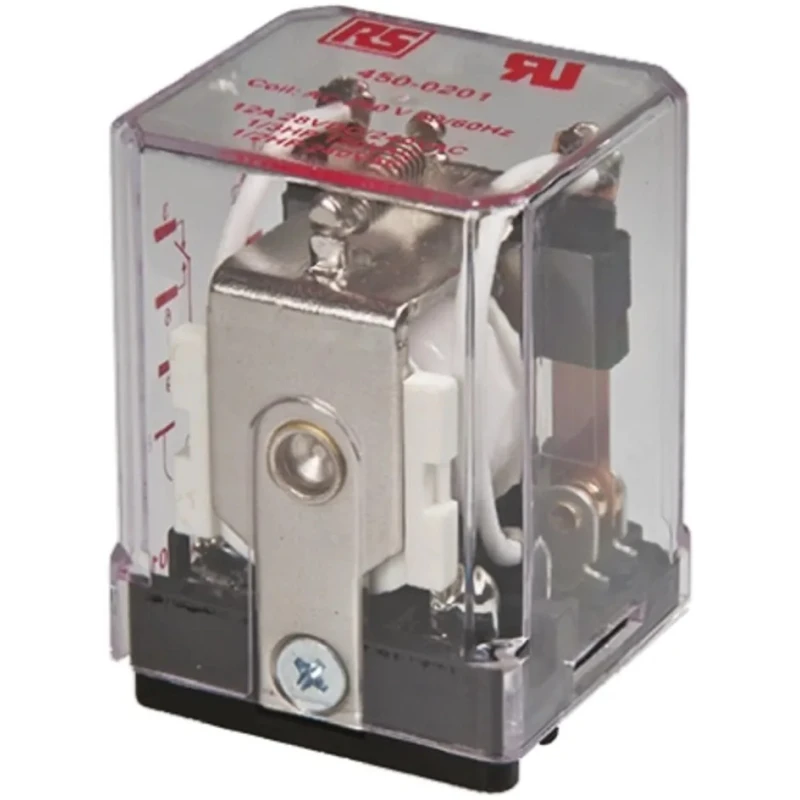

RS PRO Plug-in Power Relay 110V AC Coil Voltage 12A Switching Current 4PDT 613-3689

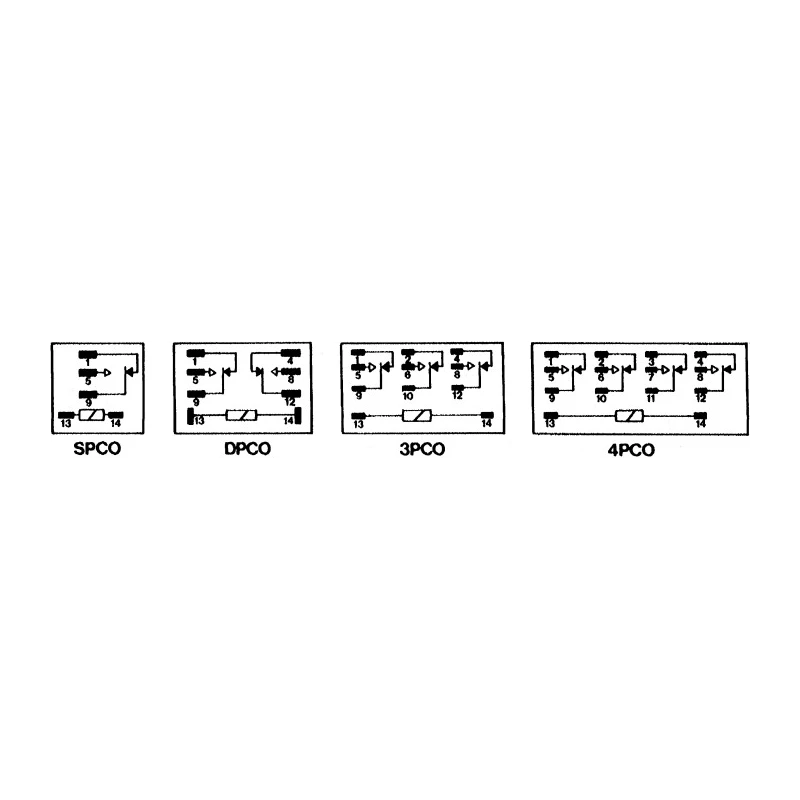

RS PRO 613-3689 is a high-quality Plug-in Power Relay designed for industrial and electrical automation applications requiring reliable switching. It operates on a 110V AC coil voltage with a rated switching current of 12A and features a 4PDT contact configuration, making it suitable for complex circuit switching tasks.

This relay is designed with a plug-in mount type and uses PCB pins for terminal connection, ensuring ease of installation and maintenance. The coil resistance of 1.8kΩ and coil power of 2.5W contribute to efficient coil performance and reduced power consumption.

It is rated to switch AC voltages up to 240V and DC voltages up to 28V, providing versatility in a variety of electrical control environments. The relay is built to withstand a wide operating temperature range from -45°C to 55°C, making it suitable for demanding industrial conditions.

The contact material is made from a silver alloy known for excellent conductivity and durability. The relay ensures long life with a mechanical rating of 10 million operations and an electrical life expectancy of 100,000 operations.

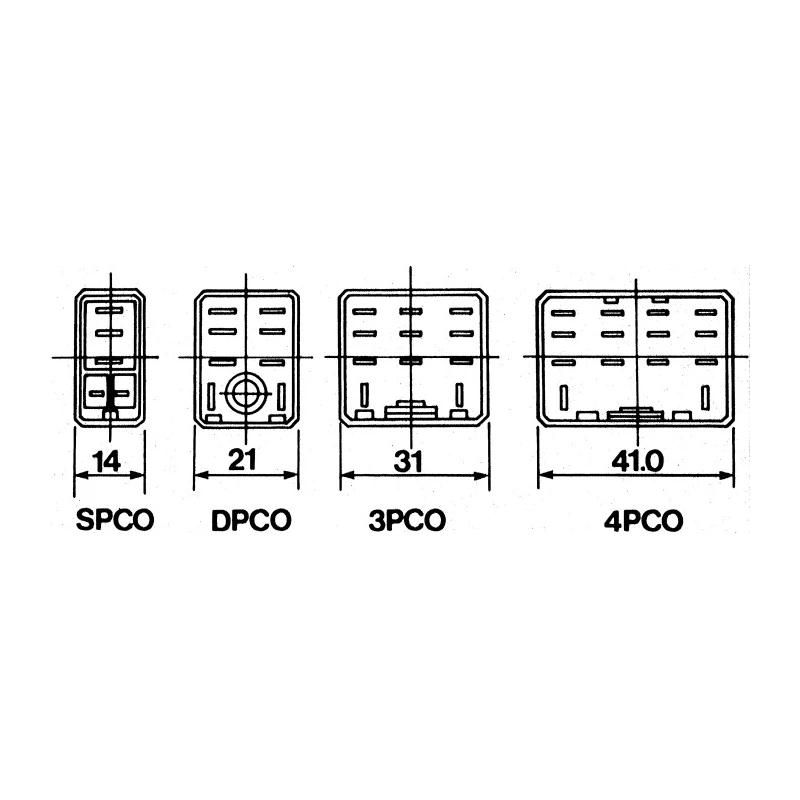

With a compact size of 40.8mm length, 27.4mm width, and 35mm height, this relay can be integrated easily into electrical panels. It features a maximum contact resistance of 50mΩ, ensuring minimal losses during operation and consistent performance.

RS PRO 613-3689 is RoHS compliant, supporting environmentally responsible manufacturing practices. Made in China, this relay is suitable for applications in industrial automation, manufacturing control systems, HVAC controls, and various electrical switching uses.

Its reliable construction and plug-in design reduce downtime and simplify replacement, making it ideal for engineers and technicians in electrical and automation fields. Explore more products in the Power Relays category at EnvMart to find complementary and compatible components for your industrial and commercial electrical systems.

This power relay features a plug-in mount type suitable for PCB installation. Coil resistance is 1.8kΩ and coil power is 2.5W, ensuring efficient operation. It supports switching AC voltage up to 240V and DC voltage up to 28V.

Operating temperature ranges from -45°C minimum to 55°C maximum for robust performance. Contact material is silver alloy, providing reliable electrical conduction. The device offers a mechanical life expectancy of 10 million operations and an electrical life of 100,000 operations.

Contact resistance is maximized at 50mΩ, ensuring low loss in switching. Dimensions are compact with length 40.8mm, width 27.4mm, and height 35mm. Environmentally compliant with RoHS standards, this relay is manufactured in China.
