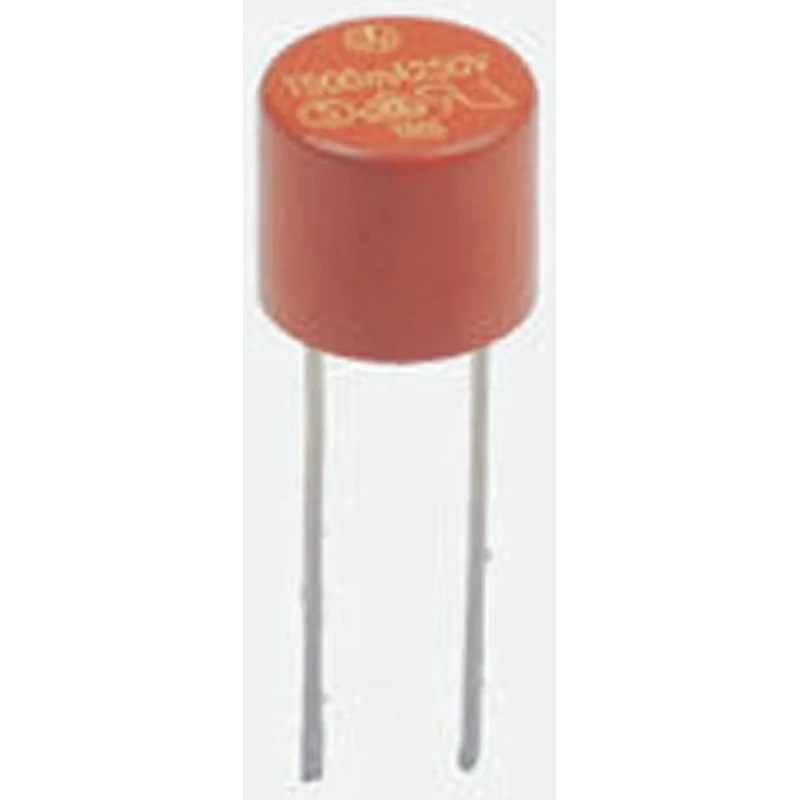

RS PRO Non-Resettable Fuse Radial 100mA 250V AC Nylon Body TR5 Series 611-0349

RS PRO 611-0349 Non-Resettable Fuse Radial 100mA 250V AC is engineered for reliable electrical circuit protection with a robust Nylon thermoplastic polyamide body. The radial lead orientation facilitates easy installation on printed circuit boards, enabling automatic insertion or direct soldering. Ideal for industrial and commercial electrical applications, this fuse supports currents up to 100mA and voltages up to 250V AC.

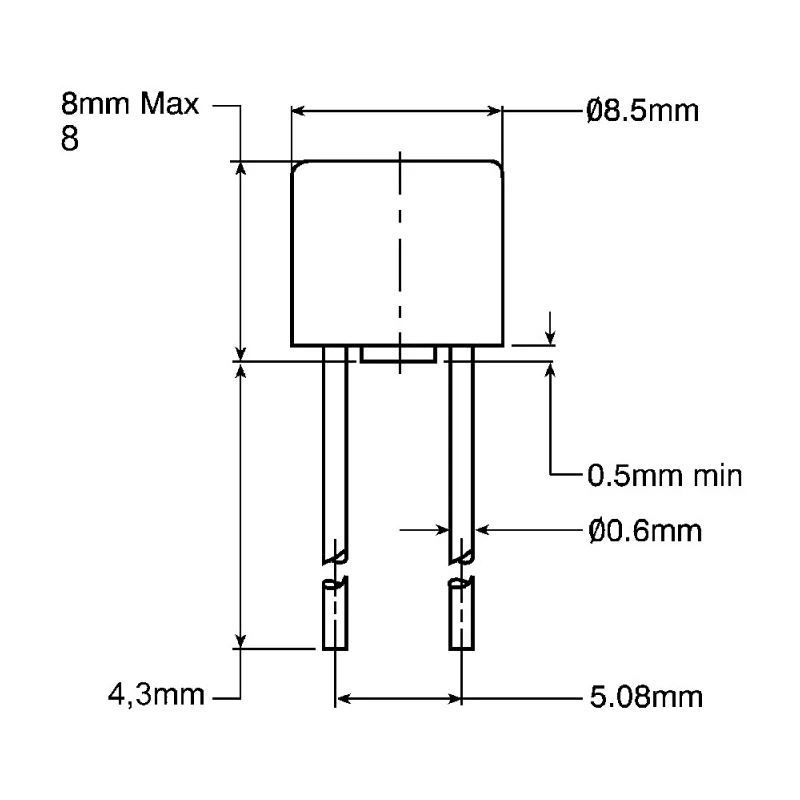

Designed to operate within a wide temperature range from -40°C up to 85°C, the fuse ensures stable performance in harsh environments. It features a breaking capacity of 35A, providing effective interruption of faulty currents to protect sensitive components. Its compact size with 7.2mm length, 8.5mm diameter, and 8mm height enables integration in densely packed electrical assemblies.

The fuse complies with critical RoHS standards and carries approvals from UL, VDE, and SEMKO, ensuring conformity to international safety and quality benchmarks. Manufactured in China, the product belongs to the high-performance RS PRO TR5 series known for durability and reliability.

Typical applications include circuit protection in industrial automation, electrical control panels, consumer electronics, and HVAC systems. It can be used together with specific fuse holders for added convenience, making it a versatile component for electrical engineers and technicians.

The fuse has a radial lead orientation suitable for straightforward PCB mounting. Operating temperature ranges from -40°C minimum to 85°C maximum. Features a breaking capacity of 35A ensuring robust circuit protection. Compact dimensions with length 7.2mm, diameter 8.5mm and height 8mm offer space-efficient integration.

Constructed with thermoplastic polyamide material for durability and reliability. Suitable for automatic insertion, direct soldering, or use with compatible fuse holders. Complies with RoHS environmental standards ensuring safe usage.

Manufactured in China with UL, VDE, and SEMKO approvals for high quality assurance. Discover more products in the Circuit Breakers & Fuse category at EnvMart for all your electrical protection needs.
