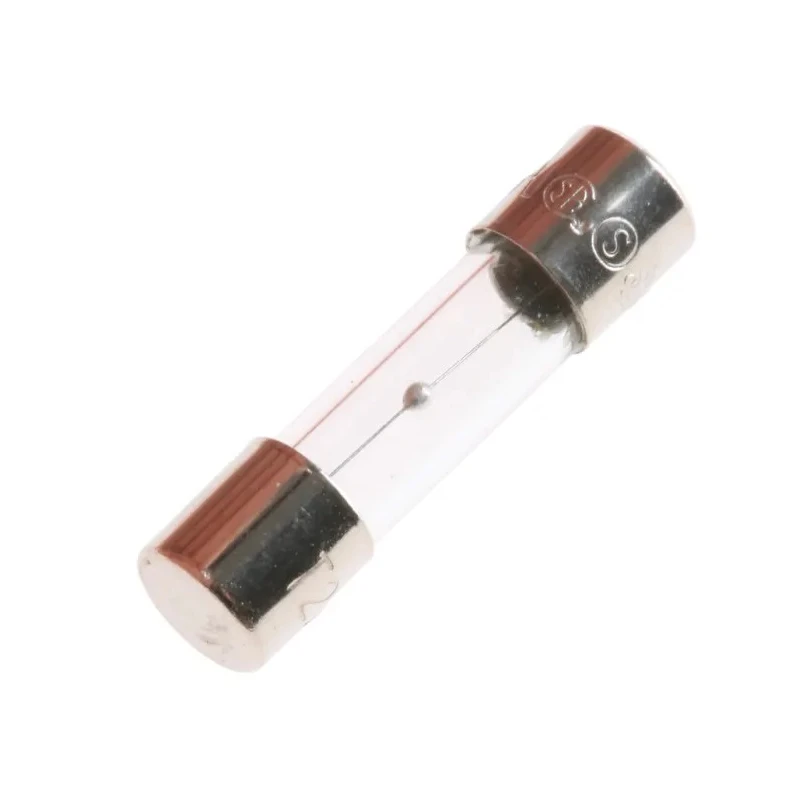

RS PRO 2A T Glass Cartridge Fuse, 5 x 20 mm, Time Delay, 250V AC 610-9967

RS PRO 610-9967 is a 2A T (time-delay) glass cartridge fuse measuring 5 x 20 mm tailored for AC voltage systems rated up to 250V. This fuse provides essential circuit protection by interrupting overcurrent faults safely and reliably.

The glass body construction combines transparency for fuse inspection with sturdy nickel-plated brass end caps to ensure excellent electrical contact and minimal resistance. The overall length of 20 mm and 5 mm diameter make it suitable for standard cartridge fuse holders in electrical and automation equipment.

Its time-delay feature allows brief inrush currents without nuisance tripping, important for devices with motor or transformer loads. Operating comfortably between -40°C and 85°C, it supports a wide range of environments.

Certifications including BSI, EN 60127, UL, and VDE demonstrate compliance with prominent international electrical safety and performance standards. The fuse is part of RS PRO's 195 Series, known for quality and reliability.

This fuse is widely used in industrial, commercial, and electronic circuit applications for overcurrent protection. It is essential in automation systems, electrical panels, and industrial equipment safeguarding sensitive components from damage.

This fuse features a glass body with nickel-plated brass ends for reliable conductivity. Time delay fuse characteristic ensures protection against transient currents. Suitable for electrical, automation, and circuit protection applications.

Compact size with 5 mm diameter and 20 mm overall length. Operates safely between -40°C minimum and 85°C maximum temperature range. Conforms to international standards including BSI, EN 60127, UL, and VDE for quality assurance.

Manufactured in China to exacting quality control processes.
