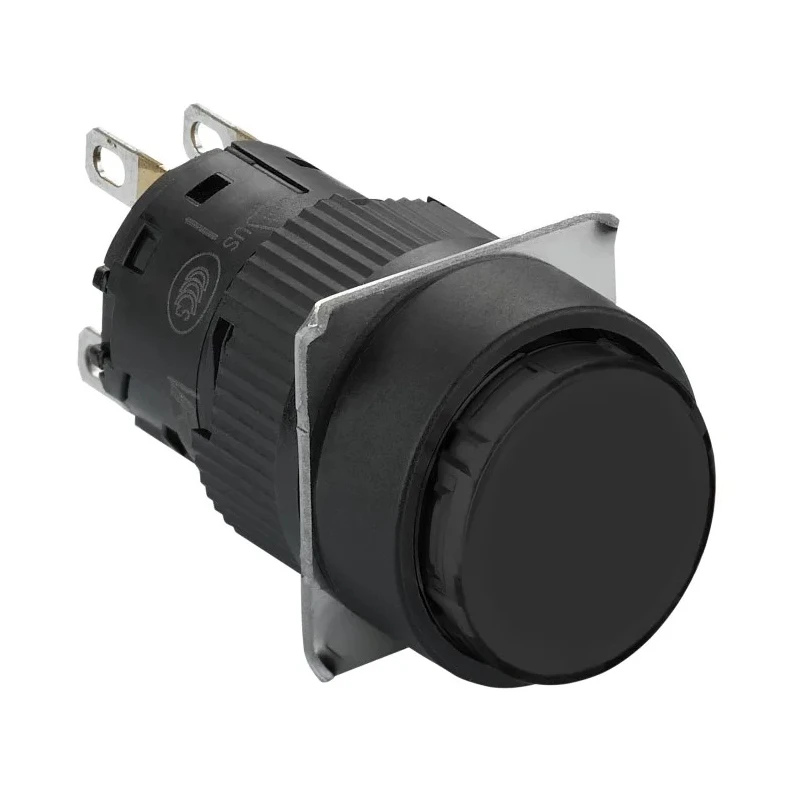

Schneider Electric Harmony XB6 Series Push Button Switch 16 mm Panel Cutout SPDT Momentary Black LED IP65 110 V XB6EAA21P

Schneider Electric XB6EAA21P Harmony XB6 Series Push Button Switch is a reliable momentary panel mount switch designed for industrial and automation applications. It features a 16 mm panel cutout making it compact and easy to install on control panels requiring SPDT contact arrangement.

This push button switch is equipped with a black round actuator, illuminated by a black LED for clear visual status indication. Designed to endure harsh industrial environments, it holds an IP65 rating ensuring protection from dust ingress and low-pressure water jets, enhancing durability and operational safety.

With a Quick Connect and Solder Tag terminal design, wiring is simplified and reliable. It supports both DC and AC switching applications, functioning up to 110 V DC and 250 V AC, with a 1 amp contact current rating suitable for control circuits.

Operating temperature range from -10°C to 55°C allows installation in diverse environments. The switch complies with major international safety and performance standards such as IEC 60947-5-1 and UL 508, guaranteeing quality and compatibility with industrial automation systems.

Its service life is rated at one million cycles, ensuring long-term operation without failure, while the snap-action contacts provide responsive and precise switching action. The insulating plastic actuator enhances operator safety by reducing exposure to hazardous electrical loads.

Applications include control device integration, fluid management systems, and electronics manufacturing. The product comes pre-assembled, reducing installation time and preparation work, and mounts flush to panels to prevent accidental activation.

The switch features a black actuator color and black LED illumination. It has Quick Connect and Solder Tag terminal types for easy wiring. Rated IP65, it provides protection against dust and low-pressure water jets. Designed for operating temperatures between -10°C and 55°C.

Suitable for controlling both DC (110 V) and AC (250 V) circuits with a contact current rating of 1 A. The actuator style is round with a 1 CO switch configuration. Dimensions are 90 mm height, 200 mm length, and 30 mm width.

Complies with international standards including IEC 60947-5-1 and UL 508. Explore the Schneider Electric range and other Push Button Switches on EnvMart for enhanced industrial control solutions.
