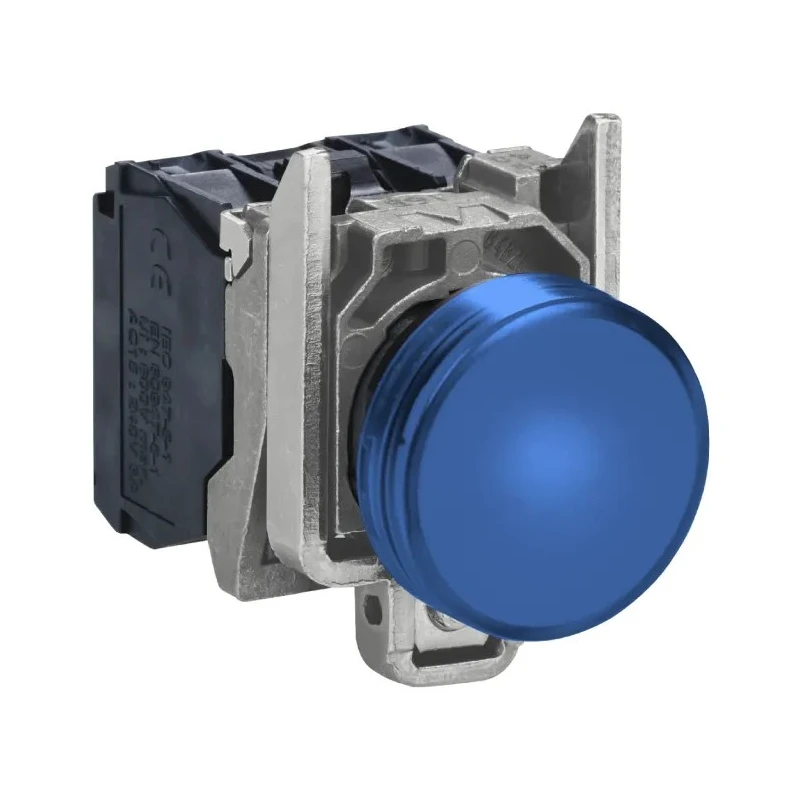

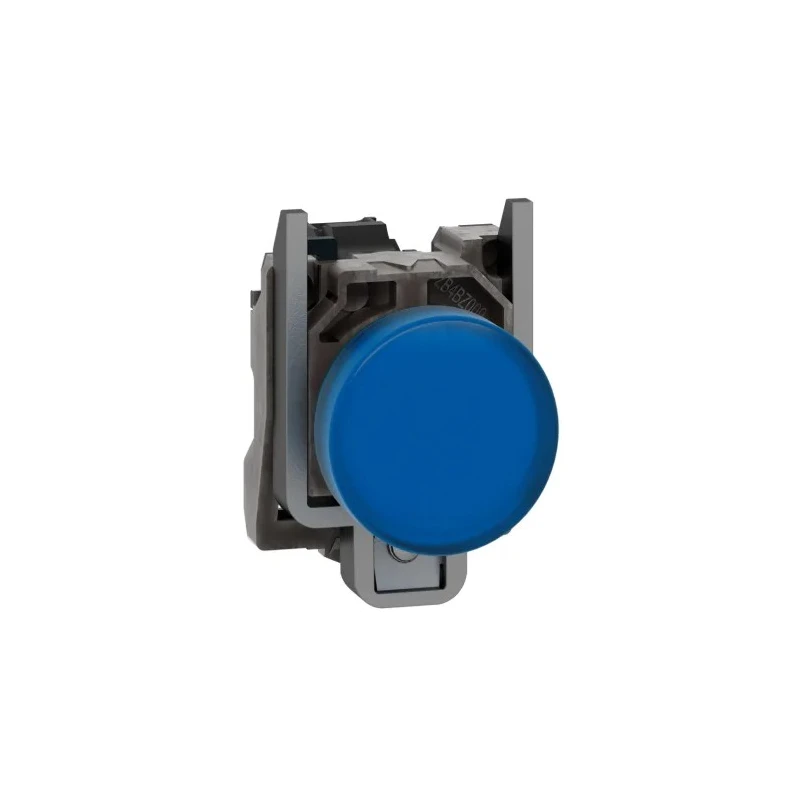

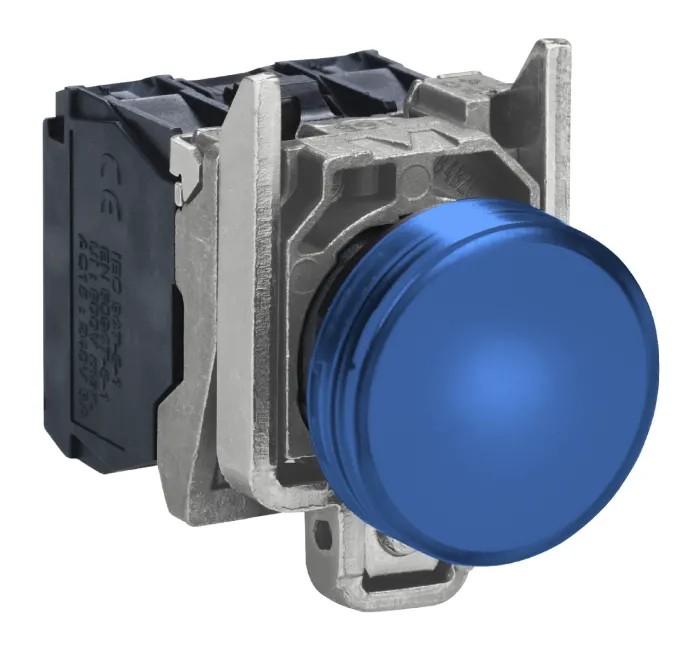

Schneider Electric Panel Mount Blue LED Pilot Light Harmony XB4 22 mm Cutout 120V AC IP66 IP67 IP69 XB4BVG6

Schneider Electric XB4BVG6 is a robust and reliable panel mount blue LED pilot light from the Harmony XB4 series, featuring a 22 mm cutout diameter and operating at 120V AC. Designed for industrial and commercial control panels, this pilot light combines durability with precise functionality in a compact round form factor.

The pilot light incorporates a metal body and bezel for enhanced protection and resilience against mechanical impact and environmental factors. It features an LED lamp type delivering efficient illumination with a low current rating of 14mA. The unit offers exceptional protection with IP66, IP67, and IP69 ratings, making it suitable for use in harsh environments including those with dust, jets of water, and high pressure water sprays.

The XB4BVG6 model complies with international standards including CSA, CE, and UL, ensuring safety and performance in demanding industrial settings. The pilot light has shock protection up to IK06, enabling resistance to sudden impacts and vibrations, supported by shake-proof terminal screws for secure electrical connections. This product operates reliably within a wide temperature range from -40°C to 70°C.

The design of the Harmony XB4 series Pilot Lights emphasizes flexibility and adaptability with modular features and multiple connection options, facilitating quick and straightforward installation. Applications span across machine controls, building infrastructure, food and beverage manufacturing, automotive, restaurants, and commercial buildings.

The pilot light features a metal body and bezel ensuring robust durability. Round shape with a 22 mm mounting diameter suitable for panel installation. LED lamp type delivers energy-efficient illumination with a 14 mA current rating.

Protection against harsh conditions with shock resistance up to IK06. Compliance with CSA, CE, and UL safety standards for reliable operation. Wide operating temperature range from -40°C to 70°C. Modular design supports flexibility and easy installation in control panels.

High vibration resistance with shake-proof terminal screws enhances longevity. Suitable for general industrial, building infrastructure, food and beverage, automotive, and commercial applications. IP ratings of IP66, IP67, and IP69 provide dust-tight and water protection.

Schneider Electric's Harmony XB4 pilot light series continues to provide high-quality signaling solutions that are repairable by the end user and are ideal for a wide range of industrial and infrastructure monitoring needs.
