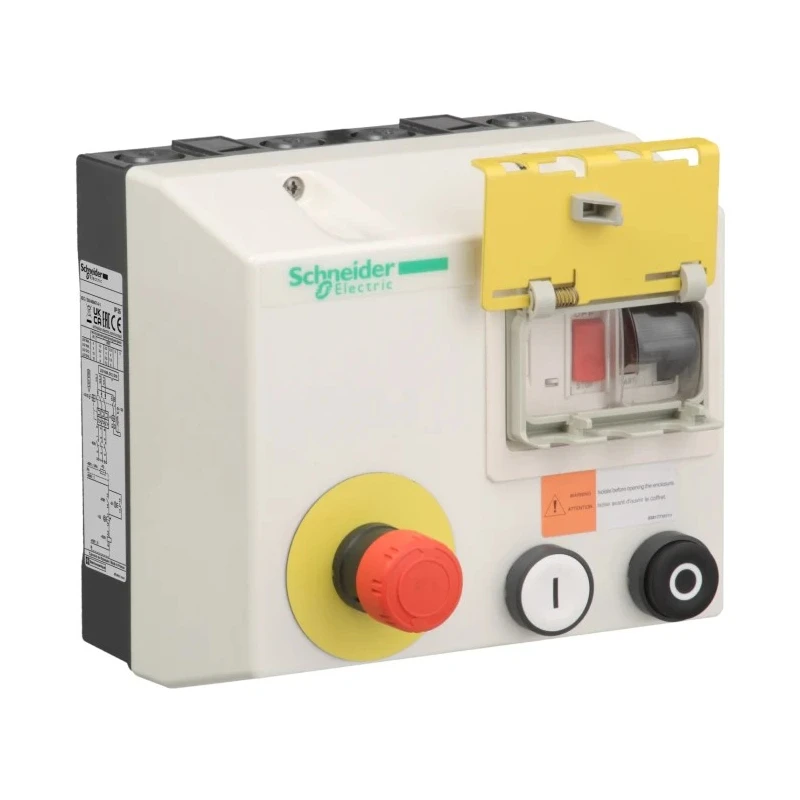

Schneider Electric TeSyS LG - LJ DOL Starter, Surface Mount, 3 Phase, 440V AC, 9 kW, 18A Current Rating, IP657 LG7D18Q720

Schneider Electric LG7D18Q720 DOL Starter is a high-quality direct-on-line starter designed for three-phase squirrel-cage motor applications, delivering 9 kW power at 440V AC and supporting up to 18A current. It features a surface mount type complete enclosure with a rugged polycarbonate front cover and a removable steel base plate, ensuring durability and rigidity during installation.

This model offers an IP657 rating, providing reliable protection against dust and water, which allows installation outside standard cabinets or enclosures. The starter is equipped with an integrated thermal-magnetic circuit breaker with a thermal setting range from 13 to 18A, offering superior protection against motor overloads and short circuits.

Operational controls include conveniently located push buttons for start and stop functions and a lockable red mushroom-head emergency stop button linked to the internal circuit breaker for safety compliance. This enables simple and secure motor control operations in industrial environments.

Compact dimensions of 165 mm length, 175 mm width, and 120 mm depth support installation in constrained spaces often found in automated machinery setups. The peripheral knockouts for top and bottom cable entry allow for efficient wiring and connectivity in industrial control panels. The starter complies with EN/IEC standards, providing assurance of quality and conformity for automotive, packaging, manufacturing, construction, and food processing industries.

Typical applications include motor control in conveyors, fans, lathes, assembly lines, and packaging systems. This reliable starter is ideal for machinery requiring straightforward direct-on-line motor start functionality with thermal protection and emergency stop safety features.

Complete enclosure suitable for direct flat surface mounting. IP657 rating provides robust protection against dust and water ingress. Integrated thermal-magnetic circuit breaker with 13 to 18A thermal protection range. Easy motor control with front-mounted start and stop push buttons.

Lockable red mushroom-head emergency stop button for enhanced safety. Constructed with durable polycarbonate housing and steel base plate. Compact dimensions of 165 x 175 x 120 mm for space-efficient installation. Suitable for starting three-phase squirrel-cage motors in industrial environments.

Applicable in conveyors, fans, lathes, packaging systems, and construction machinery. Built to meet EN/IEC standards ensuring quality and compliance. Explore the Schneider Electric range and related Motor Starters on EnvMart for reliable industrial and automation control solutions.
