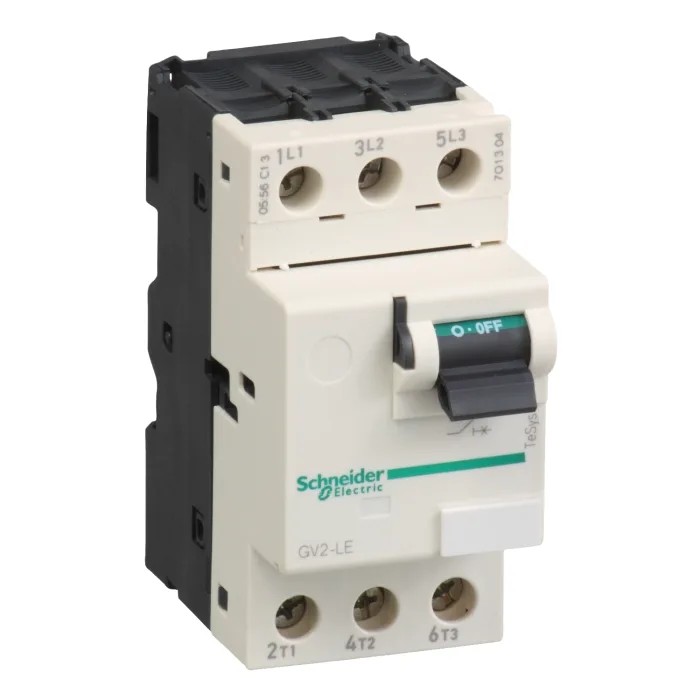

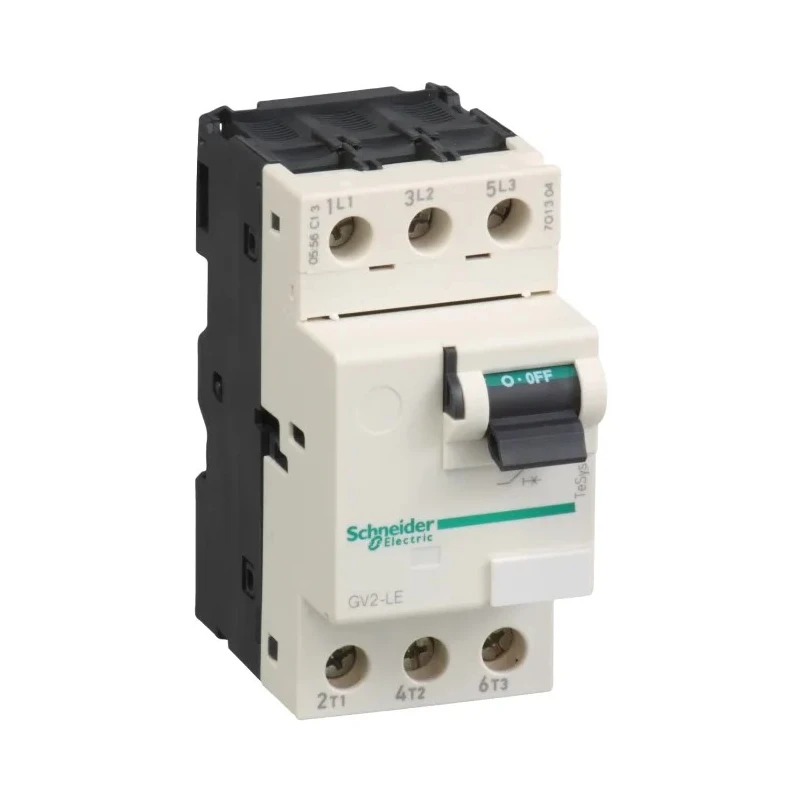

Schneider Electric 25A TeSyS GV Motor Protection Circuit Breaker, 690V, Thermal Magnetic, 3 Poles GV2LE22

Schneider Electric GV2LE22 is a high quality Motor Protection Circuit Breaker from the TeSyS GV series developed for reliable protection in 3-phase motor installations. It handles a current rating of 25A and operates safely at a supply voltage of 690 volts, suitable for industrial and commercial electric motor applications.

The breaker employs thermal magnetic sensing technology, combining thermal protection against overloads and magnetic protection against short circuits. This ensures accurate and effective protection to prevent motor damage. The device is configured with 3 poles, making it an ideal match for three-phase motors.

Mechanical dimensions measure 89mm in length, 44.5mm in width, and 78.5mm in depth, which optimizes space in distribution panels and control cabinets. The IP20 rating confirms basic protection against access to hazardous parts and solid foreign objects.

It is designed to operate within a wide ambient temperature range from -20°C to 60°C, suitable for diverse environmental conditions. The breaker is certified to a broad cross-section of regional and international standards including UL, RINA, REACH/RoHS, IEC standards (IEC 60947-2 and IEC 60947-4-1), CSA, CCC, DNV GL, BV, and ATEX, assuring high quality and conformity.

The magnetic tripping function is calibrated to activate at 13 times the rated current, ensuring prompt and reliable disconnection during short circuit conditions. The breaker also boasts a high breaking capacity of 15kA at 400V, capable of handling significant fault currents without damage.

For comprehensive motor protection, the GV2LE22 motor circuit breaker can be paired with a compatible thermal overload relay such as the LRD22, which is sold separately. Secure screw clamp terminals facilitate safe and stable electrical connections.

This motor protection breaker delivers dependable motor safety for industrial applications involving 3-phase supply. Compact design with robust mechanical functionality and a high cycle life of 100,000 operations ensures long-term reliability.

Its compliance with Green Premium standards for eco-design emphasizes sustainable manufacturing and recycling efforts.

The Schneider Electric GV2LE22 is well-suited for industrial plant automation, HVAC motor protection, manufacturing machinery safety, water treatment plants, and other electrical motor control systems requiring reliable overload and short circuit protection.
