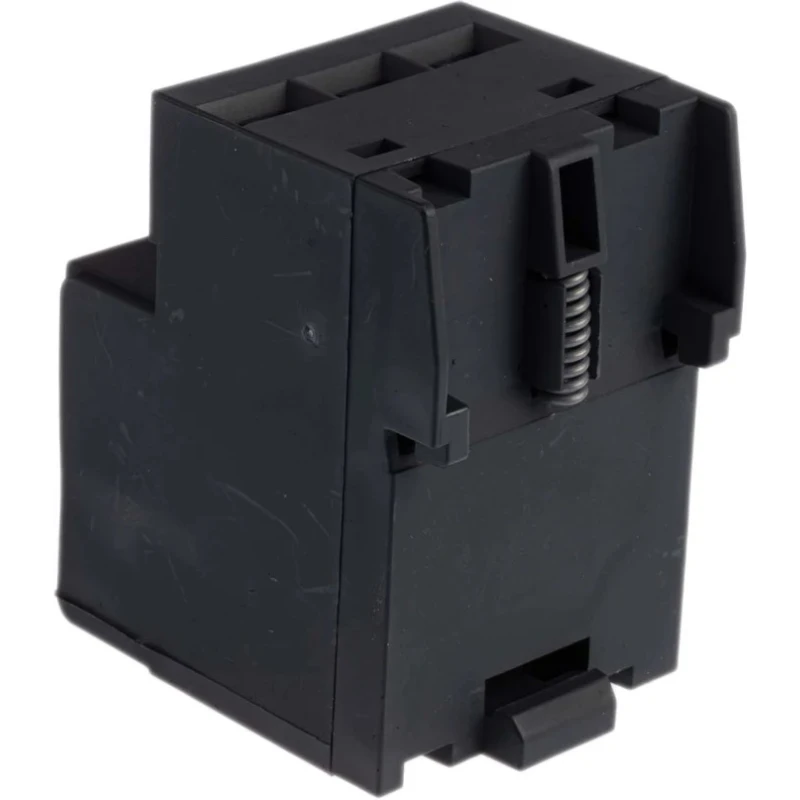

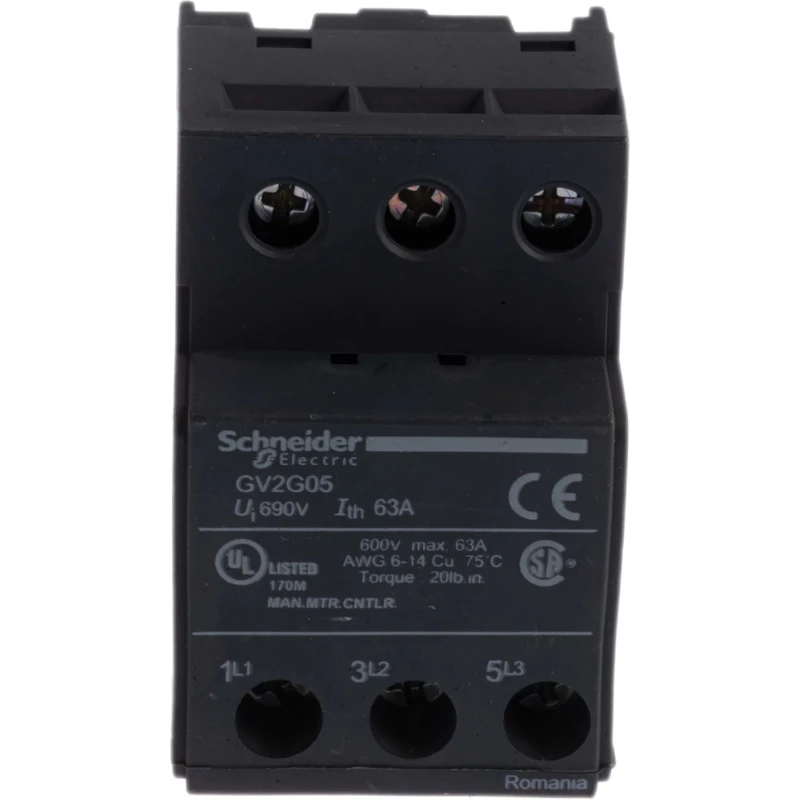

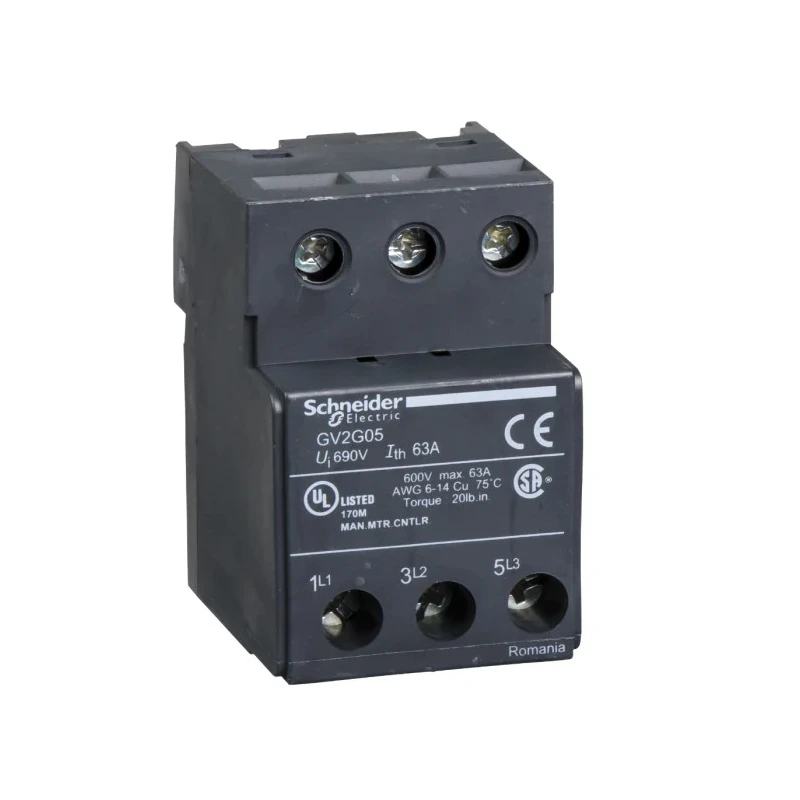

Schneider Electric TeSyS GV Contactor Terminal Block for use with GV2 Series 63A DIN Rail Mount GV2G05

Schneider Electric GV2G05 Contactor Terminal Block is engineered for use with GV2 Series contactors, supporting operational currents up to 63A. Featuring a convenient DIN rail mounting system compatible with standard 35mm rails, this terminal block enables efficient and secure electrical connections in industrial and commercial automation applications.

Its screw clamp terminals offer reliable and stable connections for both solid cables ranging from 1.5mm² to 25mm² and flexible cables from 1.5mm² to 16mm². The IP20 rating provides protection against accidental contact and ingress of solid objects larger than 12mm, ensuring safety during operation.

With a lightweight design weighing only 0.115kg, the GV2G05 terminal block is easy to install and handle. It meets international safety standards IEC 60529 for ingress protection and IEC 60947-1 for insulation, guaranteeing dependable performance in electrical panels, control cabinets, and automation systems.

This Terminal Block is ideal for industrial automation environments, including TeSys Deca and TeSys U configurations and GV1L3 3P setups, providing versatile and secure component interconnections.

Rated for operational currents up to 63A for dependable performance. Compatible with GV2 Series contactors for versatile applications. DIN rail mounting for easy installation on standard 35mm rails. Screw clamp terminals provide secure connections.

IP20 protection rating ensures safety against accidental contact. Supports a wide range of cable sizes from 1.5mm² to 25mm² solid and 1.5mm² to 16mm² flexible. Lightweight design at approximately 0.115kg enhances usability.

Complies with IEC 60529 and IEC 60947-1 safety standards. Suitable for industrial automation, electrical panels, and control cabinets. Explore more Schneider Electric products and accessories in our Contactor Accessories section for efficient and reliable electrical solutions.
