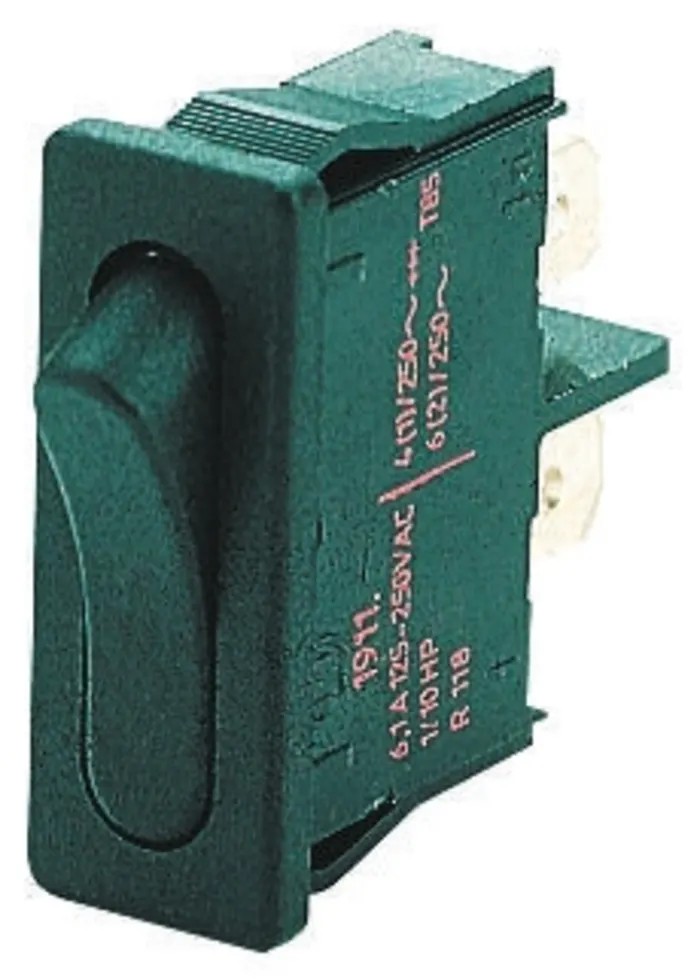

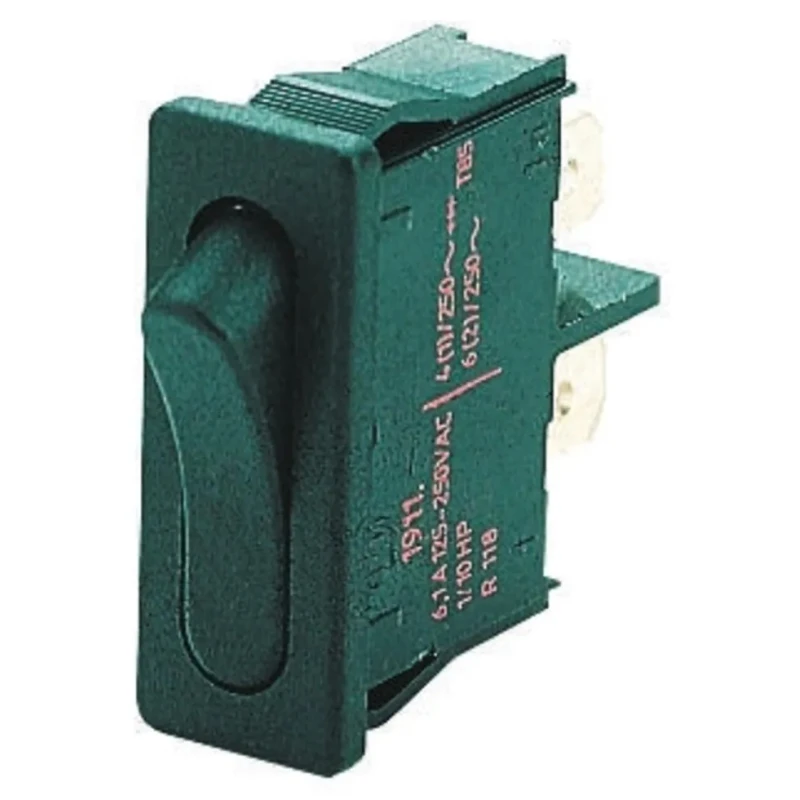

Marquardt SPST On-Off Rocker Switch Panel, Polyamide Housing, Quick Connect Terminals, 6A, 250V AC 1911.1102

Marquardt 1911.1102 SPST On-Off Rocker Switch Panel is engineered for industrial and commercial electrical control applications. Featuring a polyamide housing material, this panel-mounted rocker switch provides durability with a slimline profile and reliable snap fit into panel cutouts measuring 23.4 x 6.8 mm. The switch supports panels with thickness ranging from 0.75 to 3 mm, making it adaptable for various equipment.

The switch carries a single pole single throw (SPST) contact configuration with On-Off operation, rated for a 6A contact current at 250V AC voltage. It is designed with silver contacts providing high reliability and a contact resistance of 100MΩ. Electrical connections are achieved through 4.8 mm Faston quick connect style tab terminals that ensure fast and secure wiring.

Constructed to withstand harsh conditions, this rocker switch operates in temperatures from -20°C up to 85°C and offers IP40 ingress protection. The actuator is styled as a rectangular black rocker providing a professional appearance and intuitive operation. It has a mechanical life expectancy of 1,000,000 cycles, suitable for high duty cycle applications.

The rocker switch meets multiple regulatory standards including CSA, EN, and UR approvals, guaranteeing compliance and safety for industrial applications. It is UL 94 V-2 flammability rated for enhanced safety. The slim profile ensures easy integration into control panels with a panel thickness up to 3 mm.

This Marquardt rocker switch is ideal for various use cases such as industrial machinery controls, automation panels, HVAC systems, and other automation & electrical equipment requiring durable and reliable switching devices.

The rocker switch features a SPST contact configuration for simple on-off control. Rated for 6A contact current and 250V AC contact voltage ensuring reliable performance. Constructed with durable polyamide housing providing protection and insulation.

Panel mounting with a cutout size of 23.4 x 6.8 mm fits standard panels with thickness 0.75 to 3 mm. Quick connect terminal type allows easy and secure installation. Mechanical life expectancy of 1,000,000 cycles ensures longevity in industrial use.

Operating temperature range from -20°C to 85°C suitable for diverse environments. Compact rectangular actuator style with black color for professional appearance. IP40 rating offers basic protection against solid objects and ingress.

Complies with CSA, EN, and UR standards for safety and quality assurance. Explore the full range of Rocker Switches and industrial control components on EnvMart to find solutions that match your professional electrical design needs.
