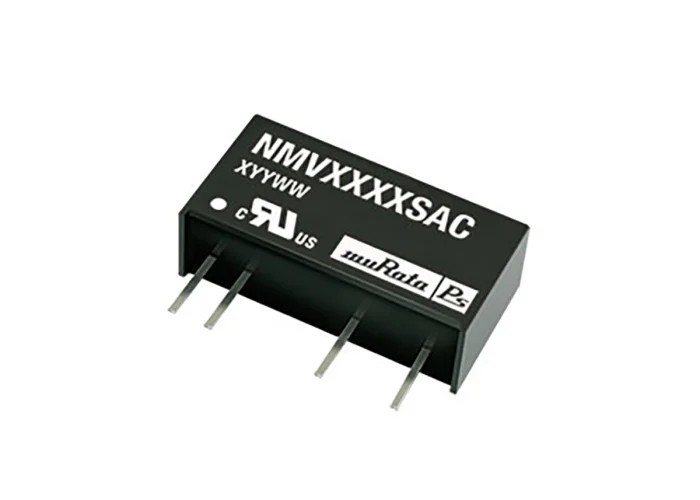

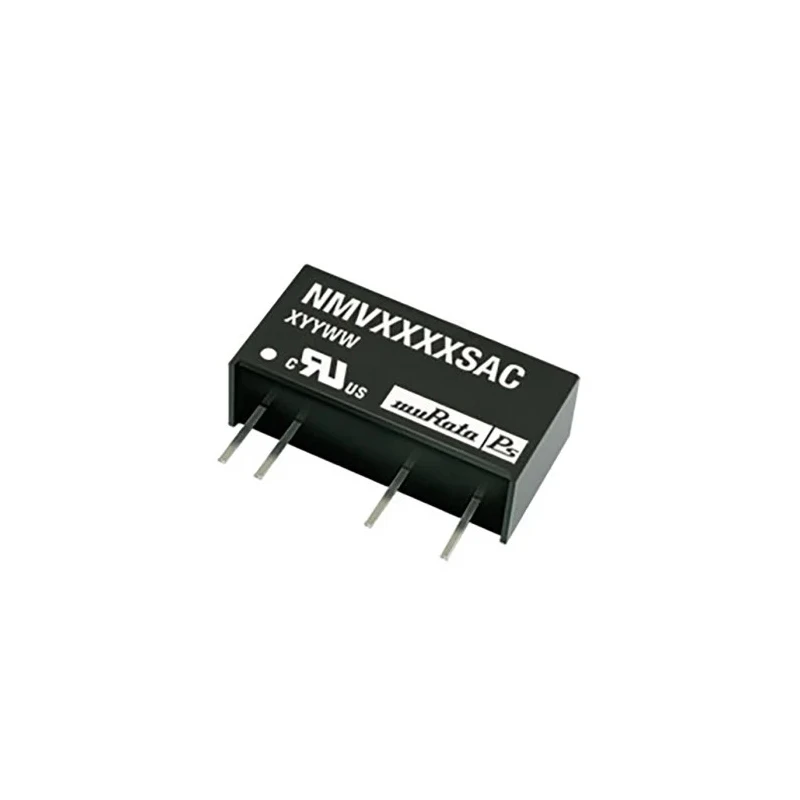

Murata Power Solutions NMV Series 1W SIP Single Output DC/DC Converter 5V Output, 4.5-5.5V Input Voltage, 3kV NMV0505SAC

Murata Power Solutions NMV0505SAC is a 1 watt single output DC/DC converter from the NMV series, designed for high efficiency and reliability in power conversion applications. Packaged in a robust SIP7 plastic housing with UL 94V-0 flame retardant material, this converter supports through hole mounting and delivers a stable 5V dc output voltage.

The device supports input voltages ranging from 4.5V to 5.5V dc, making it suitable for battery-powered and regulated supply systems. Its high isolation voltage rating of 3kV dc ensures electrical isolation between input and output circuits, enhancing functional safety in sensitive electronics.

With an operating temperature range from -40°C to 85°C, the NMV0505SAC is designed to perform reliably in harsh industrial environments. The converter’s output delivers a ripple and noise level of 23mV peak-to-peak, maintaining signal integrity for sensitive electronic systems. The efficiency of 68% enhances energy conversion, reducing heat generation and enabling compact system designs.

This model boasts a very high mean time between failures (MTBF) of over four million hours (4,241,000 hours per MIL-HDBK-217F, 25°C), underscoring its durability and long service life in demanding applications.

No external components are needed for operation, simplifying PCB layout and reducing design complexity. The internal surface mount construction combined with traditional through hole mounting allows flexible assembly options.

The NMV0505SAC DC/DC converter is ideal for industrial electronics, instrumentation, communications equipment, and power supply circuits where compact size, high isolation, and stable output are critical.

Compact SIP7 plastic package with UL 94V-0 rated materials ensures durability. High isolation voltage of 3kV dc separates input and output circuits for safety. Wide operating temperature range from -40°C to 85°C suits diverse industrial environments.

Output voltage is fixed at 5V dc with maximum output power of 1 watt. Efficiency rating of 68% with ripple and noise of 23mV peak-to-peak. Minimum average time between failures (MTBF) of over 4 million hours ensures reliability.

No external components are required, simplifying design integration. Internal surface mount construction with through hole mounting improves assembly usability. Ideal for industrial, electronic, and power supply applications requiring isolated DC voltage conversion.
