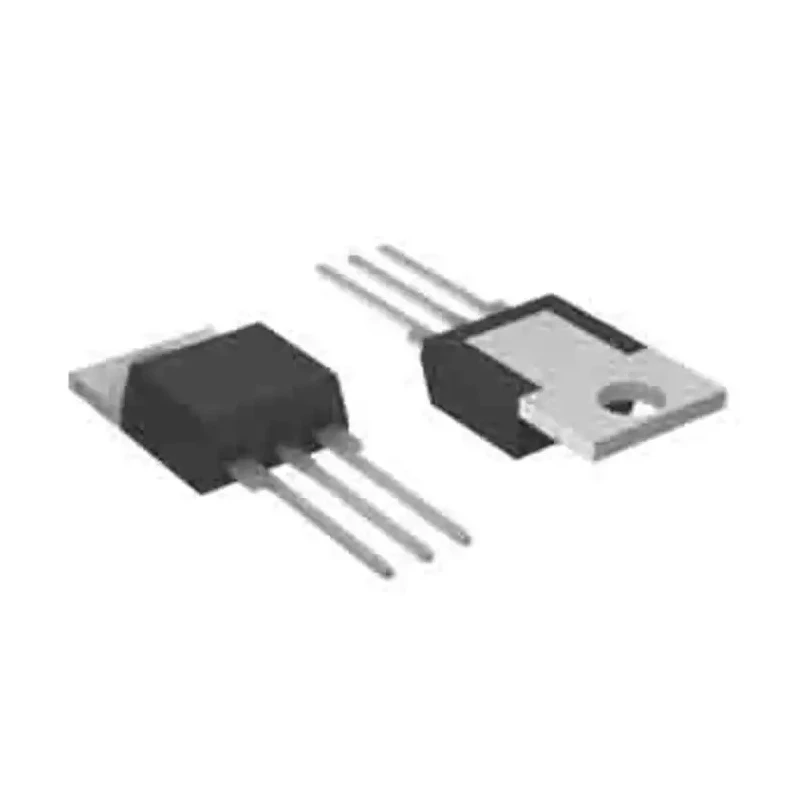

Littelfuse Thyristor SCR 600 V 16 A 10 mA 225 A TO-220L SV6016L2QTP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Littelfuse |
| Model | SV6016L2QTP |
| Mount Type | Through Hole |
| Series | SVxx16xxQ |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-220L |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Rated Average On-State Current Irms | 16A |
| Thyristor Type | SCR |
| Repetitive Peak Reverse Voltage VDRM | 600V |
| Surge Current Rating | 225A |
| Maximum Gate Trigger Current Igt | 10mA |
| Maximum Holding Current Ih | 40mA |
| Maximum Gate Trigger Voltage Vgt | 1.5V |
Key Features
- Classified as a Silicon Controlled Rectifier (SCR) for controlled rectification.
- Supports surge current rating up to 225 A.
- Equipped with a maximum gate trigger current of 10 mA for dependable switching.
- Designed for through hole mounting with a 3-pin configuration.
- Operates reliably from -40°C to 150°C maximum temperature range.
- Maximum gate trigger voltage of 1.5 V ensures efficient triggering.
- Maximum holding current up to 40 mA to maintain conduction stability.
- Complies with RoHS environmental standards for electronic components.
Product Description
Littelfuse SV6016L2QTP is a high-performance thyristor SCR designed for power electronics applications requiring reliable switching and power control at voltages up to 600 V and currents of 16 A.
This device features a TO-220L package suitable for through-hole mounting, offering ease of installation in discrete semiconductor applications. Its robust surge current capacity of 225 A makes it capable of handling transient overload conditions reliably.
The thyristor operates effectively within a wide temperature range from -40°C to 150°C, supporting demanding industrial environments. Its maximum gate trigger current of 10 mA and gate trigger voltage of 1.5 V ensure precise and consistent activation, while the 40 mA maximum holding current maintains stable conduction during operation.
Constructed to meet RoHS compliance, it aligns with environmental safety standards. As part of the SVxx16xxQ series, it is optimized for high temperature and industrial conditions, ensuring long-term durability and stability.
This Littelfuse Thyristor is ideal for use in industrial and manufacturing electronic circuits, HVAC systems, power supply modules, and applications requiring precise current control and surge resilience.
Classified as a Silicon Controlled Rectifier (SCR) for controlled rectification. Supports surge current rating up to 225 A. Equipped with a maximum gate trigger current of 10 mA for dependable switching. Designed for through hole mounting with a 3-pin configuration.
Operates reliably from -40°C to 150°C maximum temperature range. Maximum gate trigger voltage of 1.5 V ensures efficient triggering. Maximum holding current up to 40 mA to maintain conduction stability. Complies with RoHS environmental standards for electronic components.
Part of the SVxx16xxQ series tailored for high-temperature industrial applications. Ideal for power control and switching in industrial, HVAC, and manufacturing electronics.
Explore EnvMart's extensive catalog for more Littelfuse semiconductor products and industrial electronic components optimized for reliability and performance in demanding applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this thyristor is 150°C.
This model has a surge current rating of 225 A, allowing it to handle transient overload conditions reliably.
It is designed for through-hole mounting, featuring a 3-pin configuration.
The maximum gate trigger current for this thyristor is 10 mA, ensuring dependable switching.
This unit operates reliably within a temperature range from -40°C to 150°C.
The maximum holding current for this thyristor is 40 mA, which helps maintain conduction stability.
The thyristor comes in a TO-220L package type, suitable for discrete semiconductor applications.
The maximum gate trigger voltage for this model is 1.5 V, which ensures efficient triggering.
Yes, the Littelfuse SV6016L2QTP complies with RoHS environmental standards for electronic components.
The rated average on-state current for this thyristor is 16 A.
This model is part of the SVxx16xxQ series, optimized for high temperature and industrial applications.
The repetitive peak reverse voltage rating for this device is 600 V.
