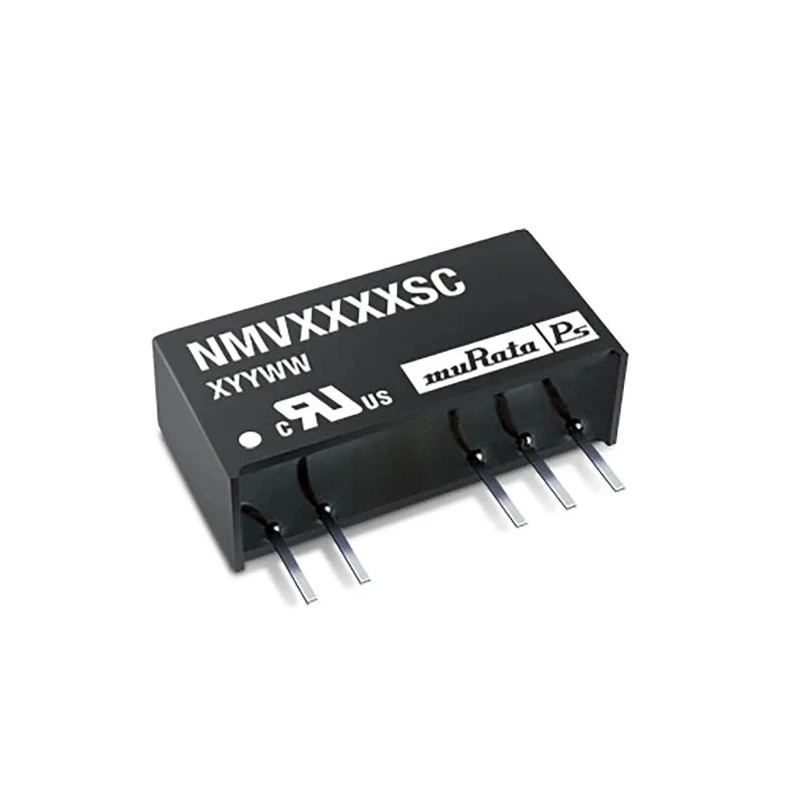

Murata Power Solutions DC/DC Converter , 1 W, 12 V DC Output, 13.2 V / 10.8 V Input, Through Hole SIP7 Package NMV1212SC

Murata Power Solutions NMV1212SC is a 1 W DC/DC Converter designed for industrial, electronic, and power supply applications requiring isolated dual voltage outputs. It provides +12 V and -12 V unregulated outputs with a maximum output current of 42 mA each, making it ideal for low power circuit designs and signal conditioning in instrumentation.

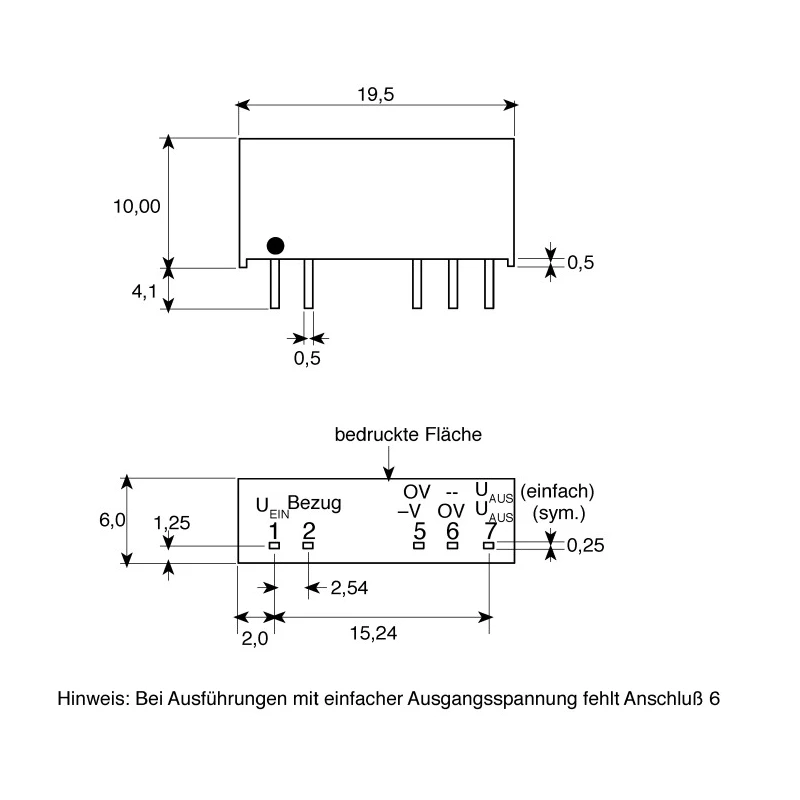

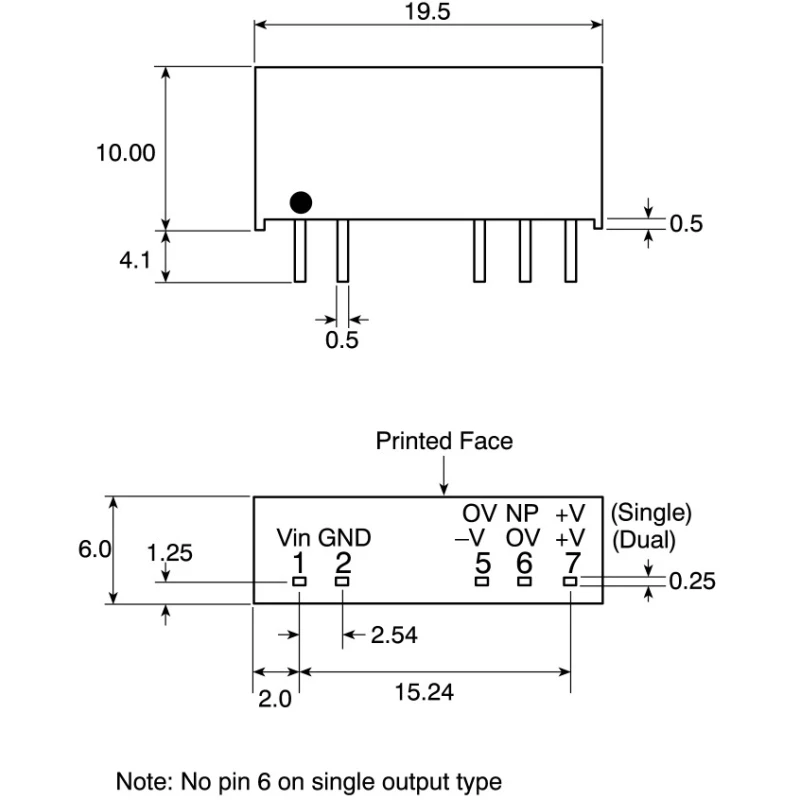

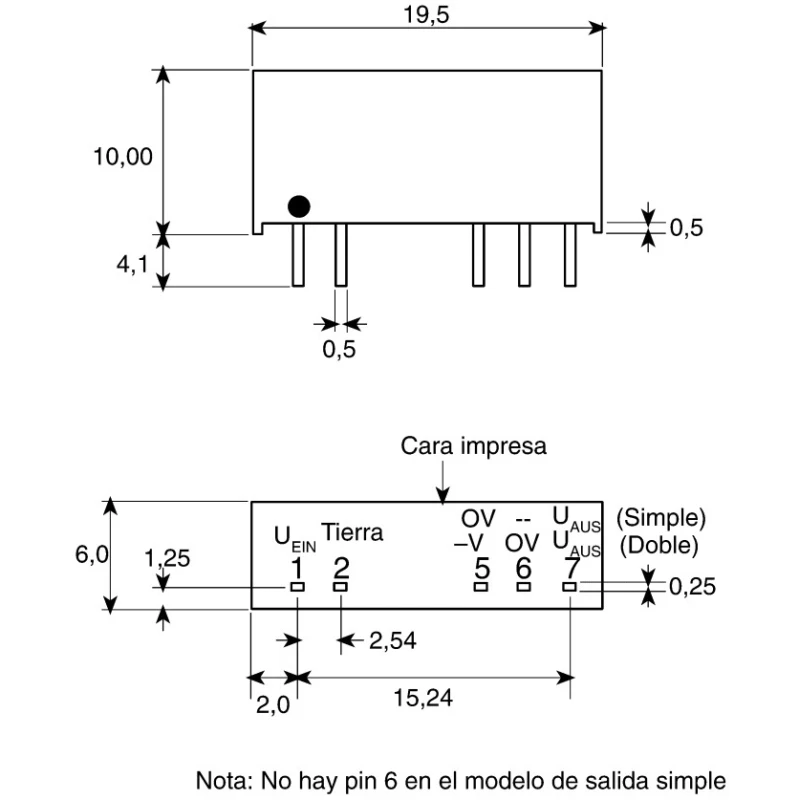

This device operates with a wide input voltage range of 10.8 V to 13.2 V dc and delivers high efficiency of 75%, minimizing power loss and heat generation. The SIP7 plastic through-hole package ensures easy mounting in various PCB configurations, with compact dimensions of 19.5 mm length, 10 mm width and depth, and a lightweight 2.1 g mass.

Key features include 3 kV dc input/output isolation voltage providing safe electrical separation, low ripple and noise of 19 mV Pk-Pk for stable power supply, and an impressive MTBF of over 1.2 million hours for enhanced dependability. It supports operation across a broad temperature range from -40°C to 85°C, suitable for demanding operating conditions in industrial and electronic environments.

The converter is internally constructed with surface-mount technology and follows the UL 94V-0 flammability standard for the package material, ensuring safety and durability in critical applications. It requires no external components, simplifying circuit design and reducing overall device footprint.

This DC/DC Converter is applicable in power supply modules, signal isolation, instrumentation, telecommunications, and other applications where compact, efficient, and reliable isolated power conversion is necessary.

High efficiency unregulated isolated DC/DC converter with 75% efficiency. Dual output voltages of +12 V and -12 V with 42 mA output current. Wide input voltage range from 10.8 V to 13.2 V dc supporting stable operation. Through hole mounting with a compact SIP7 plastic package measuring 19.5 mm length and 10 mm width and depth.

Isolation voltage of 3 kV dc ensuring safe electrical separation between input and output. Operating temperature range from -40°C to 85°C suitable for harsh environments. Low ripple and noise of 19 mV Pk-Pk to ensure clean power delivery.

MTBF of 1,287,000 hours indicating long-term reliability. No external components required due to internal SMD construction and UL 94V-0 package material. Explore the Murata Power Solutions category for advanced DC/DC Converters and related power supply components designed for industrial and electronic applications.
