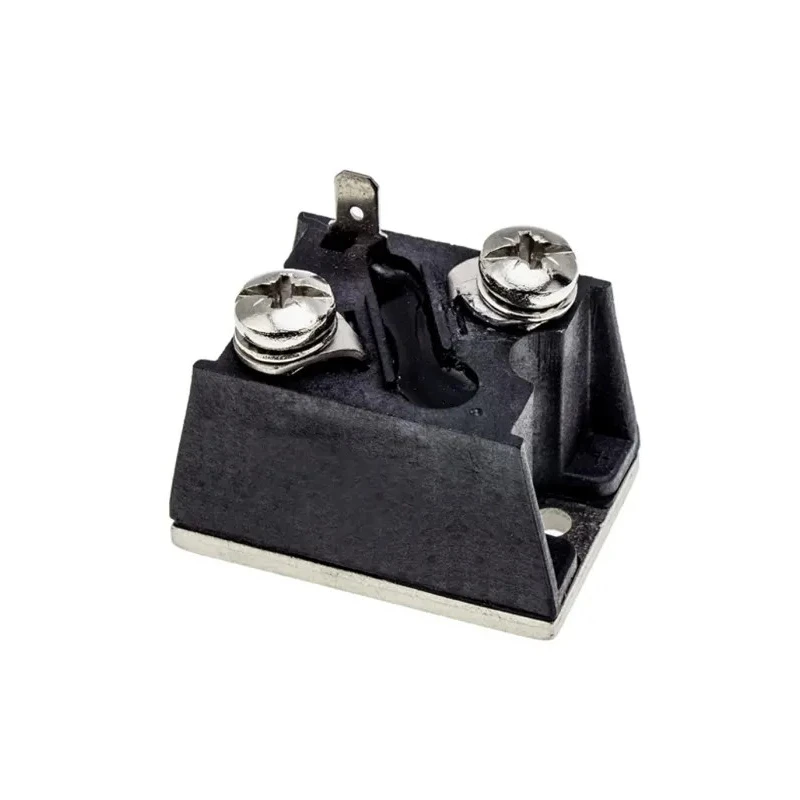

Vishay Thyristor SCR 1 kV Repetitive Peak Reverse Voltage, 90 A Rated Average On-State Current, 120 mA Gate VS-T90RIA100

Vishay VS-T90RIA100 is a high-performance SCR type thyristor, rated for 1 kV repetitive peak reverse voltage and a rated average on-state current of 90 A. It is ideal for industrial power control applications such as battery chargers, welders, plating equipment, regulated power supplies, and precise speed or temperature control circuits.

The thyristor is housed in a robust D-55 package with a panel mount, ensuring secure mechanical installation and excellent electrical isolation. It withstands operating temperatures from -40°C up to 125°C, providing reliability in demanding conditions.

Featuring a gate trigger current of 120 mA and a surge current rating of 1.87 kA, this module delivers superior transient performance. Its low peak on-state voltage of 1.55 V helps to maximize energy efficiency during conduction cycles.

The device has a maximum holding current of 200 mA and a low repetitive peak off-state current of 0.1 mA, enhancing stability in switching applications. The 3-pin configuration supports easy integration into power modules and control systems.

It is UL E78996 approved and built to strict quality standards, making it a dependable component for industrial and commercial electronic equipment. Note that the module contains beryllium oxide and must never be cut open or incinerated due to safety hazards.

High surge current capacity of 1.87 kA ensures robust performance under transient overload. Encapsulated in D-55 package type with panel mount for reliable installation. Operates within a temperature range from -40°C to 125°C for harsh environments.

Low peak on-state voltage of 1.55 V improves efficiency during conduction. 3-pin configuration allows straightforward electrical connections. Maximum holding current of 200 mA with repetitive peak off-state current of 0.1 mA for stable switching.

Designed without automotive standards, suitable for industrial and commercial electronic equipment. UL E78996 approved for quality and safety assurance. Contains beryllium oxide; must not be cut or incinerated due to safety.

This Vishay thyristor module is ideal for industrial, laboratory, manufacturing, and power control applications requiring reliable and efficient switching. Explore more Thyristor and semiconductor components in the Electronics & Electricals category on EnvMart.
