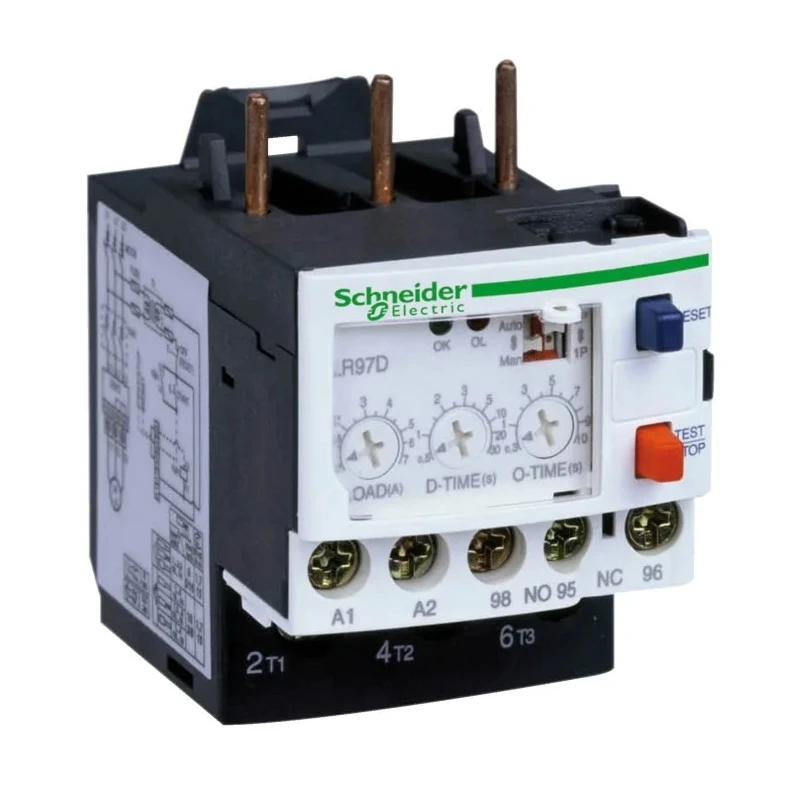

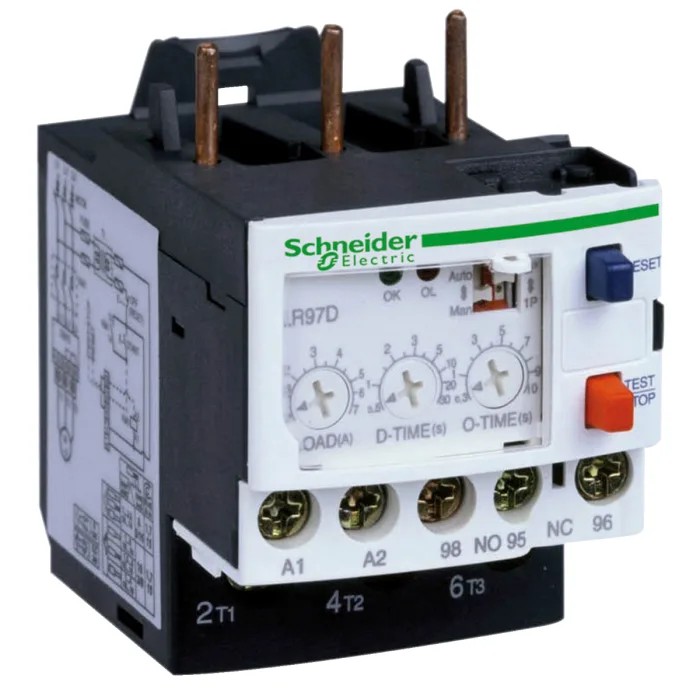

Schneider Electric LR97D07B LR97 D Overload Relay 1 NO/1 NC, 1.2A to 7A Adjustable Current Range, 55W Power Rating
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Length | 64.5mm |
| Model | LR97D07B |
| Depth | 67.5mm |
| IP Rating | IP20 |
| Width | 45mm |
| Mount Type | Direct |
| Series | LR97 D |
| Power Rating | 55W |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Supply Voltage | 24V ac/dc |
| Standards/Approvals | CSA, GOST, IEC 60255-6, IEC 60947, UL |
| Contact Voltage | 690V ac |
| Reset Method | Automatic & Manual |
| Normal State Configuration | 1 NO/1 NC |
| Relay Contact Current | 7A |
| Number of Auxiliary Contacts | 2 |
| Pole and Throw Configuration | 3 |
| FLC Motor Rating | 1.2, 7A |
| Adjustable Current Range | 1.2 → 7 A |
| LED status indication | Voltage, Starting, Steady State, Overload, Trip |
| Trip status monitored | Over-Current, Rotor Locked, Phase Failure (L1, L2, L3) |
Key Features
- Equipped with 1 normally open and 1 normally closed contact for reliable switching.
- Automatic and manual reset methods for flexible operation.
- Designed for direct mount with screw terminal connections for secure installation.
- LED indicators provide status for voltage, starting, steady state, overload, and trip conditions.
- Monitors multiple trip statuses including over-current, rotor locked, and phase failures.
- Wide operating temperature range from -25°C to 60°C ensures reliable performance in diverse environments.
- IP20 protection rating suitable for indoor electrical installations.
- Complies with international standards CSA, GOST, IEC 60255-6, IEC 60947, and UL for safety and quality.
Product Description
Schneider Electric LR97D07B LR97 D Overload Relay is engineered for demanding motor protection applications where machinery may experience difficult starts, high resistive torque, or mechanical faults. Featuring a 1 NO/1 NC contact configuration, it facilitates dependable control with a power rating of 55W and adjustable current range from 1.2A up to 7A.
The relay supports both automatic and manual reset methods, enhancing operational flexibility. Mountable directly with screw terminals, it ensures secure electrical connections. The integrated LEDs indicate voltage presence and operational states such as starting, steady state, overload, and trip conditions, allowing clear visual diagnostics.
It monitors critical trip conditions including over-current, rotor locked condition, and phase failures (L1, L2, L3), supporting comprehensive motor protection. With robust build dimensions of 64.5mm length, 45mm width, and 67.5mm depth, it fits compact panels efficiently.
Operating reliably within temperature ranges from -25°C to 60°C, the overload relay is suitable for industrial, manufacturing, HVAC, and automation environments. It carries international approvals including CSA, GOST, IEC 60255-6, IEC 60947, and UL standards, assuring compliance and quality.
Equipped with 1 NO/1 NC contact for switching and protection. LED status indicators for operational transparency. Automatic and manual reset capabilities. Direct mount with screw terminal type. Monitors multiple fault conditions including phase failures.
Compact dimensions with robust construction. Wide temperature range for varied industrial environments. IP20 rated for indoor electrical setups. International safety and performance certifications. 24V AC/DC supply voltage for versatile applications.
This overload relay is an ideal choice for industrial automation and motor protection applications. For more Schneider Electric products and Overload Relay options, explore EnvMart’s extensive catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LR97D07B overload relay has an adjustable current range from 1.2A to 7A.
It has a power rating of 55W.
This model features a configuration of 1 normally open (NO) and 1 normally closed (NC) contact.
The supply voltage for this overload relay is 24V AC/DC.
The operating temperature range is from -25°C to 60°C.
The dimensions are 64.5mm in length, 45mm in width, and 67.5mm in depth.
It supports both automatic and manual reset methods.
The IP rating is IP20, making it suitable for indoor electrical installations.
It monitors trip statuses including over-current, rotor locked, and phase failures (L1, L2, L3).
It complies with international standards including CSA, GOST, IEC 60255-6, IEC 60947, and UL.
It is designed for direct mounting with screw terminal connections for secure installation.
The relay includes LED indicators for voltage presence, starting, steady state, overload, and trip conditions.
