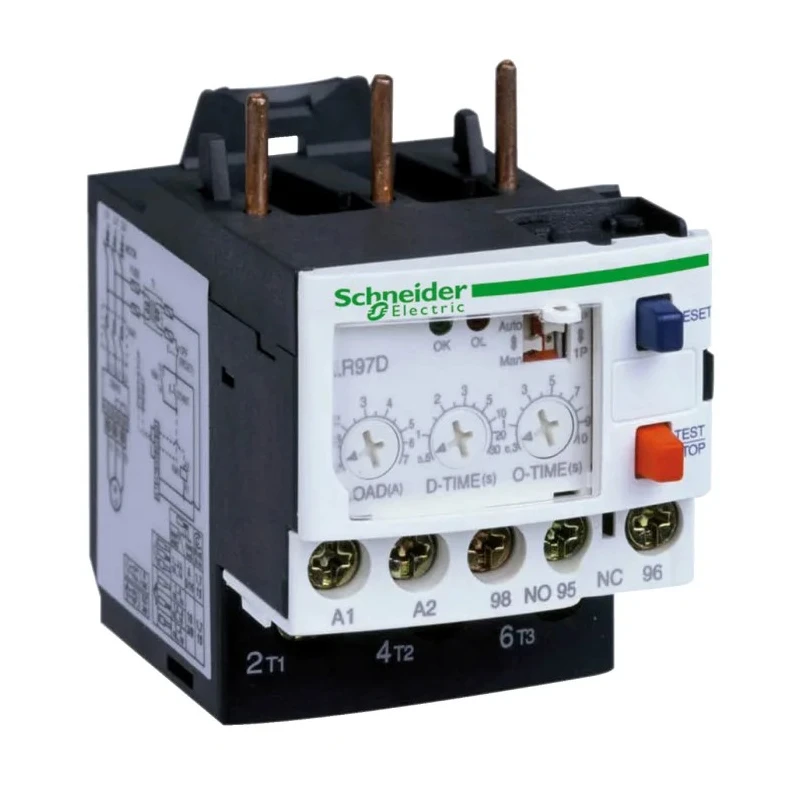

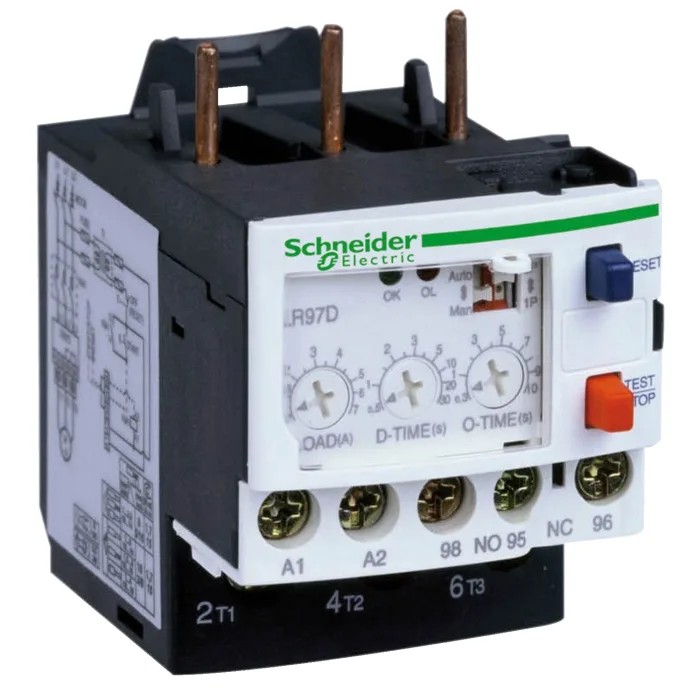

Schneider Electric LR97 D Overload Relay 1 NO/1 NC, Adjustable Current 0.3-1.5 A, 1.5 A F.L.C, 55 W Power Rating

Schneider Electric LR97 D Overload Relay LR97D015F7 is engineered for advanced machine protection applications where equipment may experience challenging start-up conditions, mechanical failures, or high inertia loads. It is suitable for monitoring motor currents and providing reliable overload detection with adjustable current range from 0.3 A to 1.5 A and a power rating of 55 W.

This overload relay features a 3-pole configuration with 1 normally open and 1 normally closed relay contact, ensuring precise control and monitoring of motor protection circuits. The relay supports both automatic and manual reset methods, enhancing operational flexibility in industrial environments.

LED indicators provide comprehensive status information including voltage presence, motor starting, steady operation, overload condition, and trip events. The relay continuously monitors critical trip conditions such as over-current, rotor locking, and phase failure on phases L1, L2, and L3.

Designed for tough industrial conditions, the LR97 D overload relay operates reliably within an ambient temperature span of -25°C to 60°C and features IP20 protection. Installation is simplified through direct mount type with screw terminals, facilitating secure connections.

The compact form factor measures 64.5mm in length, 45mm in width, and 67.5mm in depth, enabling integration in various control panels and equipment. The device adheres to stringent international standards including IEC 60255-6, UL, CSA, and GOST, assuring high quality and safety compliance.

This Schneider Electric LR97 D overload relay is ideal for industrial, manufacturing, HVAC, and automation applications requiring dependable motor overload protection and monitoring.

Features 1 normally open and 1 normally closed contact configuration. Supports automatic and manual reset options for flexible operation. Includes LED status indication for voltage, starting, steady state, overload, and trip.

Monitors trip status including over-current, rotor locked condition, and phase failure on L1, L2, and L3. Operates within an ambient temperature range of -25°C to 60°C. Mounts directly with screw terminals for secure installation.

Complies with international standards including IEC 60255-6, UL, CSA, and GOST. Compact dimensions of 64.5mm length, 45mm width, and 67.5mm depth. Browse the complete range of Overload Relays, contactors, and other control gear at EnvMart for reliable electrical and automation solutions.
