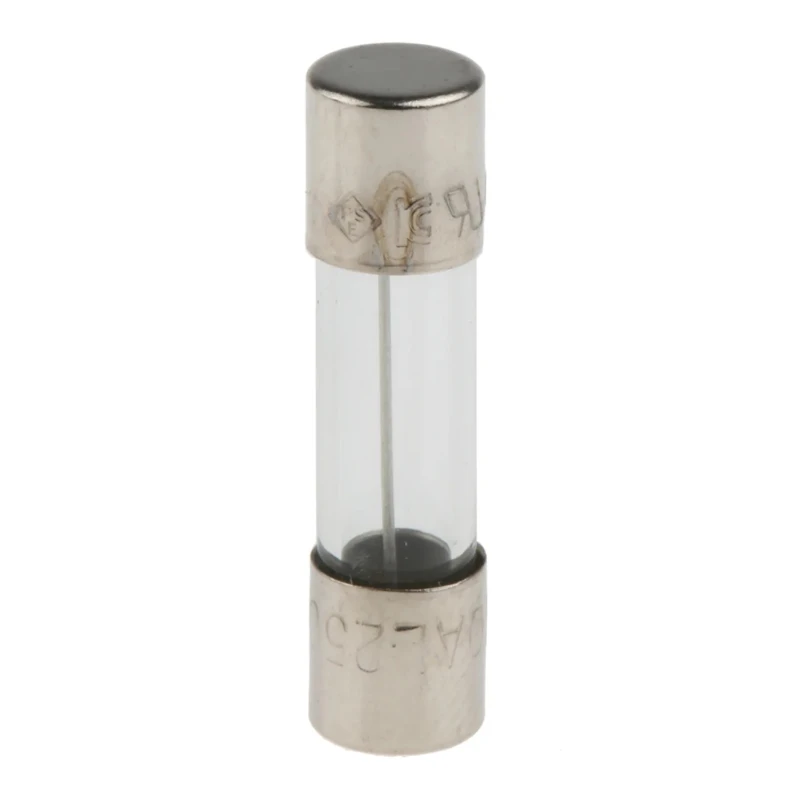

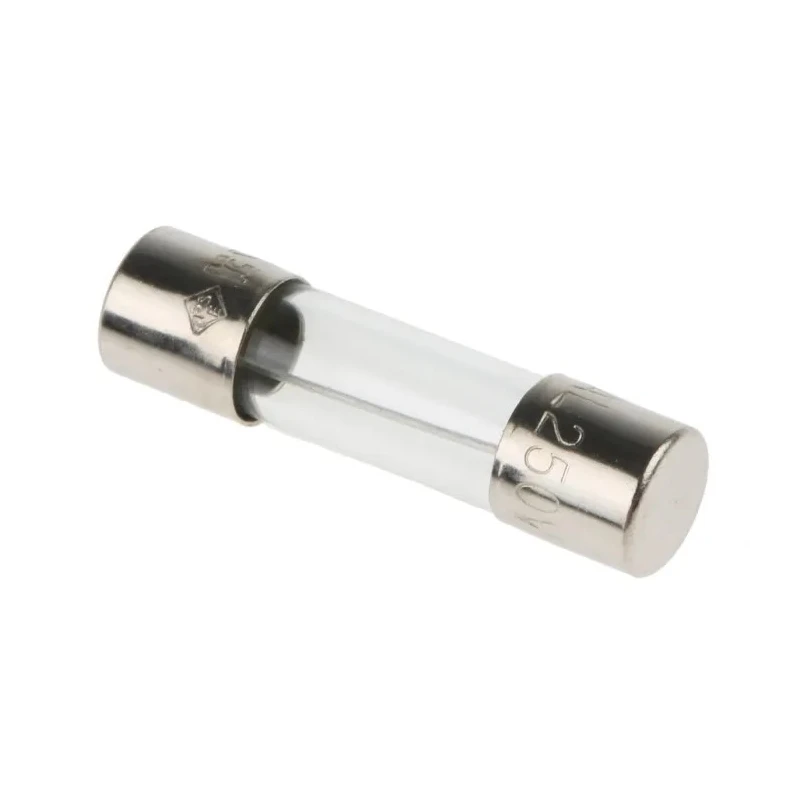

Littelfuse 10A T Glass Cartridge Fuse, 5 x 20 mm, 250V AC, Time Delay, Series 218 0218010.MXP

Littelfuse 0218010.MXP is a 10A glass cartridge fuse designed for 250V AC circuits, featuring a 5 x 20 mm size and T speed rating for time delay operation. This fuse helps protect electrical devices and internal circuitry from short circuits and overcurrent conditions by safely interrupting excessive current flow.

The fuse's glass body construction allows for easy visual confirmation if the fuse has blown, ensuring quick maintenance without the need for specialized equipment. Its dimensions of 5 mm diameter and 20 mm length make it compatible with standard 5 x 20 mm fuse holders commonly found in industrial, commercial, automotive, and residential electrical equipment.

The time delay (T) or anti-surge rating enables the fuse to tolerate short surges of high current without blowing immediately, which is vital in applications with transient starting currents, such as motors, pumps, and air conditioning units. Its operating temperature range spans from -55°C to +125°C, ensuring durability and effective protection in varied environmental conditions.

This fuse belongs to series 218 and features a low breaking capacity (LBC), making it suitable for protecting circuits with fault currents within the fuse's rating. It carries multiple international approvals including CCC, CE, CSA, K-MARK, SEMKO, UL, and VDE, signifying compliance with rigorous safety and performance standards.

Typical applications include industrial equipment, commercial appliances, automotive systems, and residential electronic protection. When the fuse blows, it must be replaced to reestablish circuit functionality. The 5 x 20 mm size is standard and widely supported in various fuse holders, allowing easy integration in devices requiring overcurrent protection.

Glass body construction for visible fuse status. 5 x 20 mm standard cartridge size. Time delay T speed rating for surge tolerance. Wide operating temperature range (-55°C to +125°C). Low breaking capacity for standard circuit protection.

Compliant with major international standards. Suitable for industrial, commercial, automotive, and residential uses. Replaceable Cartridge Fuse design. Explore our catalog for more Littelfuse circuit protection products at EnvMart, your trusted source for high-quality electrical safety components.
