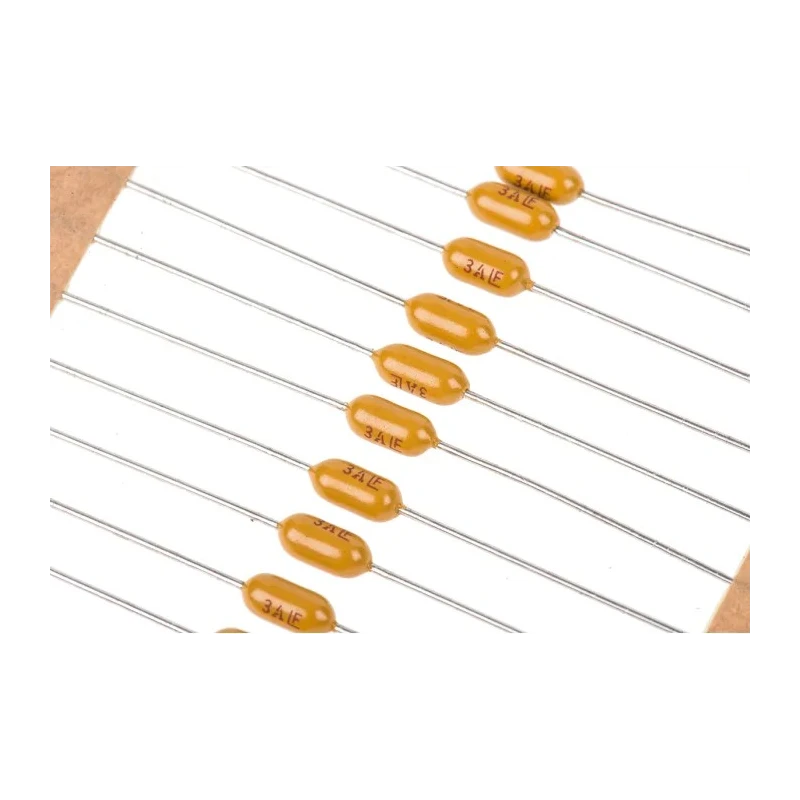

Littelfuse Non-Resettable Ceramic Body Fuse Axial Lead 3A 125 V AC/DC Time Delay 0473003.HAT1L
Specifications
| Country of Origin | Philippines |
|---|---|
| Voltage | 125, 125V ac |
| Diameter | 3.43mm |
| Brand | Littelfuse |
| Body Material | Ceramic |
| Height | 7.11mm |
| Model | 0473003.HAT1L |
| Width | 7.11mm |
| Current Rating | 3A |
| Series | 473 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Lead Length | 38.1mm |
| Breaking Capacity | 50A |
| Standards/Approvals | UL, CSA |
| Lead Diameter | 0.64mm |
| Fuse Characteristics | Time Delay |
| Lead Orientation | Axial |
| Axial lead 2 submin PCB T fuse,3ABrand | Littelfuse |
Key Features
- Time-delay fuse designed for enhanced in-rush current withstand.
- Ceramic body offers robust electrical insulation and durability.
- Axial lead configuration with 38.1 mm lead length for easy PCB mounting.
- Breaking capacity of 50A ensures reliable circuit protection.
- Operates reliably within -55°C to 125°C temperature range.
- Compact subminiature fuse with 3.43 mm diameter and 7.11 mm height and width.
- Meets UL and CSA safety standards for global compliance.
- Manufactured in the Philippines to strict quality standards.
Product Description
Littelfuse 0473003.HAT1L is a precision-engineered non-resettable fuse featuring a ceramic body and axial lead design. Rated for 3 amps at 125 volts AC and DC, this fuse offers time-delay characteristics suitable for applications requiring enhanced in-rush current withstand. The ceramic material provides excellent durability and electrical insulation to safeguard sensitive electrical components.

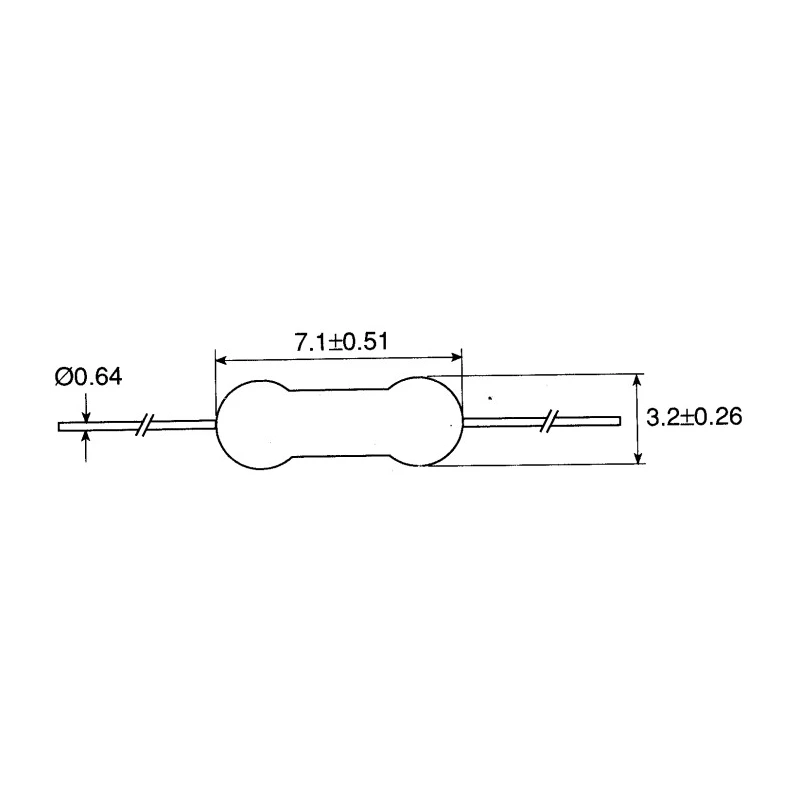

The fuse leads measure 38.1 mm in length with a diameter of 0.64 mm, facilitating secure through-hole mounting on printed circuit boards or assemblies. Its compact dimensions of 7.11 mm width and height, combined with a diameter of 3.43 mm, make it ideal for space-constrained industrial electronic designs.
Designed to safely interrupt fault currents up to 50 amps, this fuse complies with UL and CSA approvals ensuring reliability and safety in demanding industrial and commercial environments. It operates efficiently within a temperature range of -55°C minimum to 125°C maximum, suitable for diverse ambient conditions.
This fuse belongs to the Littelfuse 473 Series of time-delay fuses, recognized for their subminiature size and robustness in automations, electrical, and control applications. It is primarily used in circuit protection for electrical equipment, automation systems, industrial machinery, and various electrical installations requiring dependable overcurrent protection.
Time-delay fuse designed for enhanced in-rush current withstand. Ceramic body offers robust electrical insulation and durability. Axial lead configuration with 38.1 mm lead length for easy PCB mounting. Breaking capacity of 50A ensures reliable circuit protection.
Operates reliably within -55°C to 125°C temperature range. Compact subminiature fuse with 3.43 mm diameter and 7.11 mm height and width. Meets UL and CSA safety standards for global compliance. Manufactured in the Philippines to strict quality standards.
Ideal for industrial, electrical, automation, and manufacturing applications, this Littelfuse fuse provides robust circuit protection where resettable devices are not feasible. Its small form factor supports efficient assembly and integration into complex systems. Browse more Non-Resettable Fuses on EnvMart to find suitable protective components for your design requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 3A.
It is rated for 125V AC and DC.
The breaking capacity is 50A, which ensures reliable circuit protection.
It has a diameter of 3.43 mm and a height and width of 7.11 mm.
The fuse features a lead length of 38.1 mm.
The body is made from ceramic, providing robust electrical insulation and durability.
It operates reliably within a temperature range of -55°C to 125°C.
It is a time-delay fuse designed for enhanced in-rush current withstand.
It meets UL and CSA safety standards for global compliance.
The lead diameter is 0.64 mm.
It is manufactured in the Philippines to strict quality standards.
This fuse is suitable for circuit protection in electrical equipment, automation systems, and industrial machinery.
