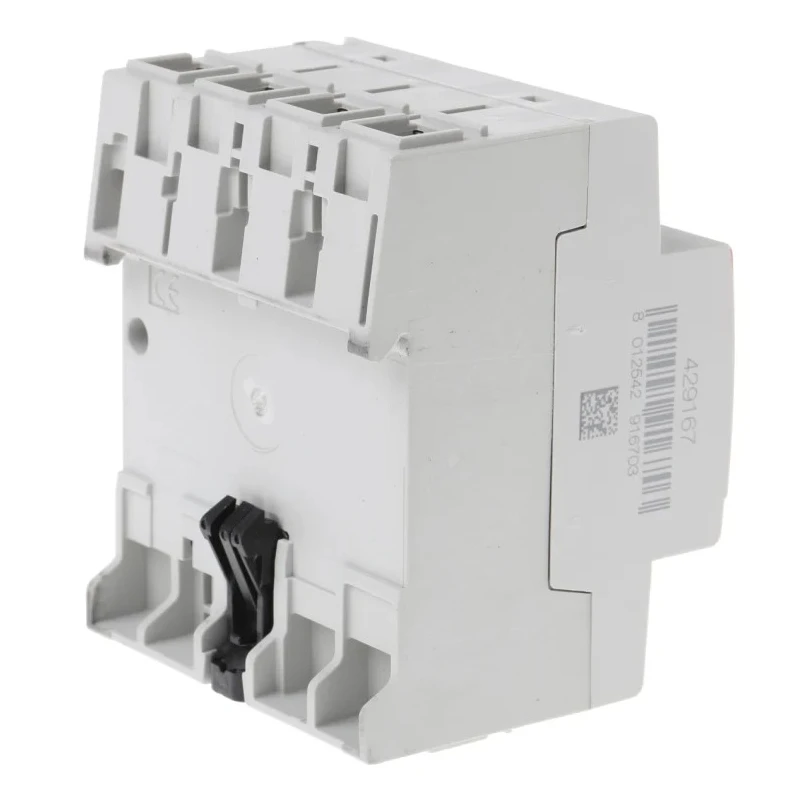

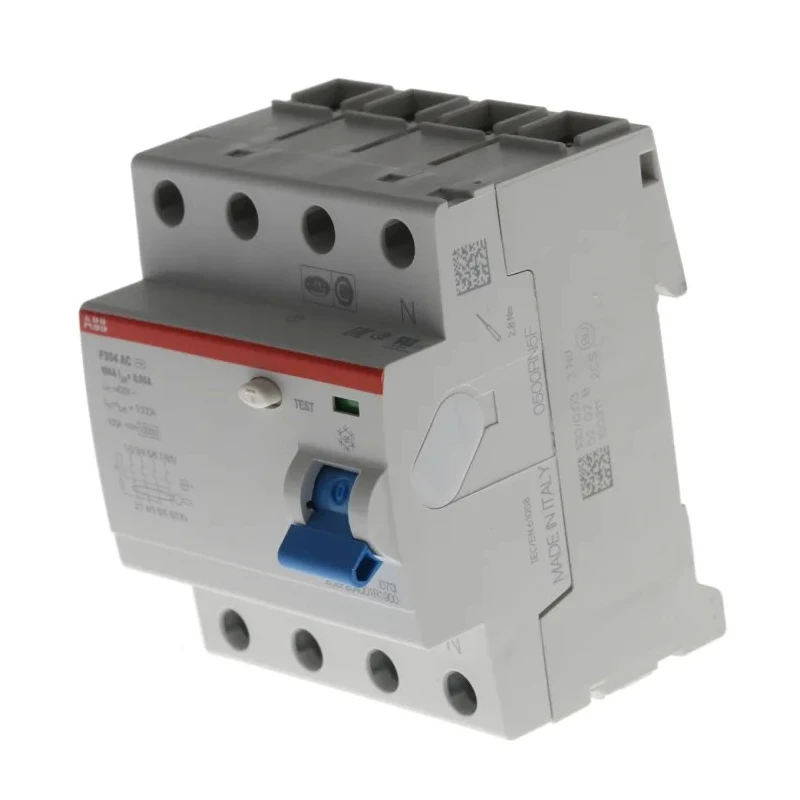

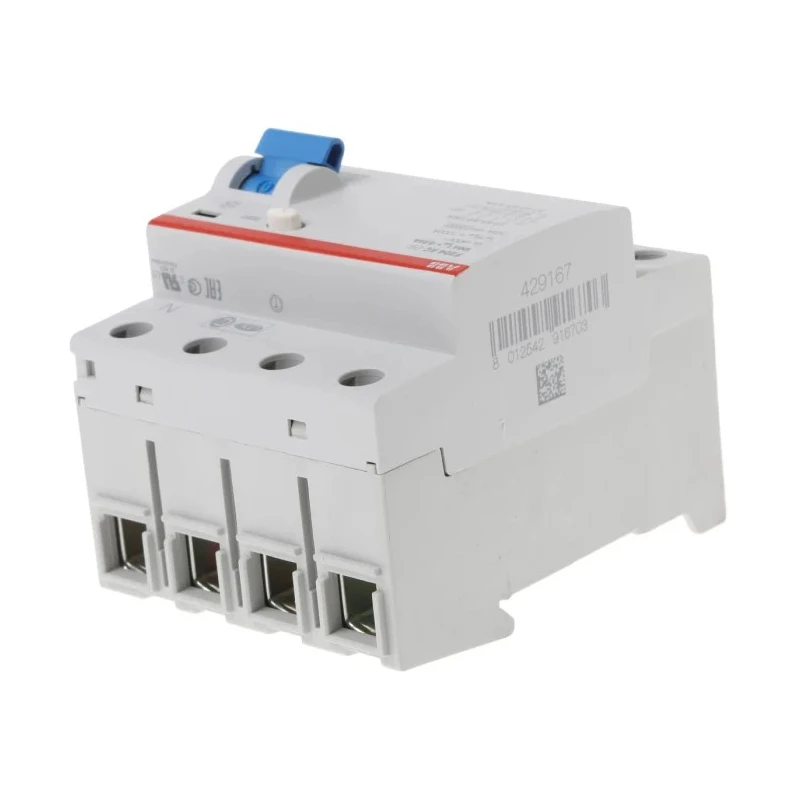

ABB F200 Series Residual Current Circuit Breaker 100A 4-Pole 30 mA Type AC 1 kA 400V ac 2CSF204001R1900 F204 AC-100/0,03

Free Delivery in India | Lowest Global Shipping Charges

ABB F200 Series Residual Current Circuit Breaker 100A 4-Pole 30 mA Type AC 1 kA 400V ac 2CSF204001R1900 F204 AC-100/0,03



Category Residual Current Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	India
Range	System Pro M Compact
Brand	ABB
Height	91mm
Model	2CSF204001R1900 F204 AC-100/0,03
Depth	69mm
Width	70mm
Mount Type	DIN Rail
Current Rating	100A
Series	F200
Terminal type	Screw
Breaking Capacity	1kA
Number of Poles	4
Standards/Approvals	UL 1053, REACH, IEC/EN 61008, RoHS
Rated AC Voltage	400V ac
Tripping Characteristics	Type AC
Reset Actuator Type	Toggle Switch
Trip Sensitivity	30mA
Break Time	Instantaneous
Earth Leakage Protection Type	AC
RCBO's	DIN rail mounting with an operating temperature range of -25 to +55 °C. Optimum frequency range of 50 to 60Hz
4 pole RCCB,100A 30mA sensitivityBrand	ABB

Key Features

Features compact DIN rail mounting for easy installation.
Equipped with toggle switch reset actuator for user convenience.
Breaking capacity of 1 kA ensures high fault current interruption.
Complies with UL 1053, REACH, IEC/EN 61008, and RoHS standards for safety and quality.
Mechanical flag trip indicator for immediate fault indication.
Operating temperature range from -25 °C to +55 °C suitable for diverse environments.
Designed for residential and commercial electrical protection applications.
Offers instantaneous break time for rapid fault response.

Product Description

ABB 2CSF204001R1900 F204 AC-100/0,03 Residual Current Circuit Breaker is part of the F200 Series designed for ground fault protection in residential and commercial installations. It monitors leakage currents and trips to prevent electrical hazards effectively in 4-pole configurations at 100A current rating.

This RCCB is DIN rail mounted and features a toggle switch reset actuator alongside a mechanical flag trip indicator, ensuring ease of operation and clear fault signalling. With a trip sensitivity of 30 mA and Type AC tripping characteristic, it reliably detects earth leakage currents. Its compact form factor with dimensions of 91mm height, 70mm width, and 69mm depth allows integration into standard electrical panels.

Engineered for durability and safety, this model meets rigorous international standards including UL 1053, REACH, IEC/EN 61008, and RoHS. It delivers a breaking capacity of 1 kA at 400V AC and offers instantaneous break time for immediate fault clearing. Suitable for operating temperatures ranging from -25 °C to +55 °C and frequencies between 50 and 60 Hz, it is ideal for diverse industrial and residential electrical applications.

Compact DIN rail mount design for space-efficient panel installation. Clear mechanical flag to indicate trip status and system faults. Toggle switch actuator for reliable and convenient reset functionality. Designed to handle rated current of 100A in a 4-pole configuration.

Offers protection sensitivity at 30 mA for precise earth leakage detection. Conforms to multiple international safety and environmental standards. Breaking capacity of 1 kA ensures interruption of high fault currents. Instantaneous trip response enhances electrical safety and system protection.

This ABB F200 Series RCCB is a trusted solution for ensuring electrical safety in domestic, industrial, and commercial settings. Browse EnvMart’s extensive range of circuit breakers and residual current devices for comprehensive electrical protection products.
