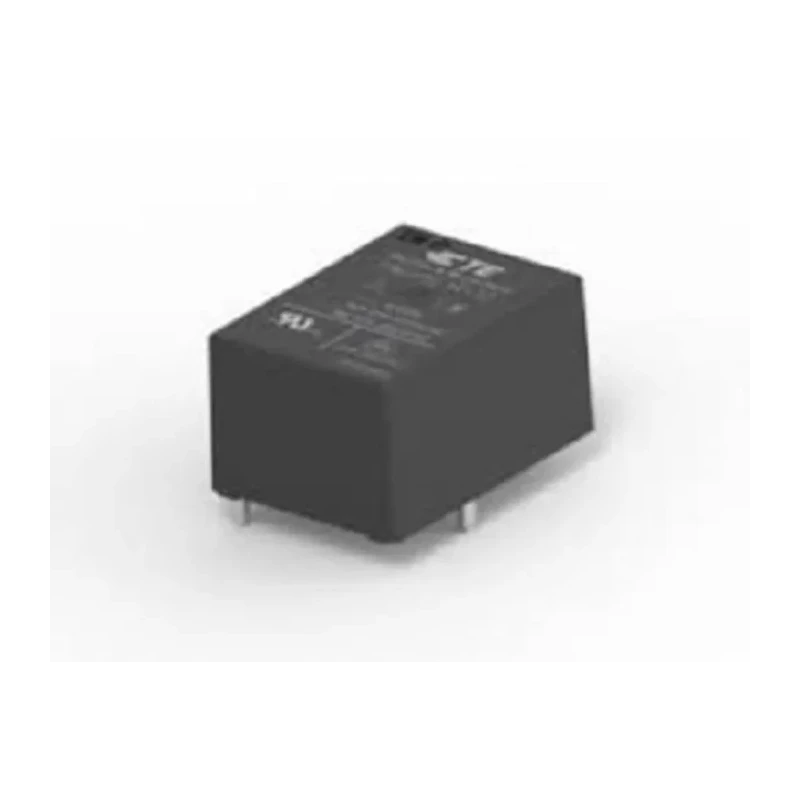

TE Connectivity PCB Non-Latching Relay 24V DC Coil 30A Switching Current SPDT SPST 1558666-7
Specifications
| Country of Origin | Portugal |
|---|---|
| Brand | TE Connectivity |
| Height | 15mm |
| Length | 20mm |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | T9G |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT, SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 30A |
| Terminal type | Solder |
| Contact Resistance | 50mΩ |
| Standards/Approvals | RoHS, UL |
| Coil Resistance | 640Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 900mW |
Key Features
- This relay is designed for PCB mount with solder terminals ensuring secure mounting.
- The coil power consumption is 900mW with a coil resistance of 640 ohms.
- Operates reliably between -40°C and 85°C, suitable for harsh industrial environments.
- The relay supports switching voltages up to 30V DC and 250V AC.
- Compact dimensions of 20mm length, 15mm height, and 10mm width enable efficient PCB utilization.
- Constructed with silver alloy contacts providing low contact resistance of 50 milliohms for efficient conduction.
- Conforms to RoHS and UL standards ensuring safe and compliant operation.
- Ideal for applications in HVAC, appliances, industrial controls, and energy management systems.
Product Description
TE Connectivity 1558666-7 PCB Non-Latching Relay features a robust design with a 24V DC coil and a 30A switching current capability. It includes SPDT and SPST contact configurations suitable for versatile circuit switching applications.
This relay is designed for Printed Circuit Board (PCB) mounting with solder type terminals, ensuring a reliable and stable connection. It belongs to the T9G series known for compactness, with dimensions of 20mm in length, 15mm in height, and 10mm in width, offering 30% smaller package size for improved PCB space utilization.
The coil resistance is 640 ohms with a power rating of 900mW. It operates efficiently in a temperature range from -40°C up to 85°C, allowing it to function in demanding industrial and commercial environments.
The contact material is a silver alloy that delivers a low contact resistance of 50mΩ which enhances electrical performance and durability. Switching voltage capacities reach up to 30V DC and 250V AC, with a switching current of 30A, making it suitable for controlling high currents safely.
Compliant with RoHS directives and UL approvals, this relay assures environmentally friendly and safety-compliant usage. It finds wide applications in HVAC systems, household appliances, industrial control circuits, and energy management solutions.
PCB Mount with solder terminals for secure installation. Compact T9G series for space-saving layouts. Wide operating temperature range from -40°C to 85°C. High switching current of 30A for power relay applications. Silver alloy contacts for reliability and low resistance.
Conforms to RoHS and UL standards. Suitable for HVAC, Appliances, Industrial Controls, and Energy Management. Explore more TE Connectivity relays and power relay solutions for your industrial and electronic applications at EnvMart.
Explore more products in our Power Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current capacity of 30A, making it suitable for controlling high currents in various applications.
The relay measures 20mm in length, 15mm in height, and 10mm in width, allowing for efficient PCB utilization.
It operates with a coil voltage of 24V DC, which is essential for its activation.
This unit operates reliably between -40°C and 85°C, making it suitable for harsh industrial environments.
The relay features both SPDT (Single Pole Double Throw) and SPST (Single Pole Single Throw) contact configurations, allowing for versatile circuit switching.
It is designed with solder type terminals for secure PCB mounting, ensuring a stable connection.
The contacts are made of silver alloy, which provides low contact resistance of 50 milliohms for efficient conduction.
The relay supports switching voltages up to 30V DC and 250V AC, suitable for various electrical applications.
The coil resistance is 640 ohms, which is a critical specification for its operation.
It conforms to RoHS and UL standards, ensuring safe and environmentally compliant operation.
This model is ideal for applications in HVAC systems, household appliances, industrial controls, and energy management solutions.
The coil power consumption is 900mW, which is important for understanding its energy requirements.
