ABB F200 Series Residual Current Circuit Breaker 40A 2-Pole 30mA Type AC 230V 2CSF202001R1400 F202 AC-40/0,03

Free Delivery in India | Lowest Global Shipping Charges

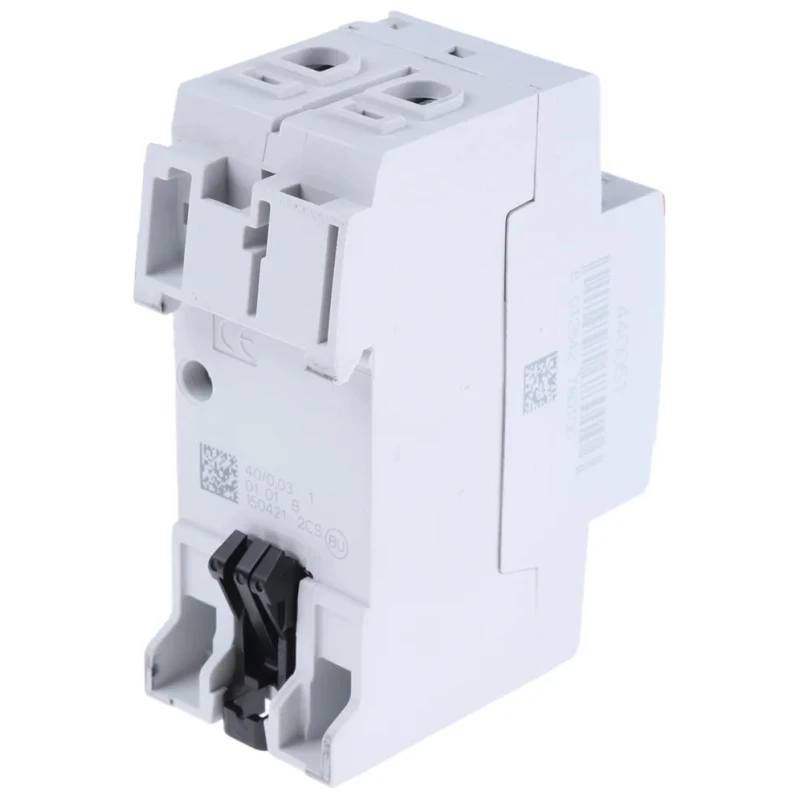

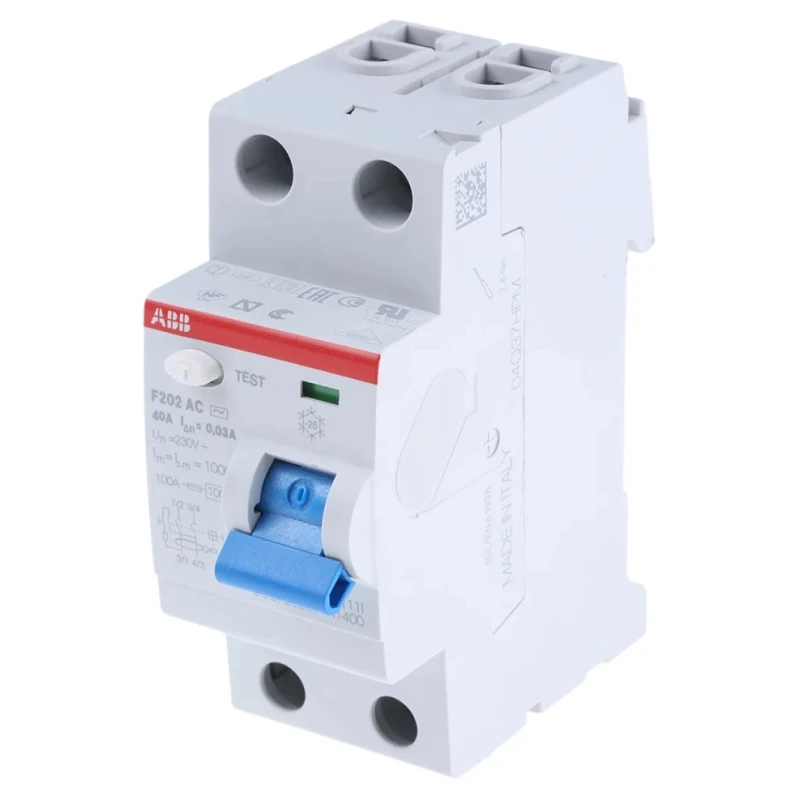

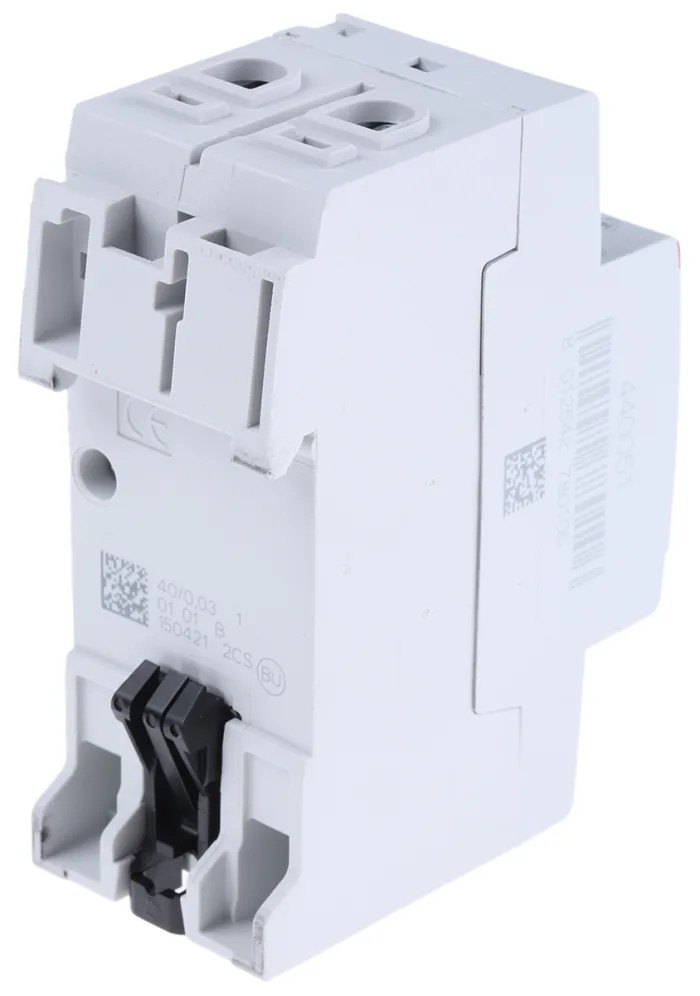

ABB F200 Series Residual Current Circuit Breaker 40A 2-Pole 30mA Type AC 230V 2CSF202001R1400 F202 AC-40/0,03



Category Residual Current Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	India
Range	RCCBs F200
Brand	ABB
Height	85mm
Model	2CSF202001R1400 F202 AC-40/0,03
Depth	85mm
Width	69mm
Mount Type	DIN Rail
Current Rating	40A
Series	F200
Terminal type	Screw
Breaking Capacity	0.03A
Number of Poles	2
Standards/Approvals	RoHS, CE
Tripping Characteristics	Type AC
Reset Actuator Type	Toggle Switch
Trip Sensitivity	30mA
Break Time	Instantaneous
Earth Leakage Protection Type	AC

Key Features

Features a Type AC tripping characteristic for detecting alternating current leakage.
Trip sensitivity of 30mA ensures rapid disconnection in fault conditions.
Compact DIN rail mounting design for simple installation without tools.
Equipped with a toggle switch reset actuator for easy manual control.
Constructed with a durable thermoplastic housing for mechanical impact resistance.
Wide operating temperature range from -25°C to +55°C suits various environments.
Electrical endurance rated for 10,000 operating cycles providing long-term reliability.
IP2X rated touch-proof protection against objects larger than 12mm enhances safety.

Product Description

ABB 2CSF202001R1400 F202 AC-40/0,03 Residual Current Circuit Breaker is designed for efficient protection against earth leakage faults in electrical circuits. It operates at a rated current of 40 amperes with 2 poles and a trip sensitivity of 30 milliamperes, employing Type AC tripping characteristics compatible for alternating current detection. This circuit breaker features a robust thermoplastic housing to safeguard against mechanical impacts and electric shock hazards, making it suitable for harsh industrial environments.

The breaker supports quick and simple DIN rail mounting, eliminating the need for additional tools and enabling easy integration into electrical panels. Its toggle switch actuator facilitates straightforward manual resetting after tripping events.

Operating effectively across a wider temperature range from -25°C to +55°C, the device ensures reliability under extreme conditions. It also boasts an electrical endurance of 10,000 operation cycles for sustained performance. The IP2X touch-proof rating provides safety against contact with objects larger than 12 millimeters.

Dimensionally compact with measurements of 85mm height, 85mm depth, and 69mm width, this breaker is a space-conscious solution for busy installations. Industrial applications include protection of motors, elevators, escalators, and electrical transmission and distribution systems.

Type AC tripping characteristic detects alternating current leakage faults. 30mA trip sensitivity provides fast earth leakage detection. Durable thermoplastic housing resists mechanical impact and electric shocks. DIN rail mounting enables quick and tool-free installation.

Toggle switch actuator allows easy manual resetting. Wide temperature range from -25°C to +55°C for versatile use. Electrical endurance rated for 10,000 operating cycles. IP2X rating provides touch-proof protection. Compact dimensions: 85mm(H) x 85mm(D) x 69mm(W).

Ideal for industrial, commercial, and residential electrical safety applications. Explore more high-quality electrical protection devices and circuit breakers suitable for diverse industrial and commercial applications on EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The circuit breaker has a current rating of 40A.

It features a trip sensitivity of 30mA, which ensures rapid disconnection in fault conditions.

The dimensions are 85mm in height, 85mm in depth, and 69mm in width.

It is designed for DIN rail mounting, allowing for quick and tool-free installation.

This circuit breaker employs Type AC tripping characteristics, suitable for detecting alternating current leakage.

It is rated for 10,000 operating cycles, providing long-term reliability.

It is constructed with a durable thermoplastic housing, which provides resistance to mechanical impacts.

It has an IP2X rating, providing touch-proof protection against objects larger than 12mm.

The operating temperature range is from -25°C to +55°C, making it suitable for various environments.

It is equipped with a toggle switch reset actuator for easy manual control after tripping.

It complies with RoHS and CE standards, ensuring safety and environmental compliance.

It is ideal for industrial, commercial, and residential electrical safety applications, including protection of motors and electrical distribution systems.
