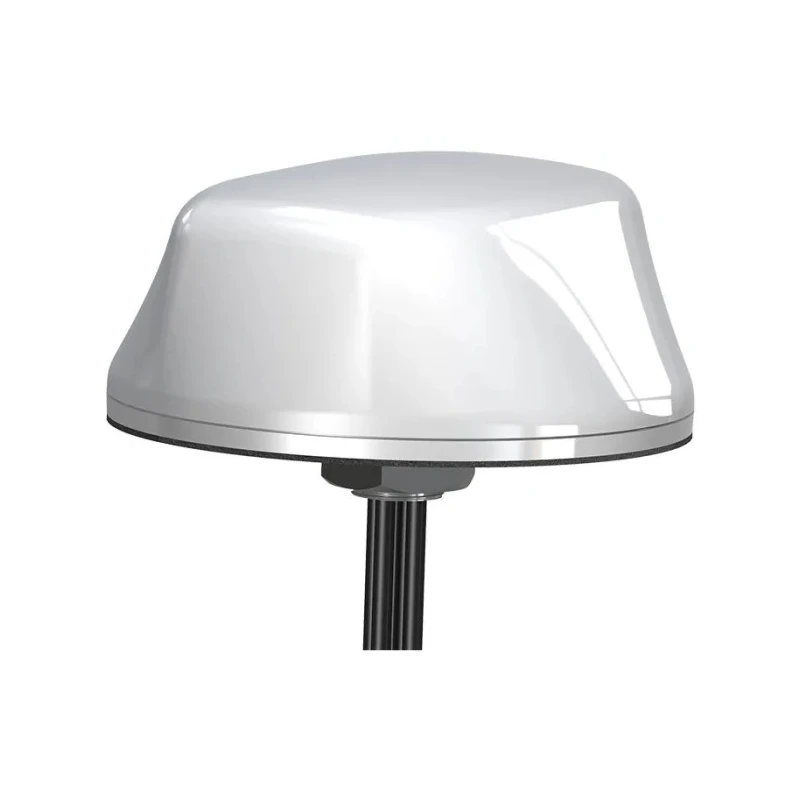

Mobilemark Dome Multi-Band Antenna with SMA, SMA RP Connector, 617 MHz to 6000 MHz, 5dBi Gain LTMWG944-A3CB3CW3JG2C-WHT-180

Mobilemark LTMWG944-A3CB3CW3JG2C-WHT-180 Dome Multi-Band Antenna is a high-performance external antenna designed to cover a broad frequency range from 617 MHz up to 6000 MHz. It supports 4G LTE, GPS, and dual-band WiFi protocols including the latest WiFi 6e standard, making it well-suited for advanced communication systems in industrial, transportation, and commercial applications.

The antenna incorporates 9 cable elements: four LTE MIMO pairs for enhanced cellular connectivity, four WiFi 6e elements to provide high data throughput, and one GNSS element supporting GPS, Galileo, Glonass, QZSS, and Beidou satellite systems. This configuration enables robust dual-carrier MIMO operation for reliable fleet management and cellular back-up networks.

Mounting is designed for through-hole or bolted installation, with a dome-shaped physical form factor optimized for external use. The antenna features SMA and SMA RP male connectors and includes a 1-foot cable pigtail exiting the antenna along with 14-foot cable jumpers to accommodate various installation needs. Each cable is color-coded to simplify matching and setup.

With 5dBi gain and omni-directional directivity, the antenna ensures reliable wireless signal reception in multiple directions, suitable for vehicular, industrial, and fixed-site applications. It complies with rigorous industry standards including IEEE1478, EN61373, MIL-810G for shock and vibration, IP67 ingress protection when correctly mounted, and TIA 329.2-C specifications, confirming its rugged design and durability.

This antenna is made in the United States, ensuring high-quality manufacturing and trusted performance. It is ideal for network operators, fleet managers, and communication integrators needing a versatile antenna solution that supports multiple wireless protocols including 4G LTE, advanced WiFi, and GNSS positioning.

Supports 9 bands including 4 LTE, 4 WiFi 6e, and 1 GNSS element. Features SMA and SMA RP connectors for robust connectivity. Provides 5dBi gain with omni-directional directivity for external mounting. Designed for through-hole or bolted antenna mounting application.

Complies with IEEE1478, EN61373, MIL-810G, IP67 (when properly mounted), and TIA 329.2-C standards. Includes 1 ft cable pigtails exiting antenna with 14 ft cable jumpers for installation flexibility. Color-coded cables ensure easy match-up during setup.

Suitable for cellular, WiFi, and GNSS fleet management and communication systems. Manufactured in the United States with high reliability and durability. Explore more multi-band antenna solutions and other RF components in the Electronics & Electricals category at EnvMart.
