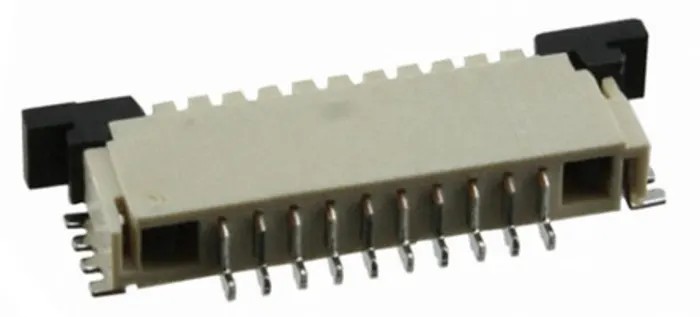

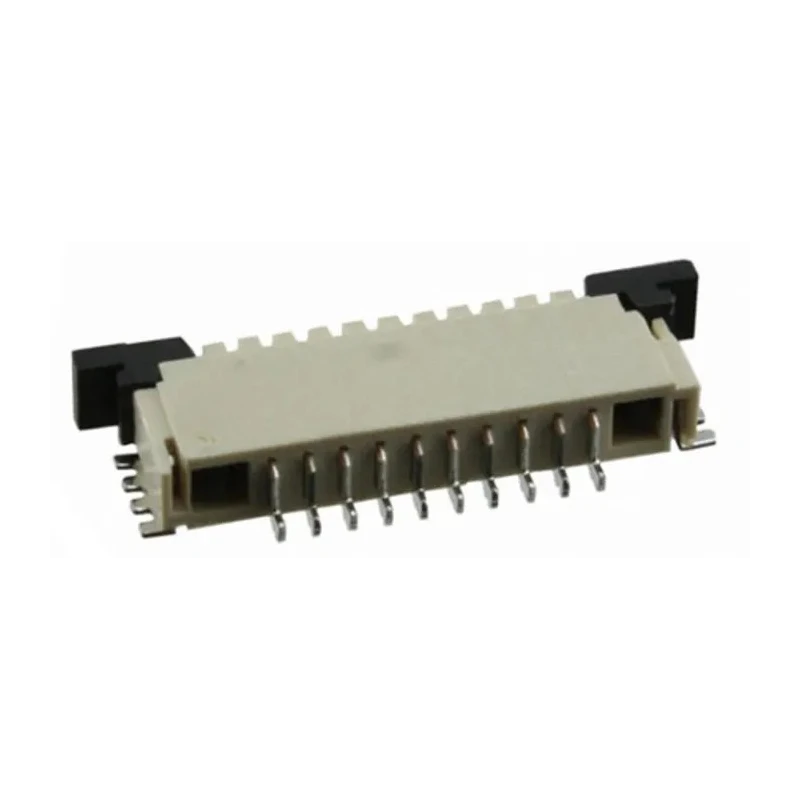

TE Connectivity FPC 1 mm Pitch 10 Way Right Angle Female FPC Connector, Solder 1-84953-0

TE Connectivity 1-84953-0 Female FPC Connector with 1 mm Pitch and 10-Way contacts is a precision electronic connector designed for compact and reliable signal routing on PCB assemblies. It features a right-angle orientation ideal for space-constrained electronic device layouts. The solder termination method offers robust mechanical and electrical connection on surface mount PCBs.

The connector uses phosphor bronze contacts with tin plating to ensure long-lasting conductivity and corrosion resistance. Its housing is fabricated from liquid crystal polymer providing excellent thermal stability and mechanical strength. The device supports voltage ratings up to 200V and current ratings up to 1A, suitable for many low-power electronics applications.

The ZIF insertion force type with a slide lock actuator makes cable installation simple and minimizes contact wear, enhancing durability and connection reliability in high vibration environments. This design also increases insertion cycles compared to non-ZIF connectors. The 10-contact, single-row connector is female gender with locking mechanisms to prevent accidental disconnections.

Operating temperature ranges from -40°C to +85°C, making it suitable for industrial, commercial, and medical equipment. Typical applications include handheld scanners, set-top boxes, personal computers and peripherals, and business equipment.

Features 10 contact positions with phosphor bronze contact material ensuring durability. Right angle orientation with top contact position optimizes PCB space. Zero Insertion Force (ZIF) design with slide lock actuator enables secure and easy FPC connection.

Contact plating is tin for reliable electrical performance. Housing is made from liquid crystal polymer for high temperature resistance. Supports voltage up to 200V and current up to 1A for safety. Operating temperature range from -40°C to 85°C for versatile use.

Female connector gender with locking mechanism for secure mating. Surface mount termination suitable for automated PCB assembly. Applicable in industrial, medical, and electronic consumer products. Explore more connectors and related products in the EnvMart electronics category for your design and manufacturing needs.
