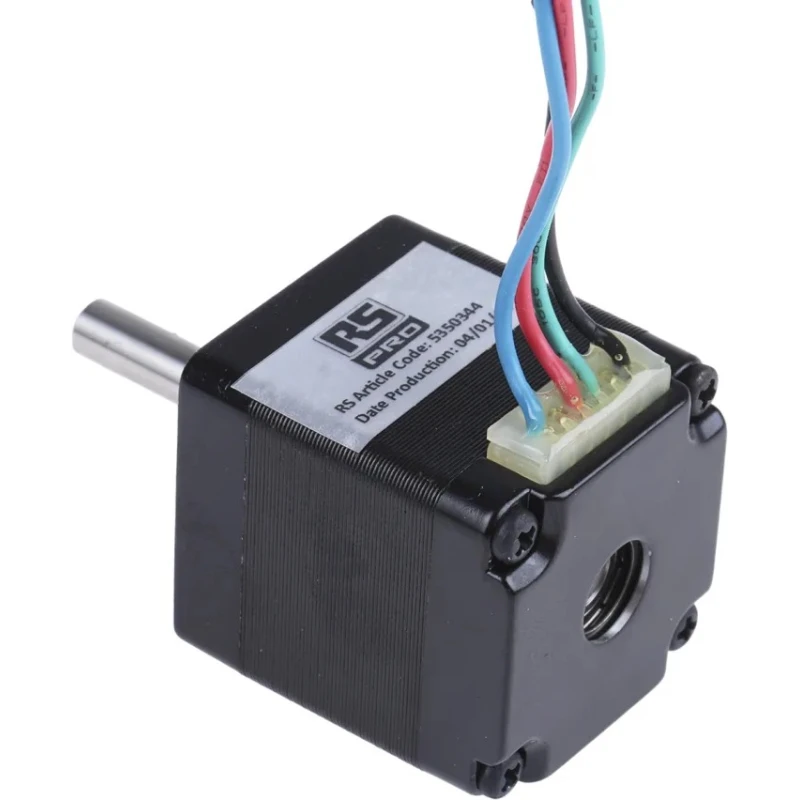

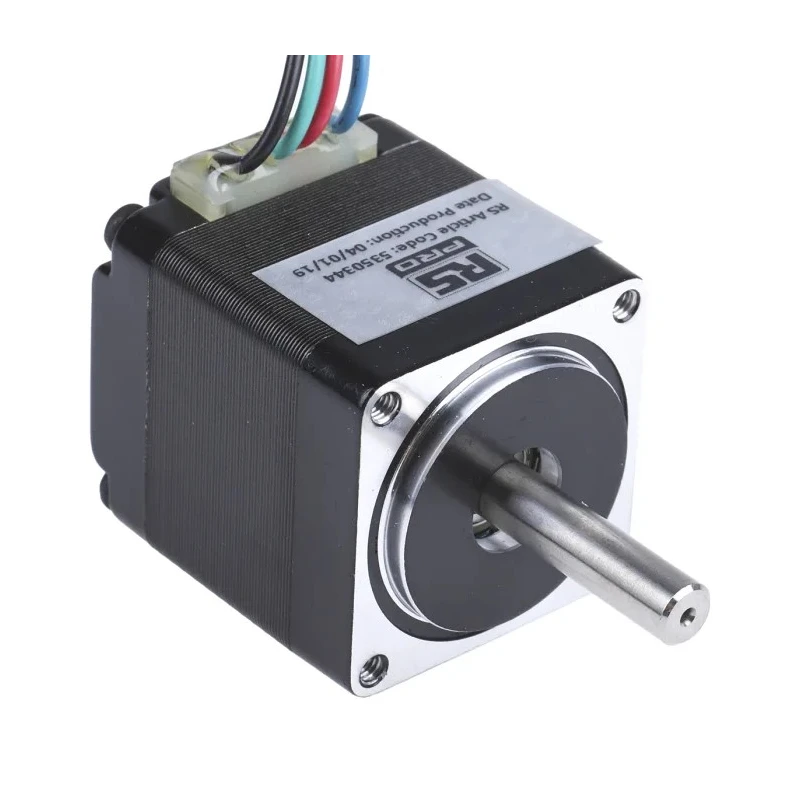

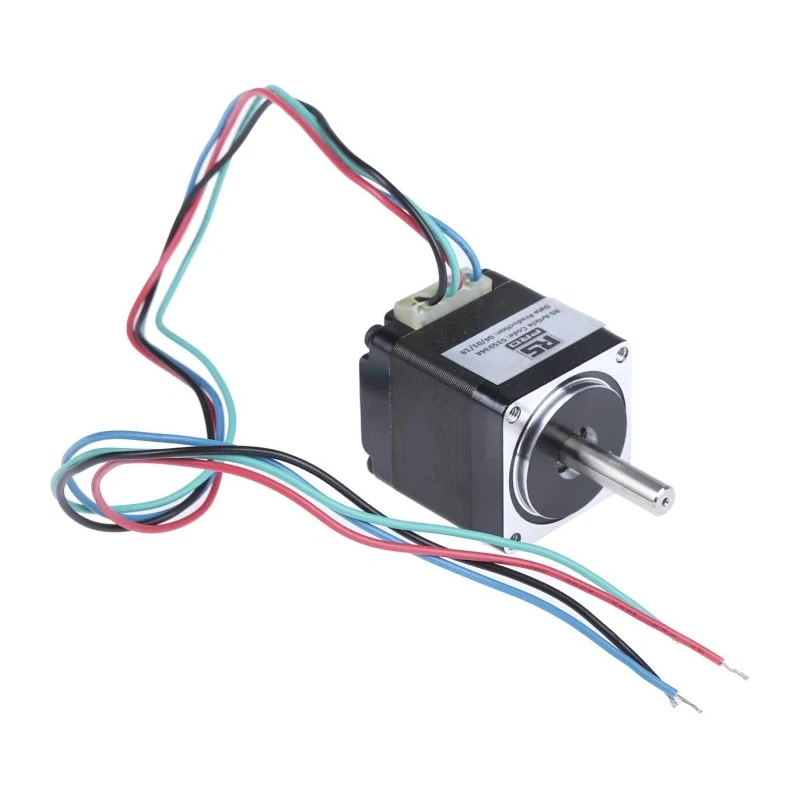

Trinamic Hybrid Stepper Motor 3.8V, 60mNm Holding Torque, 1.8° Step Angle, 28 x 28 mm Frame Size, 5 mm Shaft 535-0344

RS PRO 535-0344 is a hybrid stepper motor designed for applications that require precise and controlled motion, operating at 3.8 volts with a holding torque of 60mNm and a step angle of 1.8 degrees. Its compact 28 x 28 mm frame size and 5 mm shaft diameter make it ideal for integration into industrial automation systems, robotics, and instrumentation where space optimization and accuracy are critical.

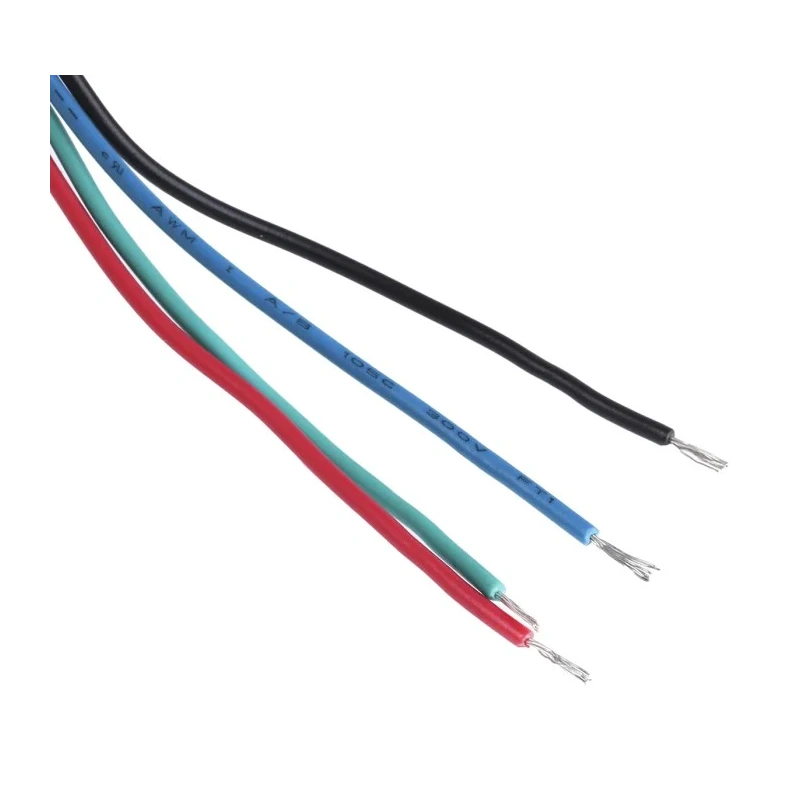

This stepper motor utilizes a combination of permanent magnet and variable reluctance technologies, providing high efficiency at low speeds and reliable performance. The four-wire bipolar winding arrangement supports precise control, with a current rating of 670mA and a resistance per phase of 5.6 ohms. The motor features a shaft length of 22 mm and offers output speeds up to 186 rpm with a detent torque of 5mNm.

RS PRO 535-0344 is rated IP54 and IP65 for dust and water resistance, making it suitable for use in demanding industrial environments. It complies with RoHS directives, ensuring environmentally responsible manufacturing. Typical applications include 3D printers, camera equipment, DVD players, lasers, optics, linear actuators, rotation stages, and goniometers.

Engineers trust RS PRO products for their rigorous testing and quality assurance, guaranteeing product durability and longevity. This hybrid stepper motor is a versatile solution for automation, manufacturing, and laboratory equipment requiring precise and reliable motor control.

This hybrid stepper motor features a 1.8° step angle for high positional accuracy. The motor frame size measures 28 x 28 mm, suitable for space-constrained setups. Engineered with a 5 mm diameter shaft and 22 mm shaft length for robust mechanical coupling.

Supports both unipolar and bipolar winding arrangements with a current rating of 670mA. Offers an output speed of 186 rpm with a holding torque of 60mNm and detent torque of 5mNm. Designed with IP54 and IP65 ratings, ensuring protection against dust and water intrusion.

Complies with RoHS standards, minimizing hazardous substances in manufacturing. Depth and width are 32 mm and 28 mm respectively, maintaining compactness. Resistance per phase is 5.6 ohms, optimizing electrical performance.
